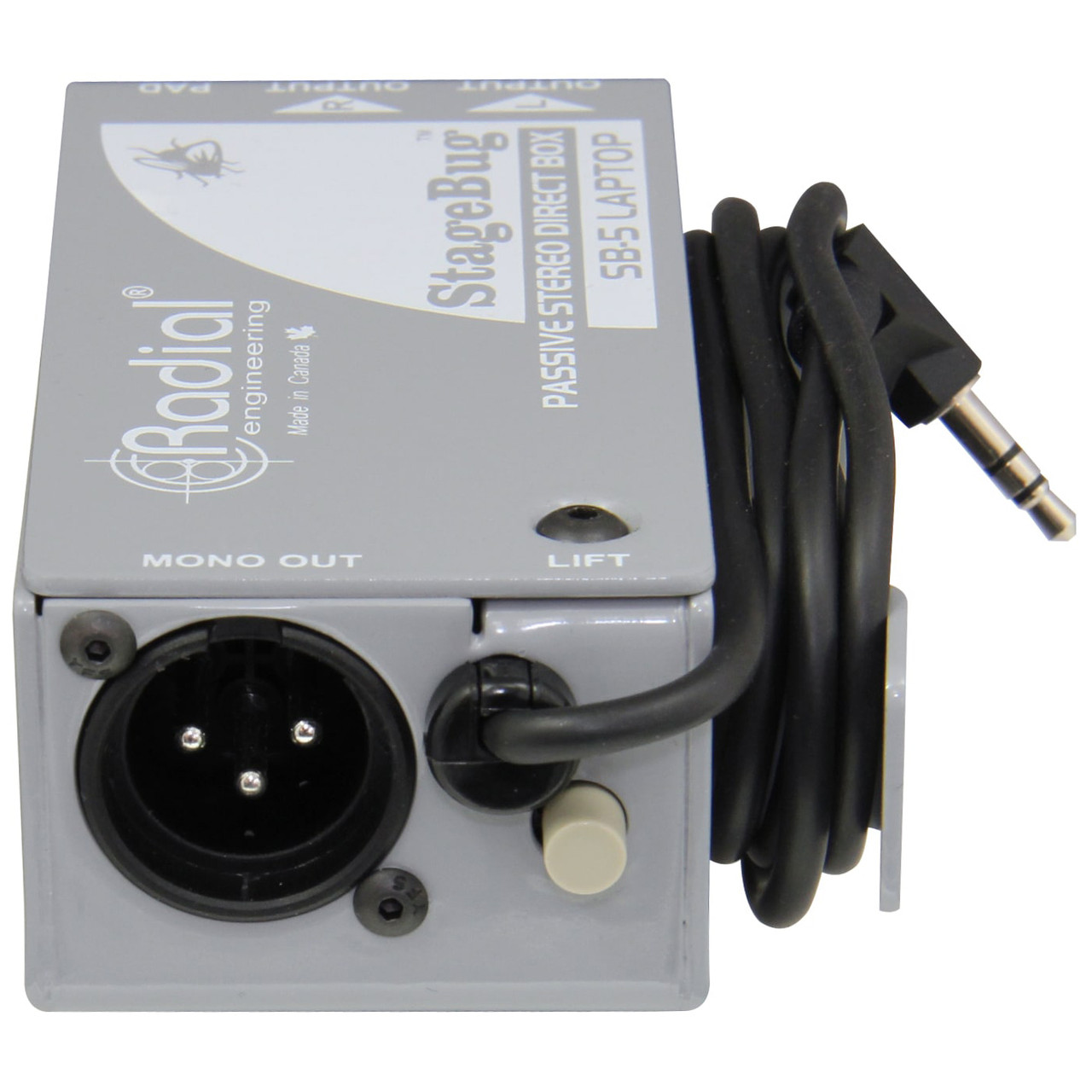

The Radial StageBug SB-5 Laptop Direct Box is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA system.
The StageBug SB-5 provides an easy to use professional interface for connecting any mobile playback device to a mixer or PA system, with a built-in cable and 3.5mm stereo plug to connect directly to your laptop, smartphone, or tablet. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. Left and right 1/4" TRS outputs are provided for stereo operation, or a mono XLR output can be used to save channels on the PA system. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources. These features combine to make the Radial StageBug SB-5 Laptop Direct Box the perfect tool-kit DI for the AV technician, media manager or traveling musician equipped with a computer.
Radial StageBug SB-5 Laptop Direct Box Features
- Stereo direct box for laptops, smartphones, and tablets
- Cable with 3.5mm stereo plug to connect to mobile devices
- Transformer isolation eliminates hum and buzz
- Plug & play easy to use, no power required
- Compact design fits in your laptop bag
Radial StageBug SB-5 Laptop Direct Box Applications
- Using the SB-5 with a computer - Connect the headphone output from your computer directly into the Radial StageBug SB-5 for quiet performance each time. The sidewinder cable cleat makes storage easy and you never lose the cable!
- Using the SB-5 with a tablet - The Radial StageBug SB-5 is your perfect direct box when extra portability is needed. Connect your iPad or Galaxy tablet to the Radial StageBug SB-5 via the integral 3.5mm cable connection and sum to mono via the XLR output.
- Using the SB-5 with an iPhone - Need to play backing tracks in stereo? The Radial Stage Bug SB-5 makes it easy to connect from your portable music player. Connect from the headphone out to the Radial StageBug SB-5 and send a balanced stereo signal to the PA.
Radial StageBug SB-5 Laptop Direct Box Specifications
- Technical Specs:
- Audio Circuit Type: Passive, transformer based
- Number of Channels: Two channels, mono or stereo outputs
- Frequency Response: 20Hz ~ 20KHz (± 1dB)
- Dynamic Range: 100dB
- Maximum Input: +20dB
- Total Harmonic Distortion: 0.01% @ 1kHz
- Phase Deviation: 2° @ 100Hz; 5° @ 50Hz
- Input Impedance: 40k Ohms, unbalanced
- Output Impedance: 2.8k Ohms, balanced
- Features:
- Transformer: Custom design
- Input Pad: -10dB
- Auto Merge: Sums left & right sources to mono at XLR
- Ground Lift: Disconnects pin-1 at 1/4" TRS outputs
- XLR Configuration: AES standard (pin-2 hot)
- Input Connector: 3.5mm (1/8") integrated 1.5m (5') cable
- Output Connectors: 1/4" TRS stereo / XLR-M mono merge
- General:
- Construction: 14 gauge steel chassis & outer shell
- Finish: Durable powder coat
- Size: (L x W x D) 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
- Weight: 0.55 lbs (250 grams)
Radial StageBug SB-5 Laptop Direct Box Includes
- Radial StageBug SB-5 Laptop Direct Box
- User Guide
- Manufacturer Warranty
