Speaker Cables at Front End Audio

Speaker Cables carry an amplified signal between a power amplifier and a passive loudspeaker, so they have a very different job from microphone, instrument and standard line-level interconnect cables. Front End Audio carries professional Speaker Cables for passive Studio Monitors, PA speakers, guitar and bass cabinets and other amplified speaker systems, with 1/4-inch, SpeakON and banana configurations available for different types of equipment. Choosing the right cable comes down to more than finding connectors that fit. Cable gauge, length, connector type and the power being delivered through the cable all matter, especially on longer runs or higher-powered systems. A properly chosen speaker cable should provide a reliable connection between amplifier and loudspeaker without becoming the weak point in the system.

Choosing the Best Speaker Cable for a Power Amplifier and Passive Speakers

The best speaker cable for a particular system starts with the amplifier, loudspeaker and distance between them. Unlike a low-level audio interconnect, a speaker cable has to carry the power produced by the amplifier, which is why heavier conductors are commonly used. Longer cable runs generally make conductor gauge more important because resistance increases with length, so a cable that works perfectly for a short studio-monitor connection may not be the best choice for a long PA run. Connector type also needs to match the hardware at both ends. If you are building a passive studio-monitor system, our Studio Amplifiers and passive monitors provide the other major pieces of that signal path. For live systems, dedicated Power Amplifiers may require considerably longer and more rugged cabling depending on where the speakers are positioned.

SpeakON, 1/4-Inch and Banana Speaker Cables: Which Connector Do You Need?

Speaker connections commonly use SpeakON, 1/4-inch TS or banana connectors, and the correct choice is determined by the amplifier and loudspeaker rather than personal preference alone. SpeakON connections are widely used in professional sound systems because the connector locks securely into place and is designed specifically for speaker-level applications. Quarter-inch speaker connections remain common on guitar cabinets, older PA equipment and some studio hardware, while banana plugs are frequently found on amplifiers and passive speaker systems using binding-post terminals. Front End Audio's current Speaker Cables selection includes 1/4-to-1/4, banana-to-SpeakON and 1/4-to-banana configurations, making it possible to connect systems where the amplifier and speaker use different connector types. Before ordering, check both ends of the system and confirm the exact connector required rather than assuming all speaker outputs use the same format.

Speaker Cable vs. Instrument Cable: Why They Are Not Interchangeable

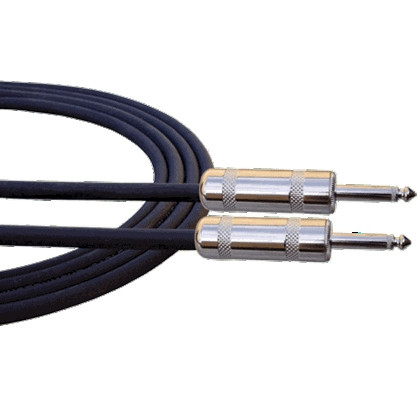

A 1/4-inch speaker cable and a 1/4-inch Instrument Cable may look nearly identical from the outside, but they are designed for very different signals. Instrument cables carry relatively low-level, high-impedance signals from guitars and basses and are normally shielded to help protect that signal from interference. Speaker cables carry the much higher-power output of an amplifier and use heavier conductors designed for that load. Using the correct cable type is particularly important between a power amplifier and passive loudspeaker or guitar cabinet. If a cable came out of a random drawer and you are not sure whether it is an instrument or speaker cable, identifying it before connecting the amplifier is worth the extra minute.

Speaker Cable Gauge and Length for Studio and Live Sound Systems

Speaker cable gauge and length should be considered together. As a cable run becomes longer, conductor resistance becomes more significant, which is why heavier-gauge speaker cable is commonly used for longer distances and higher-powered systems. A short connection between a studio amplifier and nearby passive monitors has very different requirements from a 50- or 100-foot run to a PA loudspeaker across a venue. Front End Audio's current assortment includes 14-gauge speaker cables from RapcoHorizon in lengths reaching 100 feet, making the brand a particularly relevant option for larger or live-sound installations. The goal is not simply to buy the thickest cable available, but to choose a gauge and length appropriate for the amplifier, speaker impedance, power and physical distance involved.

Mogami, RapcoHorizon and Colossal Cable Speaker Cables

Mogami, RapcoHorizon and Colossal Cable represent three purposeful choices within Front End Audio's current Speaker Cables assortment. Mogami's Gold Speaker Cables provide premium short-run options that make particular sense around studio racks, amplifiers and passive monitoring systems. RapcoHorizon has a much broader range of 14-gauge speaker cables in multiple lengths and connector combinations, including 1/4-inch, banana and SpeakON configurations that work well for larger systems and live applications. Colossal Cable takes a premium approach with its Colossus Speaker Cable for customers building higher-end studio or listening systems. The useful distinction is not simply brand reputation; each line serves a somewhat different combination of length, connector, construction and budget requirements.

Speaker Cables for Passive Studio Monitors and Professional Monitoring Systems

Passive studio monitors require a separate amplifier, which means the speaker cable becomes part of the monitoring chain between the Studio Amplifier and loudspeaker. That is different from most Active Studio Monitors, where the amplifier is built into the speaker and the connection from the interface or monitor controller is typically a line-level interconnect rather than a speaker cable. If you are putting together a passive monitoring system, it is worth considering amplifier compatibility, cable length and speaker placement as one complete system instead of buying each component independently. Front End Audio has been helping studios build professional monitoring systems since 2003, and our non-commissioned team can help you determine which speaker cable, connector and length makes sense for the equipment you are using. Give us a call at 888-228-4530 if you want to make sure the amplifier, monitors and cabling are properly matched.
