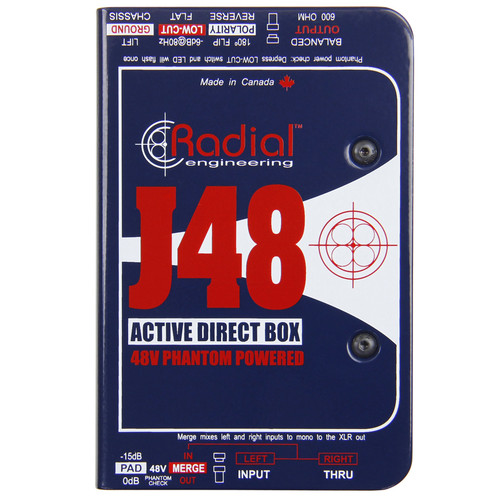

The Radial J48 Active Direct Box is a high performance active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.
Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes that are only able to handle about 3 Volts. The J48 uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through. The Radial J48 - The world's finest 48V phantom powered active direct box.
Radial J48 Active Direct Box Features
- Exceptional headroom & dynamic range
- Retains the natural sound of the instrument
- Merge switch sums stereo instruments to mono
- Powered by 48V phantom, no batteries required
Radial J48 Active Direct Box Applications
- J48 for Live Touring - A direct box is primarily used to get an instrument signal from the stage to the mixing desk and PA system. The Radial J48 delivers the natural tone exceptionally long distances without adding distortion or coloring the sound in any way.
- J48 in the Studio - When recording direct, the quality of the direct box interface assures the purest signal going to the track. The Radial J48 is particularly well suited for recording bass or capturing a direct track from a guitar.
- Reamping with the J48 - Reamping means sending a dry track from the recorder back out to pedals and amps. This tricks has been used for years by top professionals. The Radial J48 is ideally suited to capture the sound of the instrument for later Reamping.
Radial J48 Active Direct Box Specifications
- Type: Active 48V with switching supply
- Input Impedance: Unbalanced 220K-Ohms
- Output Impedance: Balanced 600-Ohms
- Frequency Response: 10Hz to 80kHz
- Linear Performance: +/- 0.12dB from 20Hz to 20kHz
- Total Harmonic Distortion: 0.06% @ 20Hz, 0.005% @ 1kHz
- Phase Distortion: 0.02º at 1kHz
- Maximum Input Voltage: 3.12 Volts RMS ( 9V peak )
- Size: 3.5" wide, 2" high, 5.5" deep
- Weight: 1kg or 2lbs
- Construction: Welded 14-gauge steel
- Finish: Baked enamel coat
Radial J48 Active Direct Box Includes
- Radial J48 Active Direct Box
- User Guide
- Manufacturer Warranty
