Josephson C715 Microphone

(No reviews yet) Write a Review
Product Code: 1392
Josephson C715
$4,070.00
Availability: Usually Ships in 24 Hours

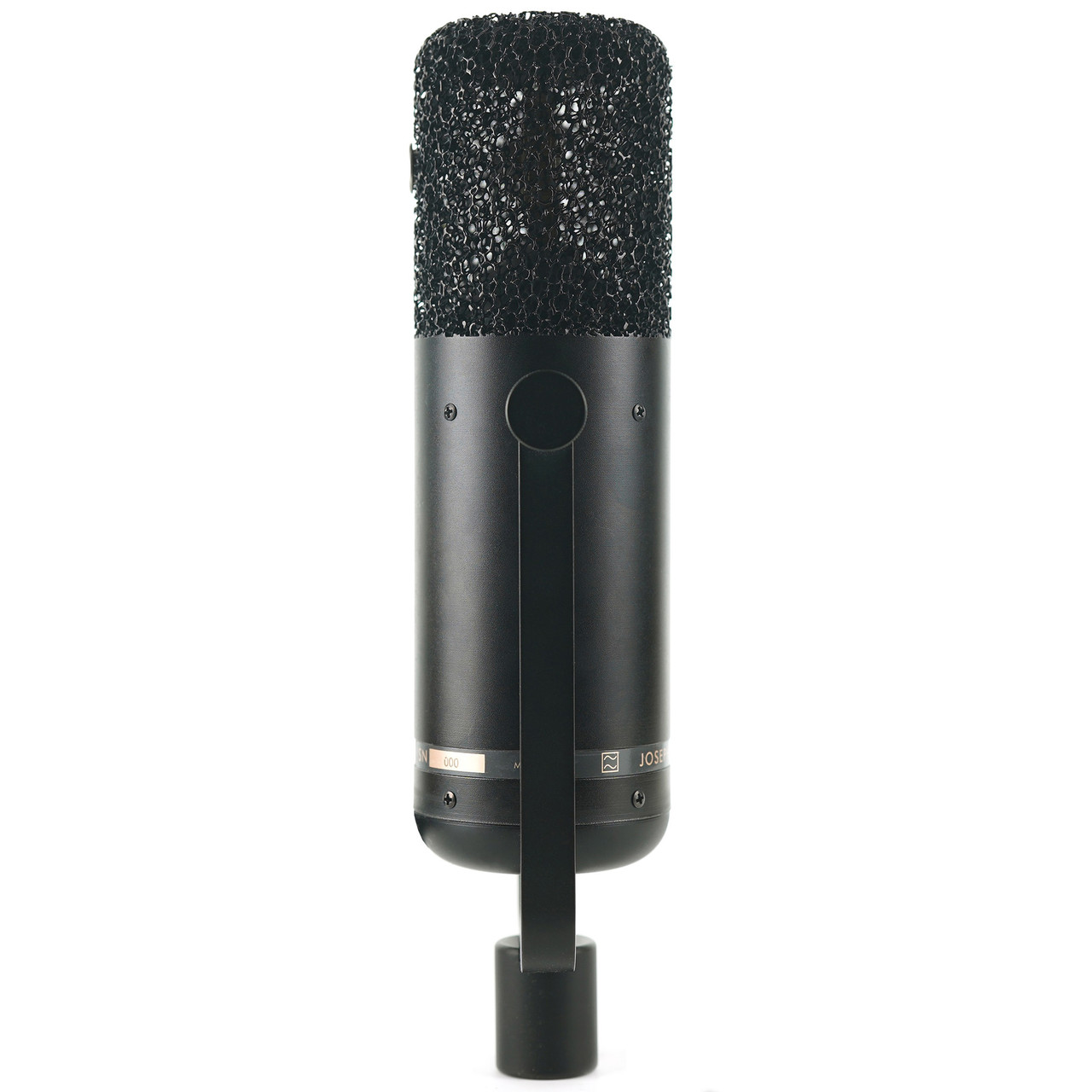

Josephson C715 Microphone

The Josephson C715 Microphone uses a unique single large diaphragm capsule with an adjustable vent allowing cardioid or omni operation, and includes a new, metal foam housing for minimum acoustic coloration due to the elimination of many internal reflecting surfaces.

The Josephson C715 features the new single-sided capsule with a 5 micron evaporated gold diaphragm. The backplate has an adjustable vent, reached through an opening in the back of the grille, that allows the mic to be adjusted from cardioid to omni. The single diaphragm capsule has a particularly smooth sound, usable for many studio applications where some conventional dual diaphragm mics are too harsh or bright.

The internal circuitry uses a class-A cascode FET front end, driving a large nickel core Lundahl output transformer for compatibilty with a wide range of preamps and consoles. The internal high voltage linear supply generates capsule polarization voltage without using a switching oscillator, for very low noise.

The capsule assembly in the Josephson C715 is internally shock mounted so that the mic may be attached directly to a stand through its rugged yoke mount, without using any external accessories

Josephson C715 Microphone Specifications

  • Frequency Range: 20-20,000 Hz
  • Sensitivity: -55 dB ref 1V/Pa (1.8 mV/Pa)
  • Equivalent Noise Level: <19 dB SPL, A weighted rms
  • Overload Sound Level: 140 dB SPL
  • Power Supply: P48 phantom, 2 mA
  • Diameter: 63 mm (100 mm wide at yoke), length 261 mm
  • Weight: 1.2 kg
  • Output Connector: 3-pin XLR

Josephson C715 Microphone Includes

  • C715 Microphone
  • Pelican Hard Case
  • 5 Year Warranty
