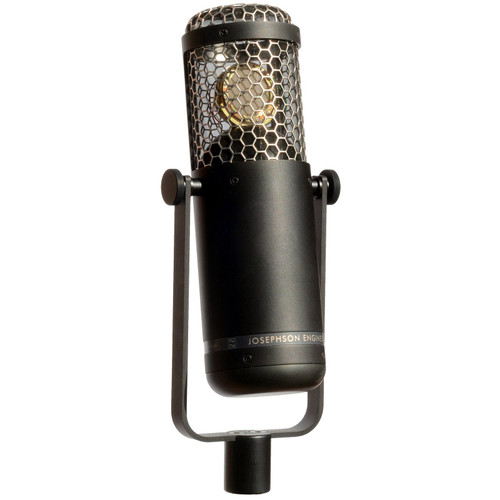

The Josephson C706 Studio Microphone delivers the refined clarity, depth, and realism engineers expect from Josephson Engineering, wrapped in a rugged, studio-ready design built for decades of professional use.
Drawing from the acclaimed Series Seven lineage, the C706 combines a smooth, extended high end with a detailed midrange and controlled proximity effect, making it an exceptionally versatile large-diaphragm condenser for vocals, instruments, and ensemble recording. At the heart of the C706 is a large-diameter, dual-diaphragm cardioid capsule featuring 5-micron gold-metallized diaphragms and precision-machined internal surfaces. Paired with Josephson’s discrete FET cascode input stage and active transformerless output circuit, this design delivers low noise, wide dynamic range, and consistent performance across a broad range of mic preamps thanks to its low output impedance. Whether capturing intimate vocals or complex acoustic sources, the C706 maintains a natural, uncolored sound with excellent transient detail.
Engineered For Durability
The C706’s case-hardened steel housing is engineered for sonic performance as much as durability. Its unique offset grille support structure minimizes internal reflections, reducing the harshness often associated with large-diaphragm microphones. An internally shockmounted capsule assembly allows the microphone to mount directly to a stand via its integrated yoke, eliminating the need for an external shock mount while ensuring mechanical isolation. Finished in a rugged black hardened coating, the C706 is equally at home in high-end studios and demanding stage environments.
Josephson C706 Microphone Features
- Large-diaphragm dual-diaphragm cardioid condenser design
- Smooth extended high frequencies with detailed, natural midrange
- Controlled proximity effect for consistent vocal and instrument capture
- Discrete FET cascode input circuit with transformerless balanced output
- Low output impedance for compatibility with a wide range of preamps
- Offset grille structure reduces internal reflections and harshness
- Internally shockmounted capsule with integrated yoke mount
- Rugged case-hardened steel housing for long-term studio and stage use
Josephson C706 Microphone Specifications
- Transducer Type: Pressure-gradient condenser microphone
- Polar Pattern: Cardioid
- Frequency Range: 20 Hz – 20,000 Hz
- Sensitivity: 26 mV/Pa
- Equivalent Noise Level: <15 dB SPL, A-weighted
- Maximum SPL: 130 dB SPL
- Power Requirement: P48 phantom power, 6 mA
- Output Connector: 3-pin XLR
- Diameter: 63 mm (100 mm wide at yoke)
- Length: 261 mm
- Weight: 1.2 kg
Josephson C706 Microphone Includes
- Josephson C706 Microphone
- Integrated Yoke Mount
- Manufacturer Warranty
