Triton Audio BigAmp Piezo Direct Box

Triton Audio

(No reviews yet) Write a Review
Product Code: 2164
$74.95
Adding to cart… The item has been added
In Stock

This item is in stock and will ship the same day if ordered prior to 3pm EST Monday - Friday. Otherwise, it will ship the next business day.

Got Questions? Need Support?

888-228-4530 Contact Us!

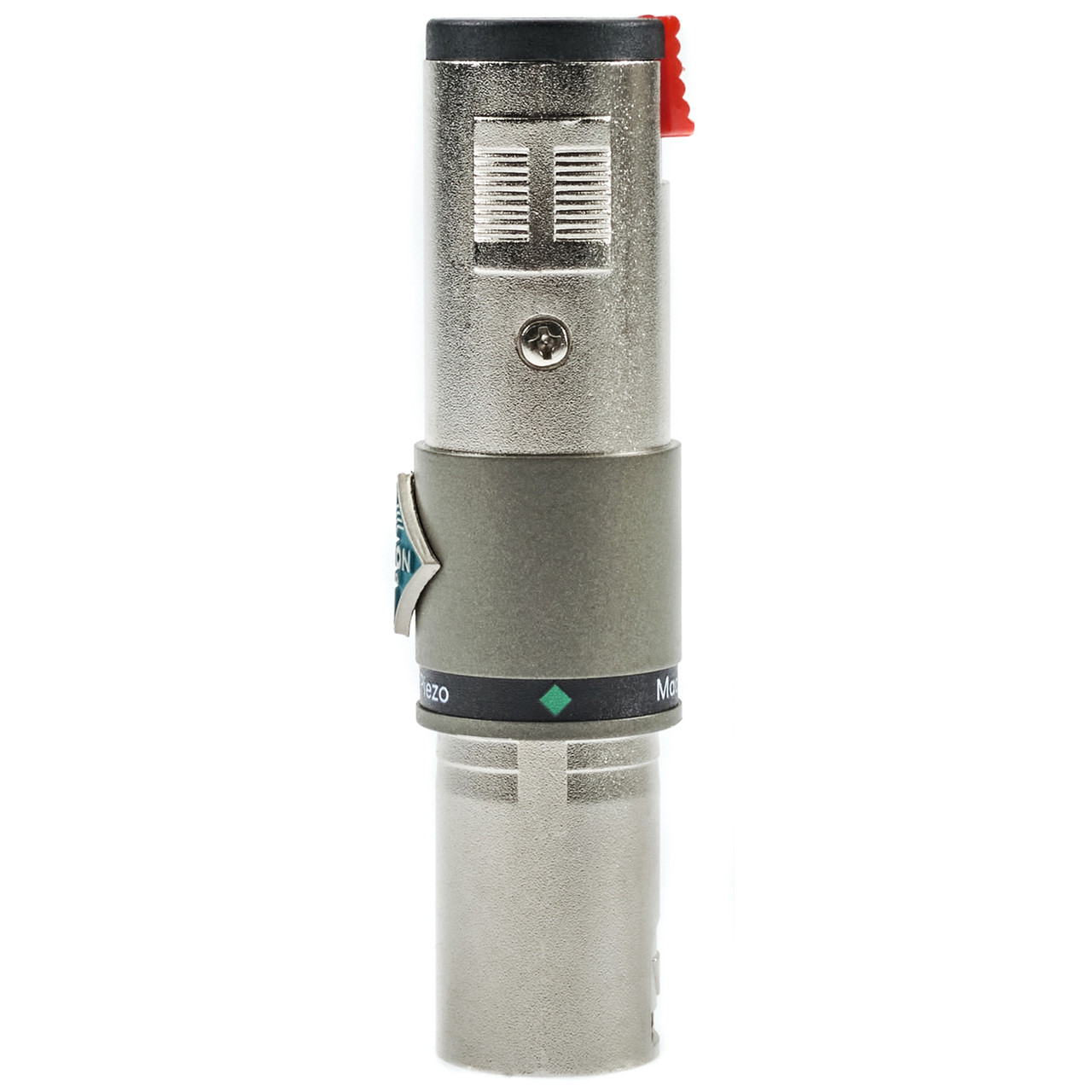

The Triton Audio BigAmp Piezo Direct Box is a small sized, high quality jfet instrument preamp which performs equally well on stage as it does in a studio environment.

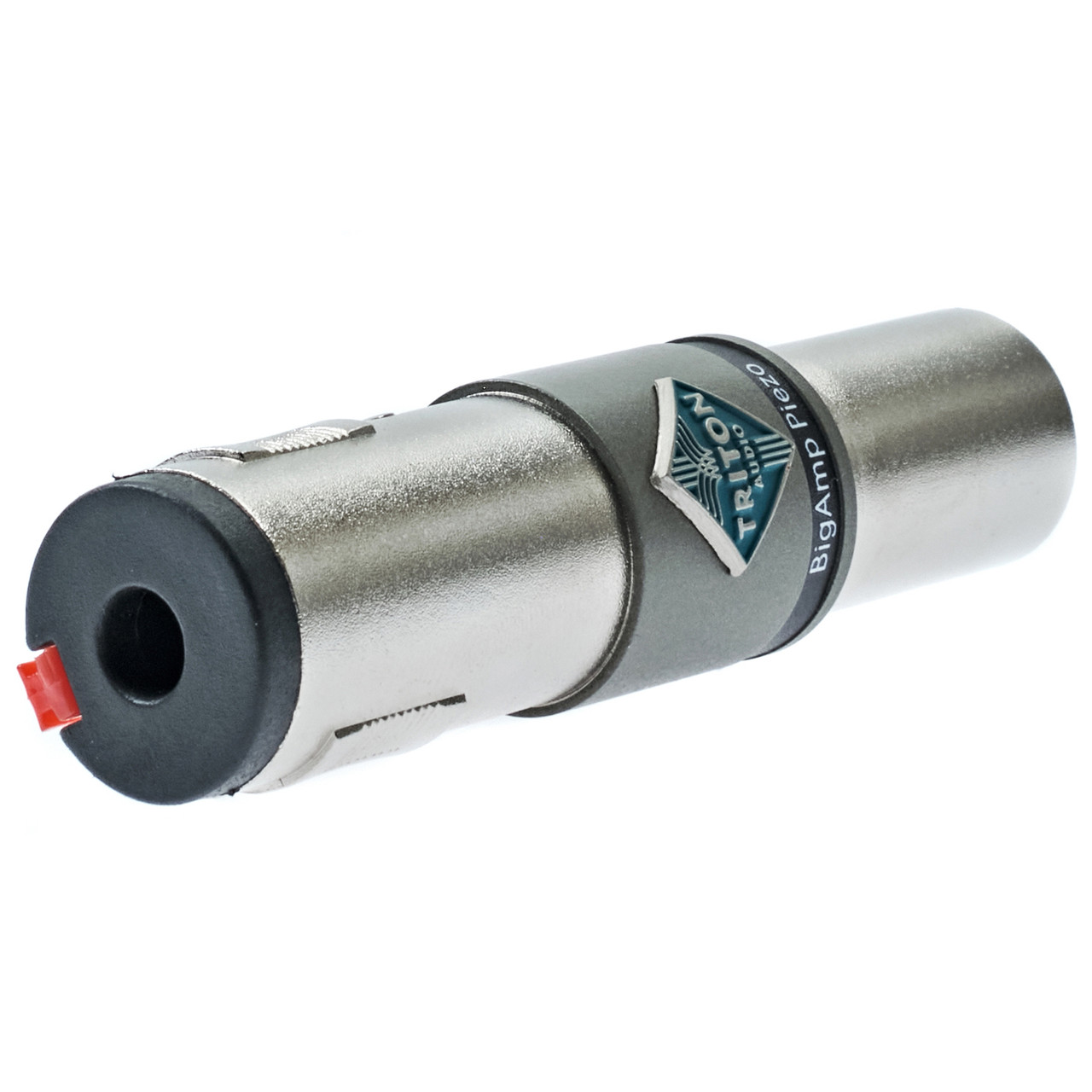

The BigAmp Piezo has a 1/4" female jack input. BigAmp's low noise class A amplifier provides high end amplification and converts the instrument output signal from unbalanced to balanced. A piëzo transducer typically has an impedance of several Mega Ohms, which is much higher compared to the high-Z input of instrument preamps or mixing consoles. This prevents the transducer to deliver its potential output signal to the preamp and restricts transient response. Additionally, the high impedance combined with the capacity of the cable to the preamp forms a low pass filter, making a piëzo transducer often sound uninspiring. BigAmp Piëzo is a BigAmp version specially designed to overcome above issues. It has a 7.5 Mega Ohms input Impedance, which enables the piëzo transducer to deliver its full potential. Signal amplification is low (3dB) to allow for the highest possible headroom. Because of its small size BigAmp piëzo can be connected as close to the transducer as possible which keeps cable capacitance to a minimum. With the Triton Audio BigAmp Piezo you can bring your own high quality DI everywhere. No hassle with batteries because BigAmp's circuit is powered with 24v/48v phantom power. The small form factor combined with the ease of use makes that every touring musician should have a BigAmp in their case or gigbag.

Triton Audio BigAmp Piezo Direct Box Features

  • High end, In-line instrument preamp
  • A small sized high quality jfet instrument preamp
  • 24-48 v phantom power

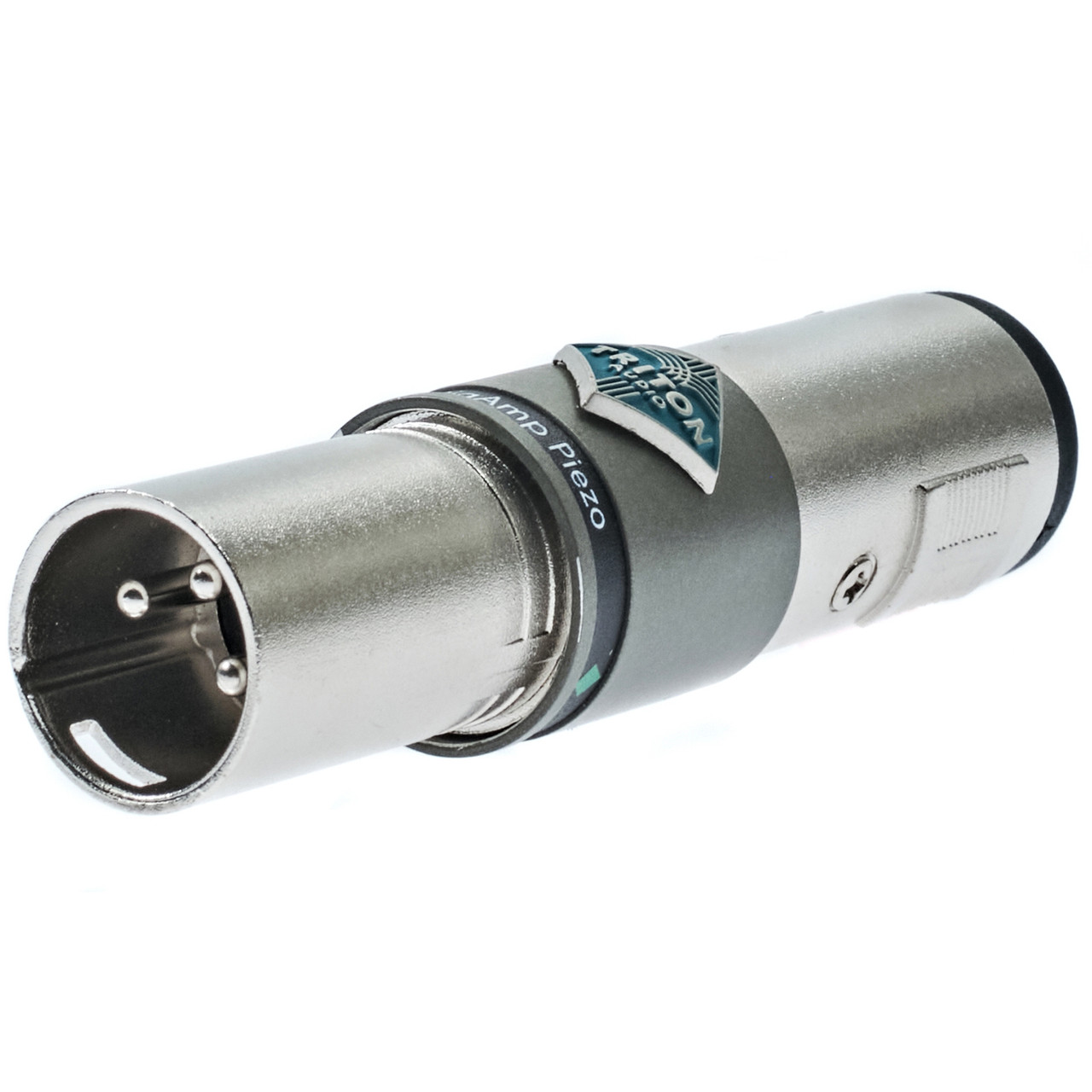

  • Balanced output
  • Max input level 15 dBv

Triton Audio BigAmp Piezo Direct Box Specifications

  • Input impedance: 7.5MOhm
  • Low noise Class A JFet amplifier
  • 24-48 v phantom power
  • 3db amplification
  • Balanced output

Triton Audio BigAmp Piezo Direct Box Includes

  • Triton Audio BigAmp Piezo Direct Box Box
  • Carry Pouch
  • Manufacturer Warranty
