Front End Audio has a fantastic deal on this factory direct B-Stock unit, and stock is limited! Radial quality control has deemed this as "B-Stock" so expect a minor cosmetic flaw or blemish. But, rest assured that this will have absolutely no impact on the functionality or performance of this unit. Radial fully inspects and tests every B-Stock product AND they are covered by a full manufacturer warranty. This is your opportunity to grab a great deal on an otherwise "just like new" X-Amp from Radial!

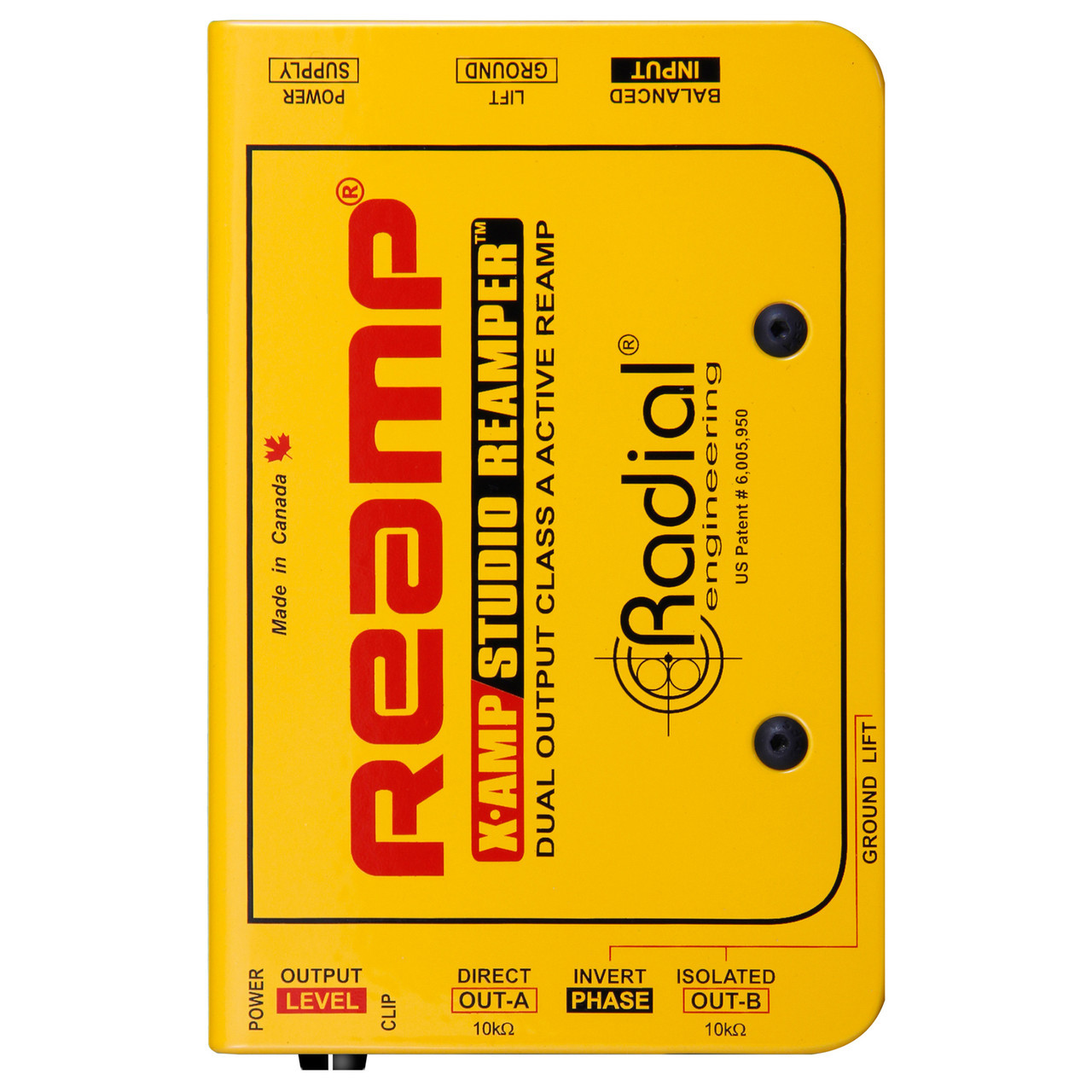

The Radial X-Amp Re-Amping Box is a studio-standard active reamping solution designed to deliver pristine tone, massive headroom, and total control when sending recorded tracks back to guitar amps, pedals, or instrument-level gear. Trusted in top studios around the world, the X-Amp allows engineers and producers to reintroduce real-world amp feel, dynamics, and character into their mixes—without noise, signal loss, or tonal compromise. Whether you’re refining guitar tones, experimenting with pedals, or reamping synths and bass, the X-Amp ensures your signal hits the amp exactly as intended. Built around a high-performance Class-A active circuit, the X-Amp provides two independent, transformer-isolated outputs with exceptional clarity and punch. Level controls on each output allow precise gain staging, while polarity reverse and ground-lift switches ensure perfect phase alignment and hum-free operation. Designed to be driven directly from professional line-level outputs, the X-Amp integrates seamlessly into any modern recording workflow, delivering reliable, repeatable reamping results with Radial’s legendary build quality.
Radial X-Amp Re-Amping Box Features
- Professional active reamping box for sending line-level signals to instrument-level gear
- Class-A active circuitry for maximum headroom, clarity, and dynamic response
- Two independent outputs for driving multiple amps or signal chains simultaneously
- Transformer isolation on outputs for noise-free, hum-free operation

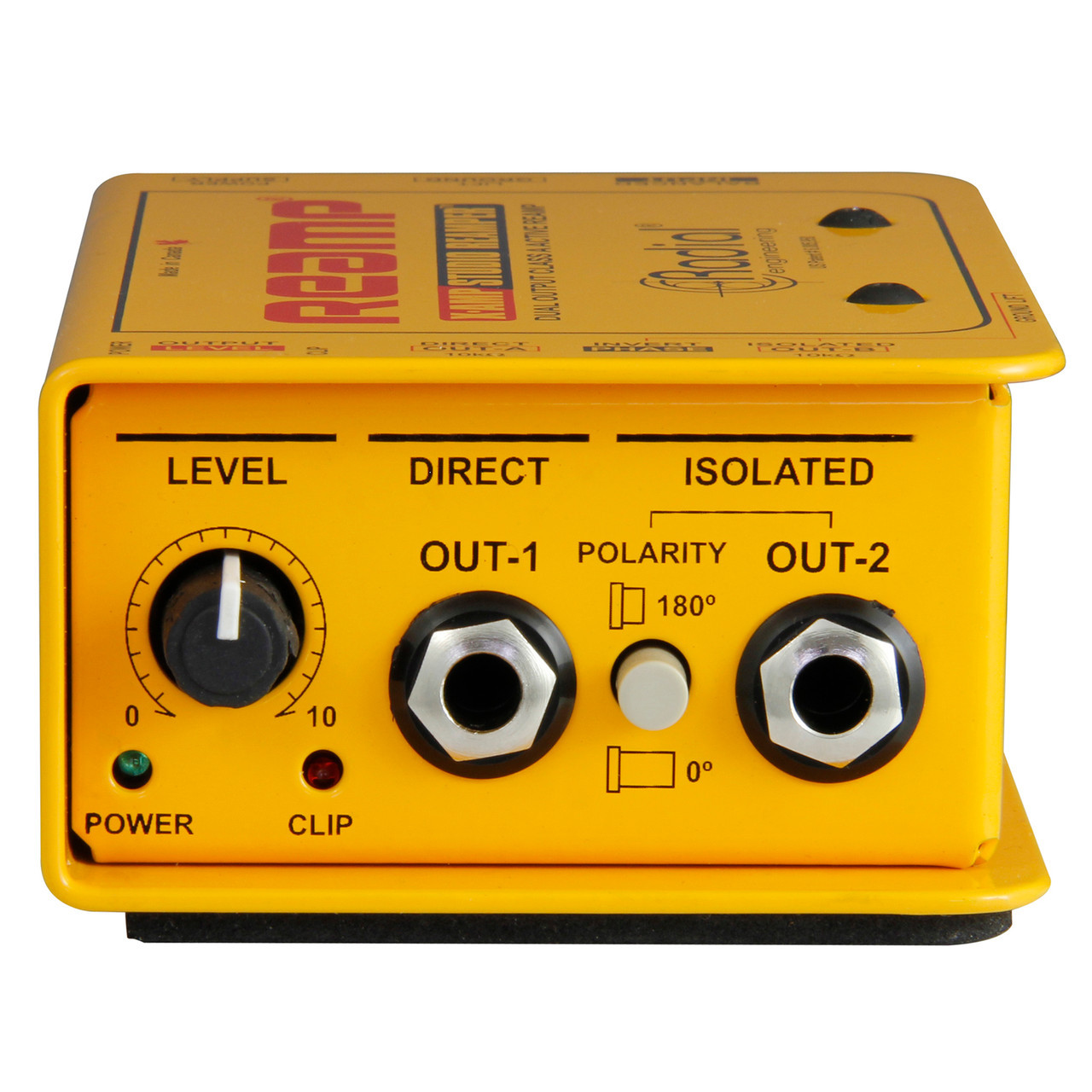

- Individual output level controls for precise gain staging
- Polarity reverse switch for proper phase alignment between amps
- Ground-lift switches eliminate ground-loop hum and buzz
- Ideal for reamping guitars, bass, synths, pedals, and outboard effects
- Rugged Radial steel enclosure built for studio and touring use

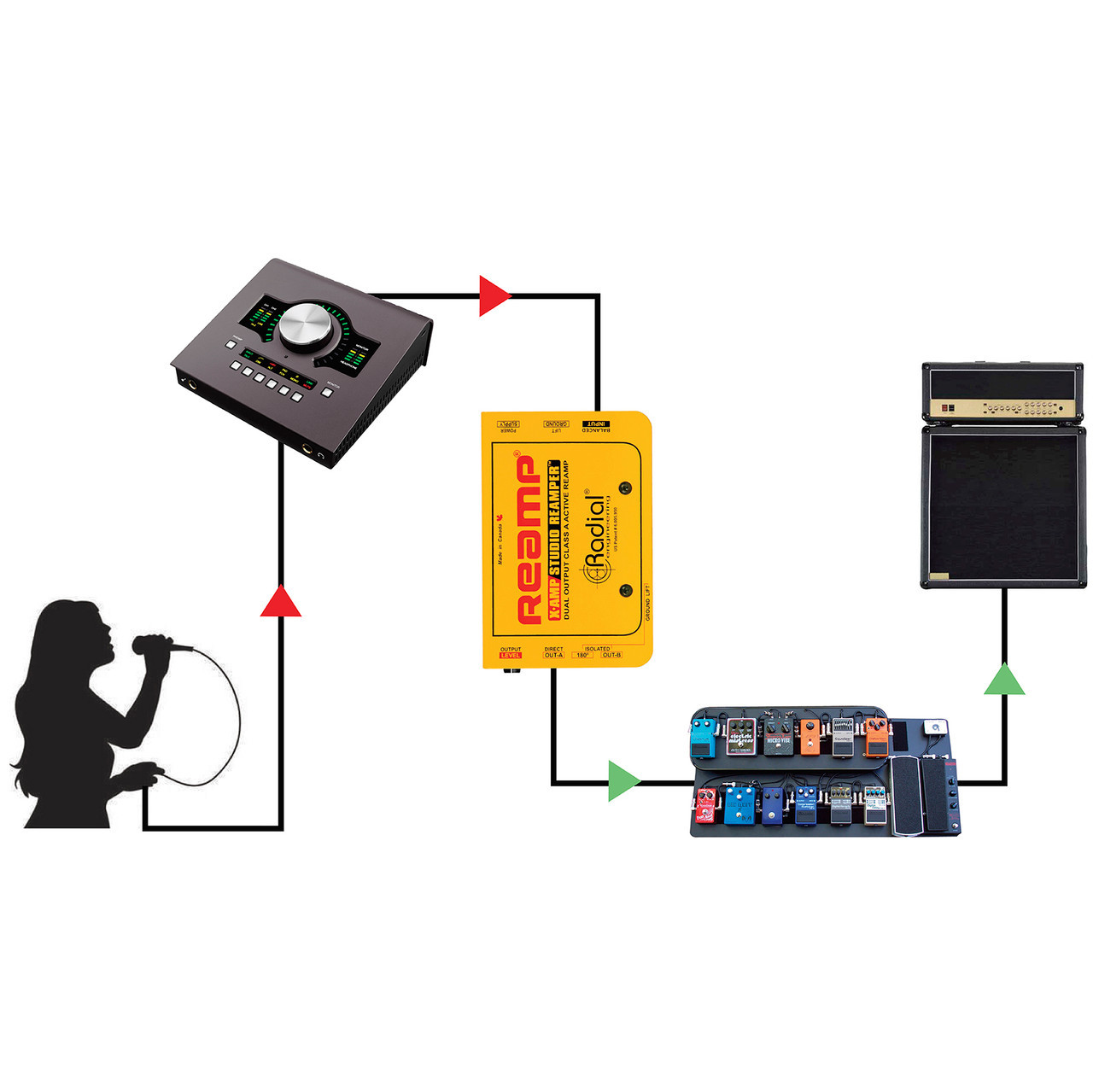

Radial X-Amp Re-Amping Box Applications
- Line-level to instrument level conversion
- Interfaces recording gear with amps & pedals
- Re-amp your way to fat sounding tracks
- Use during basic tracks, over-dubs and mixing
Radial X-Amp Re-Amping Box Specifications
- Audio Circuit Type: 100% discrete class-A
- Frequency Response: 20Hz ~ 15kHz (± 1.0dB)
- Signal to Noise Ratio: 88dB below instrument level (-20dBu)
- Dynamic Range: 119dB
- Noise Floor: OUT-1 -110dB; OUT-2 -108dBu
- Maximum Input: +22dBu
- Total Harmonic Distortion: 0.02% @ -15dBu
- Inter-Modulation Distortion: 0.02% @ -20dBu
- Input Impedance: 600O

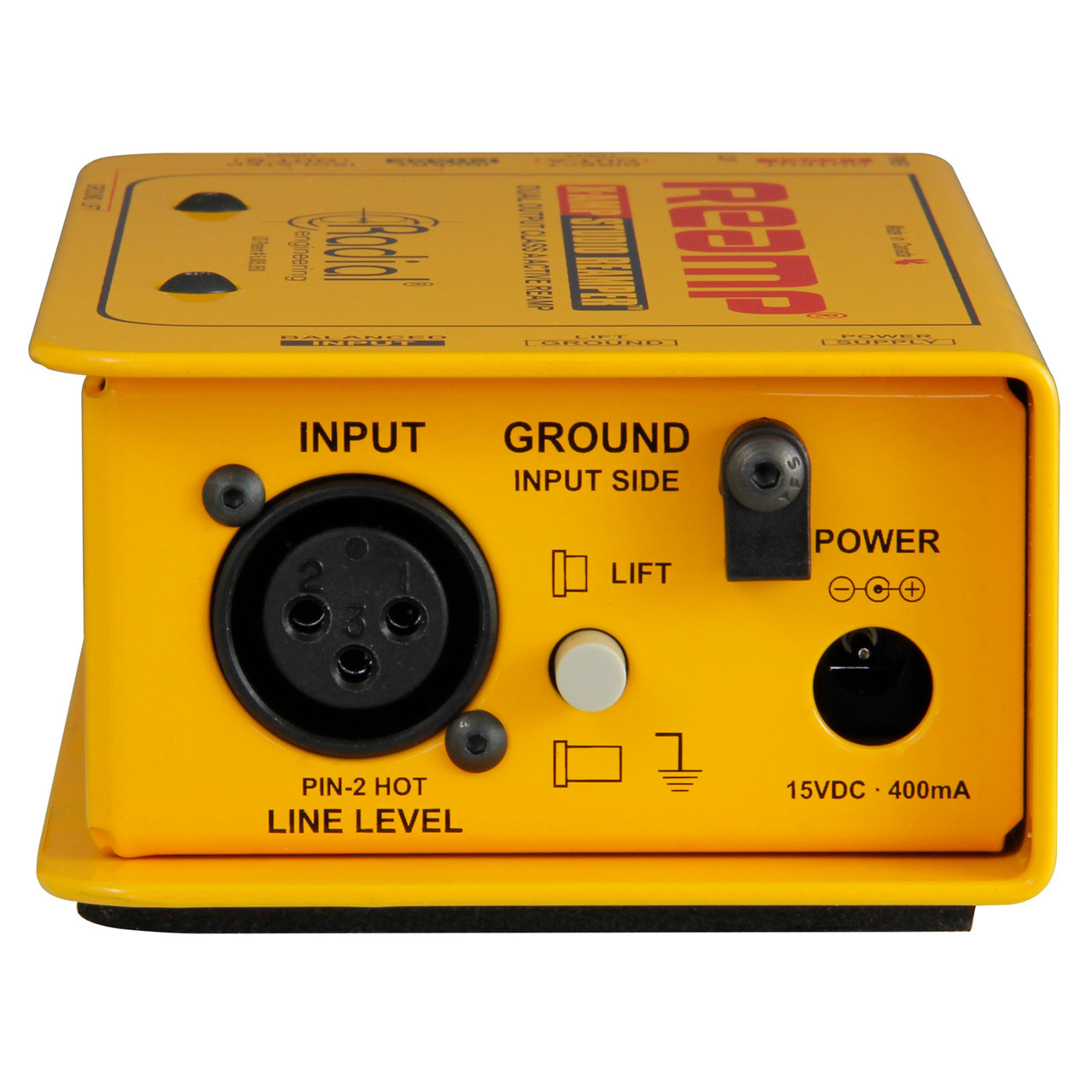

- XLR Input: Balanced line-level, AES standard (pin-2 hot)
- Ground Lift (Input): Disconnects pin-1 at the XLR input
- Output Level: Adjustable
- Output Type: High-Z instrument-level, Out-1 direct, Out-2 transformer isolated
- Polarity: 180º polarity reverse on Out-2
- Power: +15VDC/400mA adapter included
- Construction: 14 gauge steel chassis & outer shell, powder-coat finish
- Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight: 1.55lb (720g)
- Shipping Size: 5"x2.75"x10.75" (127x70x273mm)
- Shipping Weight: 2.6lb (1.18kg)
- Conditions: For use in dry locations only between 5°C and 40°C
Radial X-Amp Re-Amping Box Includes
- Radial X-Amp Re-Amping Box
- User Guide
- Manufacturer Warranty
