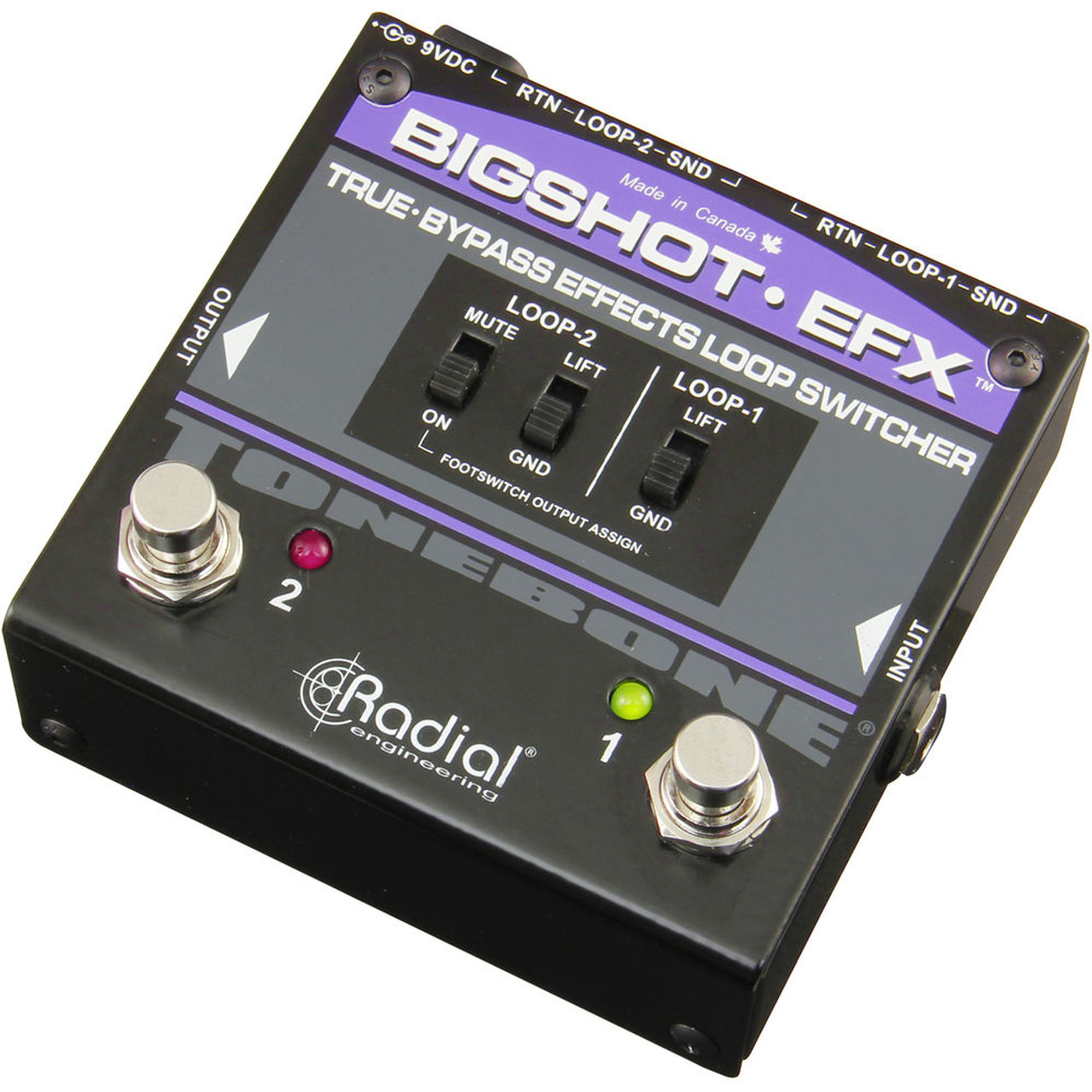

The Radial Tonebone BigShot EFX True Bypass Effects Loop Controller is a true-bypass effects pedal switcher that lets you set up two separate effects loops and insert them into your pedal chain when needed.
The BigShot EFX gives you the ability to take an entire chain of effects pedals in or out of your signal path with a single footswitch, providing you with a streamlined way to manage multiple pedals on stage. Two effects loops are provided and can be individually activated, or run simultaneously with Loop-1 feeding Loop-2 for even more creative options. You can also set up Loop-2 as a mute for silent tuning or instrument changeovers. Since each loop is true-bypass, it allows you to keep noisy or tone-robbing pedals out of the signal path when they are not needed.
Radial BigShot EFX True Bypass Effects Loop Controller Features
- Instant access to two effects loops
- Take noisy pedals out of the signal chain
- Create true-bypass signal path with all pedals
- Compact and rugged for pro pedalboards
- Easy to use and set up
Radial BigShot EFX True Bypass Effects Loop Controller Applications
- Two effects loops: Have two effects chains ready to go and select one, the other or both with separate footswitches for each loop! Ground lifts on the return side of each loop help tame hum and buzz.
- Effects loop plus tuner w/mute: Here one effects loop is used on loop-1 with a tuner connected to the other. Footswitch-1 brings in the effects loop and footswitch-2 mutes the output and sends it to the tuner for quick & quiet on-the-fly tune-ups.
- Amp switcher with tuner out: To demonstrate the versatility of the Radial BigShot EFX's passive circuit, you can connect amplifiers to the 'SEND-1' and 'SEND-2' jacks to make the Radial BigShot EFX an ABY switcher. Connect a tuner to the EFX's 'OUTPUT' jack if desired.
Radial BigShot EFX True Bypass Effects Loop Controller Specifications
- Circuit Type: Passive true-bypass
- Ch-A / B Isolation: ISO switch on Output-B
- Ground Lift: LIFT switch on RETURN of both LOOP-1 and LOOP-2
- Mute: Mute switch mutes loop-2
- Footswitches:
- Heavy-duty high-cycle:
- 1 - switches in/out FX loop-1
- 2 - switches in/out FX loop-2
- Heavy-duty high-cycle:
- Construction: 14 Gauge steel, baked enamel finish
- Size: 3.6"w x 3.9"d x 2"h (92 x 99 x 51mm)
- Weight: 1.25 lb (0.56 kg)
Radial BigShot EFX True Bypass Effects Loop Controller Includes
- Radial BigShot EFX True Bypass Effects Loop Controller
- Manufacturer Warranty
