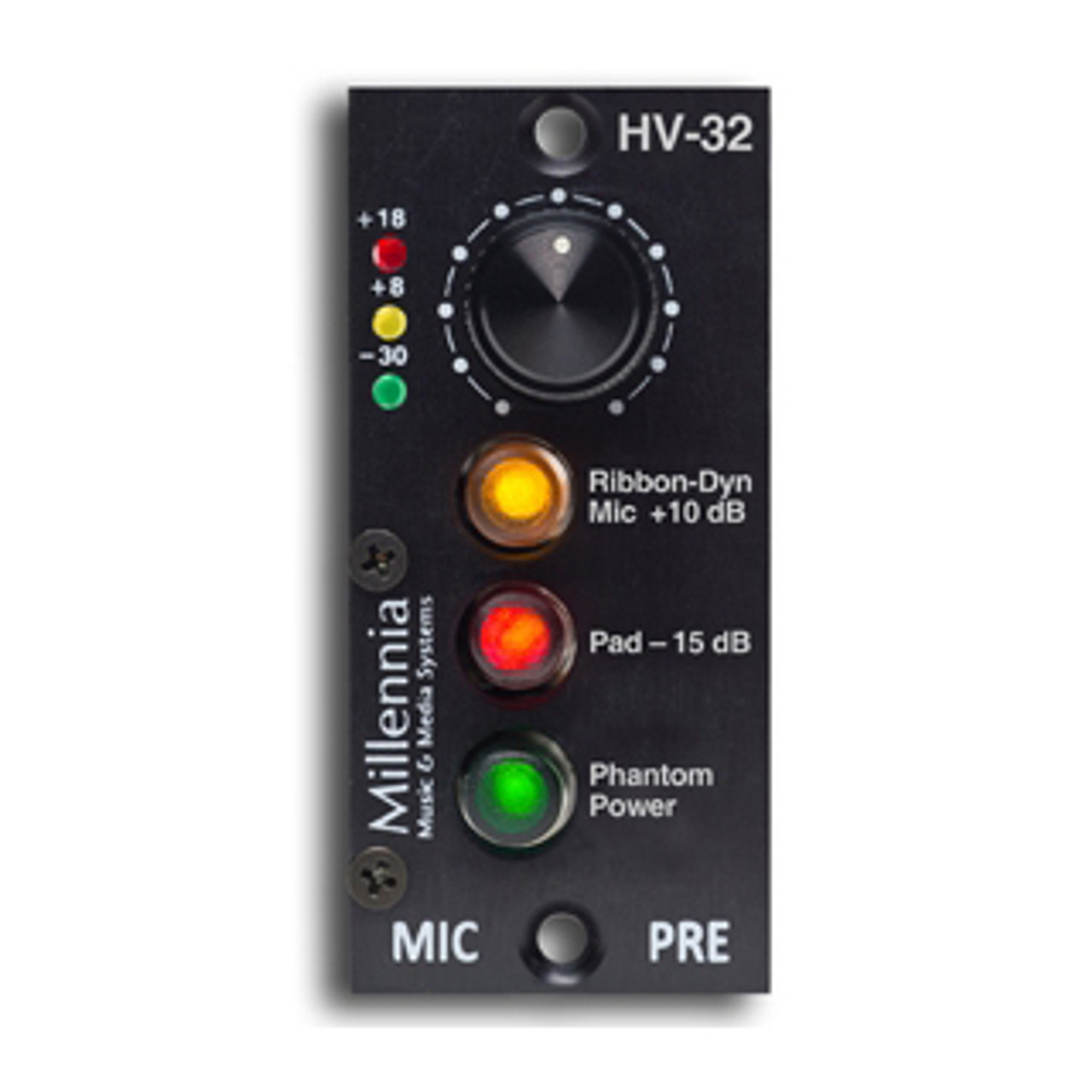

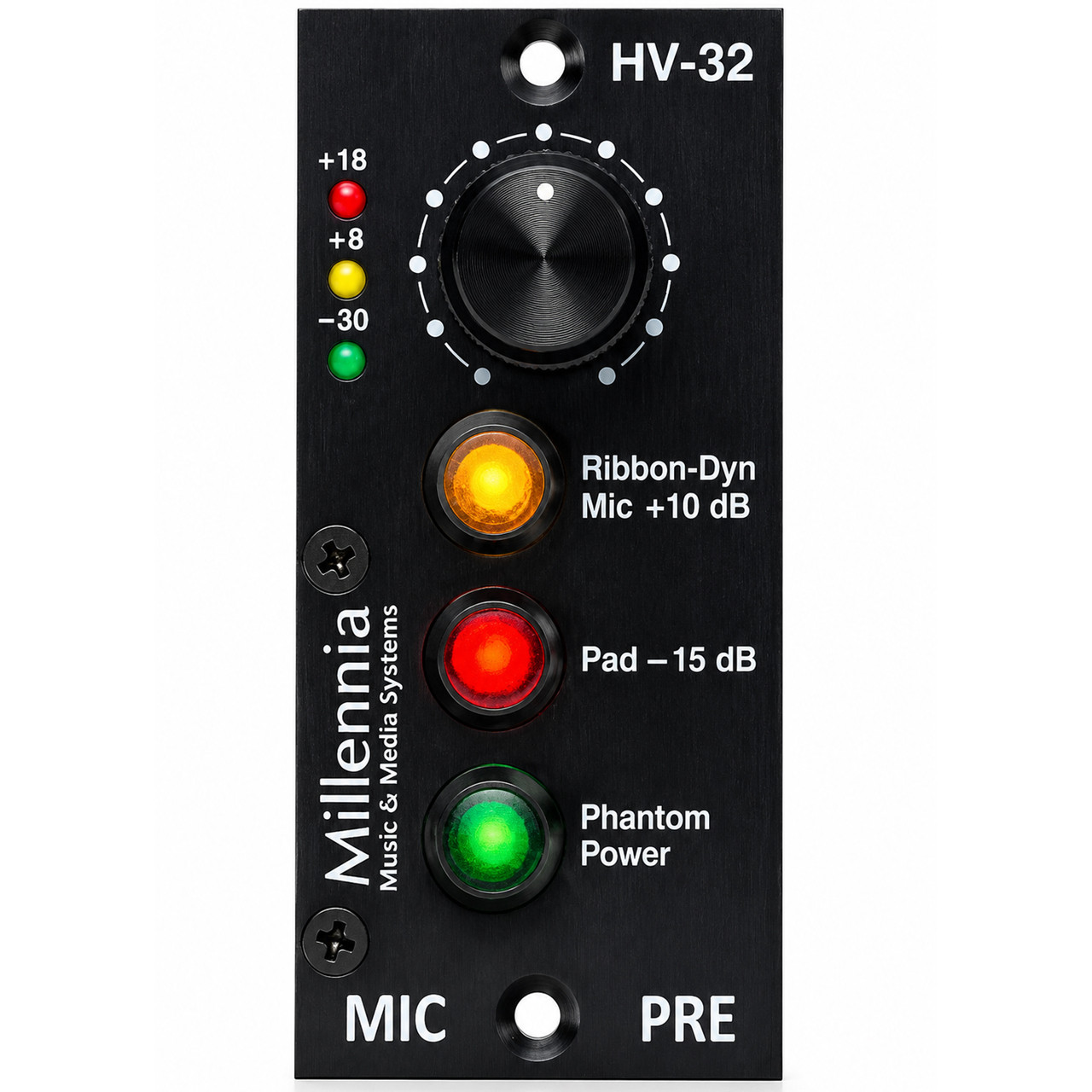

Millennia HV-32 Preamp Module
The Millennia HV-32 Preamp Module is not your average bear of a preamp. Requiring the rare API 200-Series frame or an API Legacy or Vision console for operation, the HV-32 brings the refined clarity of Millennia Media preamps to the micro-modular world!
The Millennia HV-32 Preamp Module is DC-coupeled and includes a 10dB boost which makes the HV-32 perfect for use with passive ribbon mics.
Millennia HV-32 Preamp ModuleFeatures
- Fits in API 200 frame and API Legacy and Vision consoles
- Continuously variable gain control
- DC coupled ribbon mic with 10dB gain boost setting
- 48V phantom power
- 15 dB Pad
Millennia HV-32 Preamp Module Specifications
- Minimum Gain: 8.5 dB
- Maximum Gain (continuously variable): 60 dB (70 dB in Ribbon Mode)
- Frequency Response
- +0 / -3 dB: sub 3 Hz to beyond 300 kHz
- Noise
- 60 dB Gain, 10 Hz - 30 kHz, Inputs common: -130 dB EIN
- Total Harmonic Distortion + Noise
- 35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out: < .001%, Typ. < .0005% (< 5 ppm)
- Intermodulation Distortion
- (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out: < .0009%
- Phase Response
- 35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out: < 2 degrees deviation
- Common Mode Rejection Ratio
- 35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.: > 65 dB, Typ > 85 dB
- Slew Rate
- 35 dB Gain, +27 dBu Out: > 25 Volts per microsecond
- Maximum Input Level
- 20 Hz - 40 kHz: +20 dBu (no attenuator pads required)
- Maximum Output Level
- 20 Hz - 40 kHz: +28 dBu
- Phantom Input Impedance
- 1 kHz: 6,750 ohms
- Output Impedance: 24.3 Ohms (x2)
- Phantom Powering: +48 V dc, +/- 2 V dc
- Dimensions/Shipping Weight: 1-1/8" W x 2-5/8" H x 5-7/8" D, .25 lbs.
Millennia HV-32 Preamp Module Downloads
