JoeCo BlackBox BBR1-MP Micpre Recorder

JoeCo BlackBox BBR1-MP Micpre Recorder

JoeCo BlackBox BBR1-MP Micpre Recorder Details

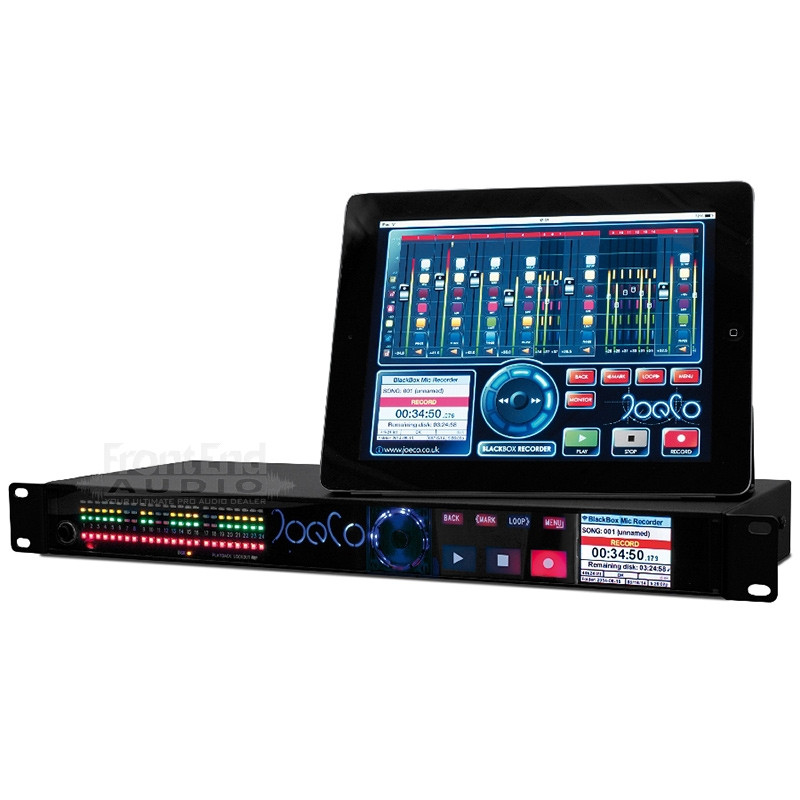

The JoeCo BlackBox BBR1-MP 24-channel recorder offers all the standard BlackBox features as well as 24 high-quality microphone preamps, operating at up to 24bit/96kHz, which are integrated into the recorderâ??s tiny 1U housing. The BBR1MP features a range of connection options including individually switchable mic/line inputs and balanced outputs, video sync, timecode and word clock inputs. User installable Dante and MADI interface cards are also available as options, adding 24 channels of Dante or MADI i/o to the BBR1MP unit. Microphones can either be connected to the unit via tails from the rear D-Sub connectors, or via an optional 2U breakout panel with XLR connectors. System components are available individually or as part of a bundle.

Audio is recorded direct to external USB2 drive in Broadcast WAV format for instant ingest into post production. Alongside the BBR1MPâ??s multi-channel recording capabilities, provision is included for creating a simultaneous stereo mixdown. Full support for iXML data is also provided.

The BBR1MP will run off a 12V power source. Unused channels and features can be disabled in order to preserve battery life on location. The unit is fully controllable via JoeCoRemote for iPad. This includes the facility to set up individual mic pre channel parameters - level, mic/line, phantom power, hi-pass filter, soft limiter and phase reverse. Levels are shown on high resolution meters and the monitor mix can be adjusted using expandable channel strips with graphic faders, pan, solo, mute and other parameter controls.

The BBR1MPâ??s compact dimensions, high-quality mic preamps and converters make it a practical, elegant solution for a range of broadcast applications, as well as for live engineers needing a portable multi-channel recording option.

JoeCo BlackBox BBR1-MP Micpre Recorder Features

  • 24-channel record or playback at up to 24bit/96kHz
  • 24 high-quality integrated mic preamps (24bit/96kHz operation)
  • Microphone connection via tails from DSub connectors, or optional 2U breakout panel with XLR connectors
  • Runs off 12V power source for location use
  • Remote set-up, control and monitoring via JoeCoRemote for iPad (iPad is NOT included)
  • Multiple connection options: switchable mic/line inputs, balanced outputs
  • User installable optional Dante or MADI cards for 24 channels of Dante or MADI i/o
  • MADI outputs from a pair of BBR1MPs can be automatically combined into a single 48-channel data stream
  • Records standard broadcast WAV files to an external USB2/3 drive. Captured audio material can be imported into any digital workstation for instant re-purposing. No file transfer necessary
  • Can also store iXML data in BWAV files
  • Synchronisation options: timecode, word clock, video sync
  • Simultaneous stereo mixdown during recording
  • Safeâ??nâ??Sound Record Recovery protects files in case of power failuree

JoeCo BlackBox BBR1-MP Micpre Recorder Specifications
General Specifications

  • Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Bit depth: 16 / 24bit
  • Disk interface: USB2 (compatible with USB3)
  • Disk format: FAT32 â?" compatible with both Mac and PC
  • File format: Broadcast WAV (BWAV)
  • External drive: USB2/3 hard drive or fast memory stick
  • File type: Standard mono Broadcast WAV or multi-channel WAV
  • User interface: Primarily designed for use with the JoeCoRemote iPad app,
  • the unit can also be configured directly from the front panel

Audio i/o

  • Record/playback Up to 24 channels @ up to 96kHz / 24 bit
  • Inputs Switchable microphone / line inputs on channel by channel basis
  • Mic preamps Gain: 0 - +60dB continuously variable;
  • Soft limiter: software selectable on/off;
  • Hi-pass filter: -6dB @ 100Hz, 12dB/octave
  • Max input level: +21dBu
  • EIN: <-124dBu (20-22kHz)
  • THD: <-110dBFS (20-22kHz @ -10dBFS input)
  • Cross talk rejection > 80dB @ 20kHz
  • ZIN: >10kOhm (single ended); >2kOhm (differential)
  • Outputs Line level balanced outputs (+21dBu = 0dBFS)
  • E-E THD+N E-E: better than -90 dBFS (unity gain, 20 - 22kHz, unweighted)
  • Frequency response: better than +/- 0.5dB, 20-40kHz @ 96kHz sampling
  • Monitoring Front-mounted ¼" TRS jack socket: headphone mix, PFL, solo etc (Engineer);
  • Rear-mounted ¼" jack socket for headphone mix only (Director)

Control and Synchronisation

  • Audio clock synchronisation: Word clock, Video reference and SMPTE linear timecode (all std frame rates supported), AES/EBU or SPDIF clock
  • Control: JoeCoRemote for full control
  • Sony 9-pin and MIDI (MMC) for transport controls
  • Physical: 19â? rack-mounted 1U (435x44x170mm) - >3kg
  • Optional: 19â? rack-mounted 2U breakout panel (XLR) (475mm x 88mm x 35mm) 1kg
  • Power: 12V dc (Kycon 4-pole connector), 35W max. External universal PSU included
