The Ferrofish VERTOpro MX MADI to Dante Converter gives professional studios, broadcast facilities, live sound systems, and installed audio environments a powerful way to bridge high-channel-count MADI hardware with modern Dante audio networks.
With two independent MADI interfaces, up to 128 channels of MADI input and output at 48 kHz, flexible internal routing, redundant network operation, and built-in monitoring, the VERTOpro MX is much more than a simple format converter. It is a compact routing hub designed to help established MADI systems play nicely with networked audio workflows. At the heart of the VERTOpro MX are two MADI SFP interfaces that can operate independently, function as a redundant pair, or route audio directly between one another. Each interface supports up to 64 inputs and 64 outputs at 48 kHz, allowing up to 128 MADI input and 128 MADI output channels when both ports are used independently. Two multimode MADI SFP modules are included, making the system ready for optical MADI integration right out of the box. On the network side, the Dante interface supports up to 64 inputs and 64 outputs at 48 kHz through dual Gigabit Ethernet connections, with switched or redundant operation and AES67 compatibility. The VERTOpro MX also provides extensive control without forcing you to manage everything from a computer. Its flexible routing matrix allows signals to be routed between MADI and Dante or directly between the two MADI interfaces, either channel by channel or in groups of eight. A 3-inch IPS color display provides immediate access to signal levels, routing, clock information, and configuration settings, while the integrated 6.3 mm headphone output makes it easy to monitor digital signals directly from the unit. RemoteFish software adds remote configuration from Windows or macOS via USB-MIDI or MIDI, and dedicated BNC Word Clock connections provide straightforward integration with externally synchronized digital systems.
Ferrofish VERTOpro MX MADI to DANTE Converter Features
- Dual MADI SFP interfaces for high-channel-count professional audio systems
- MADI interfaces can operate independently, redundantly, or route audio between each other
- Supports up to 128 MADI input and 128 MADI output channels at 48 kHz when both interfaces operate independently
- Dante interface supports up to 64 input and 64 output channels at 48 kHz
- Dual Gigabit Ethernet connections support switched or redundant Dante operation
- AES67 compatible for expanded Audio-over-IP interoperability
- Supports sample rates up to 192 kHz
- Flexible routing between MADI and Dante or between both MADI interfaces
- Routing available channel by channel or in blocks of eight

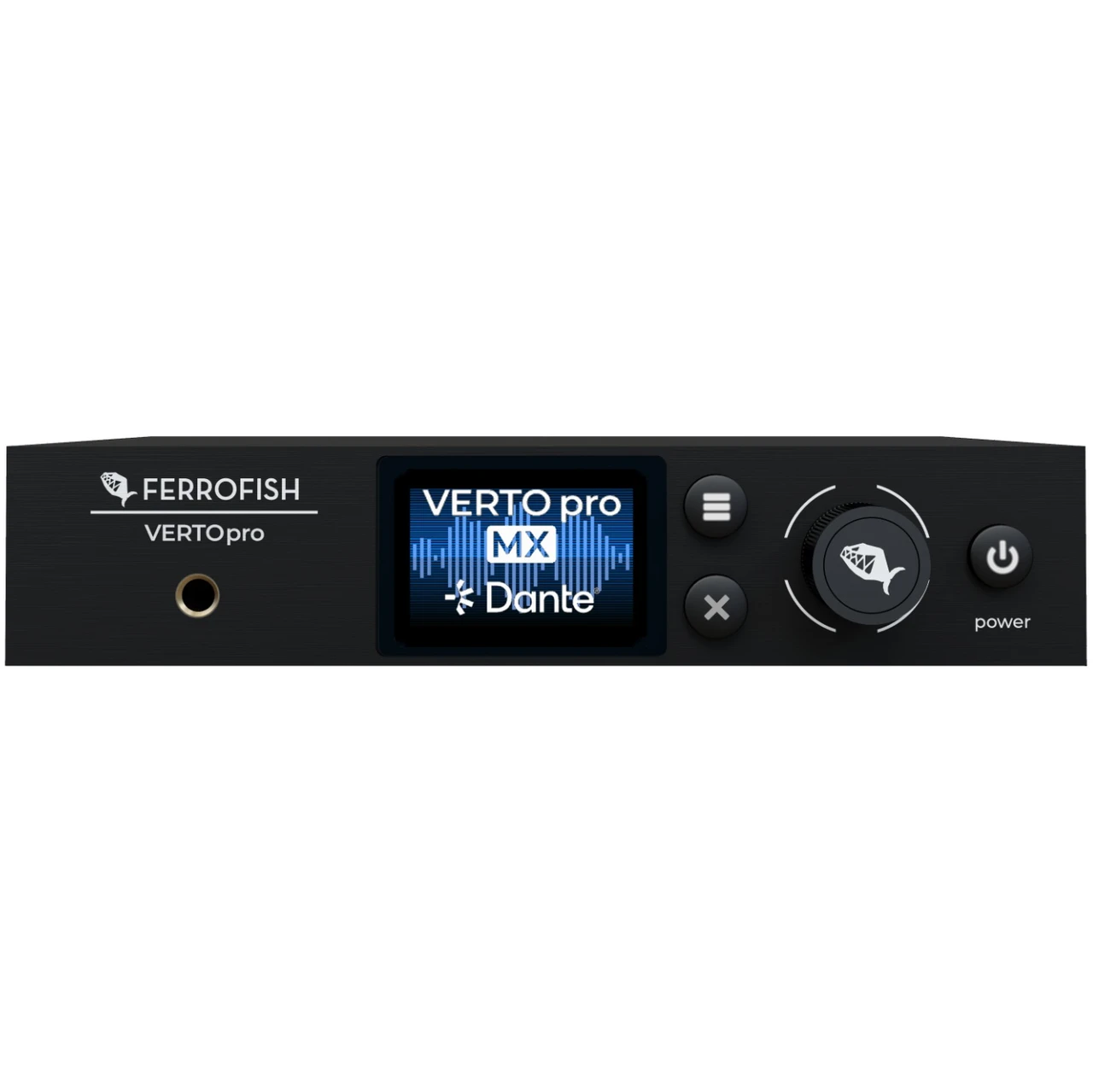

- 3-inch IPS color display provides level, routing, clock, and configuration information
- Integrated 6.3 mm headphone output for direct digital signal monitoring
- RemoteFish control from Windows or macOS via USB-MIDI or MIDI
- BNC Word Clock input and output for external synchronization
- Compact half-width 1U design
- Two multimode MADI SFP modules included
Ferrofish VERTOpro MX MADI to DANTE Converter Specifications
- MADI Interfaces: 2 x MADI SFP\
- MADI Channels at 48 kHz: Up to 64 input and 64 output channels per interface
- Maximum MADI Channels at 48 kHz: Up to 128 input and 128 output channels with both interfaces operating independently
- Dante Channels at 48 kHz: Up to 64 input and 64 output channels
- Dante Network Connections: 2 x Gigabit Ethernet
- Dante Network Modes: Switched or redundant
- AES67 Support: Yes
- Maximum Sample Rate: 192 kHz
- Routing: MADI to Dante, Dante to MADI, or between MADI interfaces
- Routing Resolution: Channel by channel or blocks of eight
- Display: 3-inch IPS color display
- Headphone Output: 6.3 mm
- Remote Control: RemoteFish for Windows or macOS via USB-MIDI or MIDI
- Word Clock: BNC input and output
- Form Factor: Half-width, 1U
- Weight: 2 kg
- Dimensions: 34 x 22 x 8 cm
Ferrofish VERTOpro MX MADI to DANTE Converter Includes
- Ferrofish VERTOpro MX MADI to DANTE Converter
- Power Supply
- Manual
- Manufacturer Warranty
