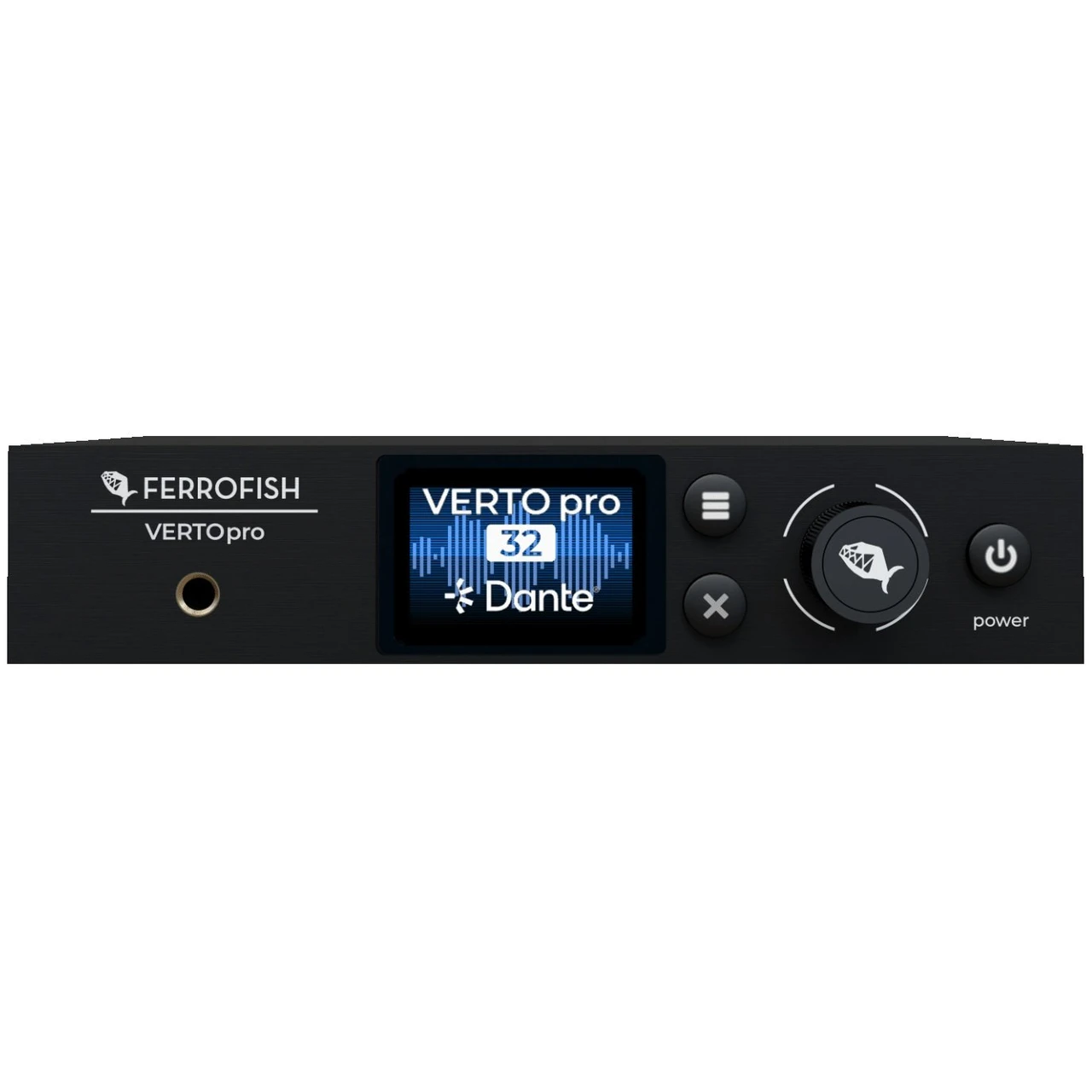

The Ferrofish VERTOpro 32 ADAT to Dante Converter gives studios, broadcast facilities, live systems, and installed audio rigs a straightforward way to bring existing ADAT equipment into a modern Dante network.
With four optical ADAT inputs and four outputs delivering up to 32 x 32 channels at 48 kHz, a 64 x 64-channel Dante interface, flexible onboard routing, and support for sample rates up to 192 kHz, the VERTOpro 32 is a powerful bridge between trusted digital hardware and networked audio workflows. More than a simple format converter, the VERTOpro 32 provides extensive routing and monitoring directly from its compact half-rack, 1U chassis. Signals can be routed in groups of eight or channel by channel, while the 3-inch IPS color display provides clear access to levels, routing, clock status, and device configuration. An integrated 1/4-inch headphone output makes it easy to monitor digital signals without adding another piece of hardware to the signal chain. Dual Gigabit Ethernet ports support switched or redundant Dante network operation, while AES67 compatibility helps the VERTOpro 32 integrate into a wide range of professional Audio-over-IP environments. Word Clock I/O provides synchronization with external digital equipment, and RemoteFish software offers control from Windows or macOS systems via USB-MIDI or MIDI. For systems that may need to grow beyond ADAT, two SFP slots also provide an upgrade path to optional MADI connectivity with the appropriate Ferrofish SFP modules and MADI license.
Ferrofish VERTOpro 32 ADAT to Dante Converter Features
- Converts optical ADAT audio to and from Dante network audio
- Four ADAT inputs and four ADAT outputs on optical TOSLINK connections
- Supports up to 32 x 32 ADAT channels at 48 kHz
- 64 x 64-channel Dante interface at 48 kHz
- Sample rate support up to 192 kHz
- Flexible routing in groups of eight or channel by channel
- Dual Gigabit Ethernet ports for switched or redundant Dante operation
- AES67 support for expanded Audio-over-IP compatibility
- 3-inch IPS color display for metering, routing, clock status, and configuration
- Integrated 1/4-inch headphone output for digital signal monitoringBNC Word Clock input and output for system synchronization
- RemoteFish control from Windows or macOS via USB-MIDI or MIDI
- Two SFP slots provide optional MADI expansion capability
- Compact half-width, 1U design
Ferrofish VERTOpro 32 ADAT to Dante Converter Specifications
- ADAT I/O: 4 x optical ADAT inputs, 4 x optical ADAT outputs
- ADAT Channels at 48 kHz: 32 x 32
- ADAT Channels at 96 kHz: 16 x 16
- ADAT Channels at 192 kHz: 8 x 8
- Dante I/O: Up to 64 x 64 channels at 48 kHz
- Network Connections: 2 x Gigabit Ethernet ports
- Network Operation: Switched or redundant
- AES67 Support: Yes
- Maximum Sample Rate: 192 kHz
- Display: 3-inch IPS color display
- Headphone Output: 6.3 mm
- Word Clock: BNC input and output
- Remote Control: RemoteFish for Windows or macOS via USB-MIDI or MIDI
- MADI Expansion: 2 x SFP slots; separate MADI license and compatible Ferrofish SFP modules required
- Form Factor: Half-width, 1U
- Weight: 1 kg
- Dimensions: 34 x 22 x 8 cm
Ferrofish VERTOpro 32 ADAT to Dante Converter Includes
- Ferrofish VERTOpro 32 ADAT to Dante Converter
- Power Supply
- Manual
- Manufacturer Warranty
