Telefunken Elektroakustik DD5 Drum Microphone Pack

(No reviews yet) Write a Review
Product Code: 9999-15168
Telefunken DD5
$1,349.00
UPC:
899051002619
Availability: Usually Ships in 24 Hours

Telefunken Elektroakustik DD5 Drum Microphone Pack

The Telefunken Elektroakustik DD5 Drum Microphone Pack has assembled the three unique voices of its TEC Award winning Dynamic Series microphone line (M82, M80-SH, M81-SH) for drum recording and live performance applications.

The Telefunken Elektroakustik DD5 Drum Microphone Pack consists of the M82 handling kick drum duties, the M80-SH on snare, and the M81-SH for toms. The Telefunken Elektroakustik DD5 ships in the heavy-duty hard shell FC85 flight case and includes multiple drum mounts (M782, M784 and M785) and a SGMC-5R five-meter XLR cable with a right angle female connector for each microphone in the set.

Telefunken Elektroakustik M80-SH Snare Drum Microphone

Telefunken Elektroakustik created the M80-SH for use on snare drum and vocal applications where a lower profile microphone with right angle XLR cable is needed. The Telefunken Elektroakustik M80-SH is the same exact circuit as the Telefunken Elektroakustik M80 Standard, housed in a shorter microphone body with a built-on stand mount. The wide frequency response and higher SPL capabilities of the Telefunken Elektroakustik M80-SH offer the user a superior alternative to the midrange-laden character of many of the industry's standard dynamic microphones. A tight cardioid polar pattern and a frequency response boasting a subtle rise in the high end result in a microphone that is equally suitable for snare drum, vocals or instruments on both the stage and the studio. The Telefunken Elektroakustik M80-SH is finished on both the headgrille and body with a durable, textured black powder coat.

Telefunken Elektroakustik M81-SH Tom Microphone

The Telefunken Elektroakustik M81-SH was designed with the goal of developing a mic that would not only complement the Telefunken Elektroakustik M80-SH, but also stand out in a universe filled with dynamic microphone options. Building off many of the strengths of the Telefunken Elektroakustik M80, the Telefunken Elektroakustik M81-SH retains the same minimal proximity effect, superior feedback rejection, and an articulate mid-range. However, with the Telefunken Elektroakustik M81-SH, the top end is pulled back a bit, yielding a flatter overall frequency response. This combination results in a microphone with a wealth of body and clarity, making it a great tool for fattening up toms, percussion and horns, or taming brighter vocals or thinner sounding sources. The Telefunken Elektroakustik M81-SH is identical to the Telefunken Elektroakustik M81 in circuit, but housed in a shorter microphone body with a built-on stand mount, and finished in a durable, textured dark gray powder coat on both the headgrille and body.

Telefunken Elektroakustik M82 Dynamic Kick Drum Microphone

The Telefunken Elektroakustik M82 is a robust large diaphragm end-address dynamic microphone that has been designed for kick drum and vocal broadcast applications. Hand-assembled in CT, USA, the Telefunken Elektroakustik M82 features two independently functioning EQ switches: KICK EQ and HIGH BOOST, which in turn offer four unique voices. The Telefunken Elektroakustik M82's KICK EQ switch engages a passive filter that reduces some of the lower mid-range frequencies (centered around 350Hz) commonly cut when processing a kick drum. The HIGH BOOST switch tilts the upper mid-range and high frequencies (starting around 2kHz with a 6dB boost by 10kHz) to allow for extra articulation. In the flat setting (both switches off), the Telefunken Elektroakustik M82 is equally suited for vocals, guitar amps, and brass.

Telefunken Elektroakustik DD5 Drum Microphone Pack Features

  • Telefunken Elektroakustik M80-SH Snare Drum Microphone
    • Lower profile microphone with right angle XLR cable
    • Housed in a shorter microphone body with a built-on stand mount
    • Wide frequency response and higher SPL capabilities
    • Tight cardioid polar pattern and a frequency response boasting a subtle rise in the high end
    • Finished on both the headgrille and body with a durable, textured black powder coat
    • Equally suitable for snare drum, vocals or instruments on both the stage and the studio
  • Telefunken Elektroakustik M81-SH Tom Microphone
    • Minimal proximity effect, superior feedback rejection, and an articulate mid-range
    • Top end is pulled back a bit, yielding a flatter overall frequency response
    • Housed in a shorter microphone body with a built-on stand mount
    • Finished on both the headgrille and body with a durable, textured dark gray powder coat
    • Great tool for fattening up toms, percussion and horns, or taming brighter vocals or thinner sounding sources
  • Telefunken Elektroakustik M82 Dynamic Kick Drum Microphone
    • A robust large diaphragm end-address dynamic microphone
    • Designed for kick drum and vocal broadcast applications
    • Two independently functioning EQ switches for four unique voices
    • KICK EQ switch engages a passive filter that reduces some of the lower mid-range frequencies
    • HIGH BOOST switch tilts the upper mid-range and high frequencies to allow for extra articulation
    • In the flat setting (both switches off), it is equally suited for vocals, guitar amps, and brass

Telefunken Elektroakustik DD5 Drum Microphone Pack Specifications

  • Telefunken Elektroakustik M80-SH Snare Drum Microphone
    • Capsule: 25 mm
    • Transformer: Custom Wound TELEFUNKEN T80
    • Polar Pattern: Supercardioid
    • Frequency Range: 50 Hz - 18 kHz
    • Sensitivity: 1.54 mV/Pa
    • Output Impedance: 325 O
    • Maximum SPL (for 1% THD): 135 dB
    • Dimensions: 125 mm L x 48 mm Dia
    • Weight: 340 g
  • Telefunken Elektroakustik M81-SH Tom Microphone
    • Type: Dynamic Moving Coil
    • Capsule: 25 mm
    • Transformer: Custom Wound TELEFUNKEN T80
    • Polar Pattern: Supercardioid
    • Frequency Range: 50 Hz - 18 kHz
    • Sensitivity: 1.54 mV/Pa
    • Output Impedance: 325 O
    • Maximum SPL (for 1% THD): 135 dB
    • Dimensions: 125 mm L x 48 mm Dia
    • Weight: 340 g
  • Telefunken Elektroakustik M82 Dynamic Kick Drum Microphone
    • Type: Dynamic Moving Coil
    • Capsule: 32 mm
    • Polar Pattern: Cardioid
    • Frequency Range: 25 Hz - 18 kHz
    • Sensitivity: 1.85mV/Pa
    • Output Impedance: 250 O
    • Maximum SPL (for 1% THD): 146 dB
    • Dimensions: 155 mm L x 63 mm Dia
    • Weight: 434 g

Telefunken Elektroakustik DD5 Drum Microphone Pack Includes

  • 1 x M82 with M782 mount
  • 1 x M80-SH with M784 (metal) and M785 (plastic) mount
  • 3 x M81-SH with M784 (metal) and M785 (plastic) mount
  • 5 x SGMC-5R five-meter XLR with right angle female connector

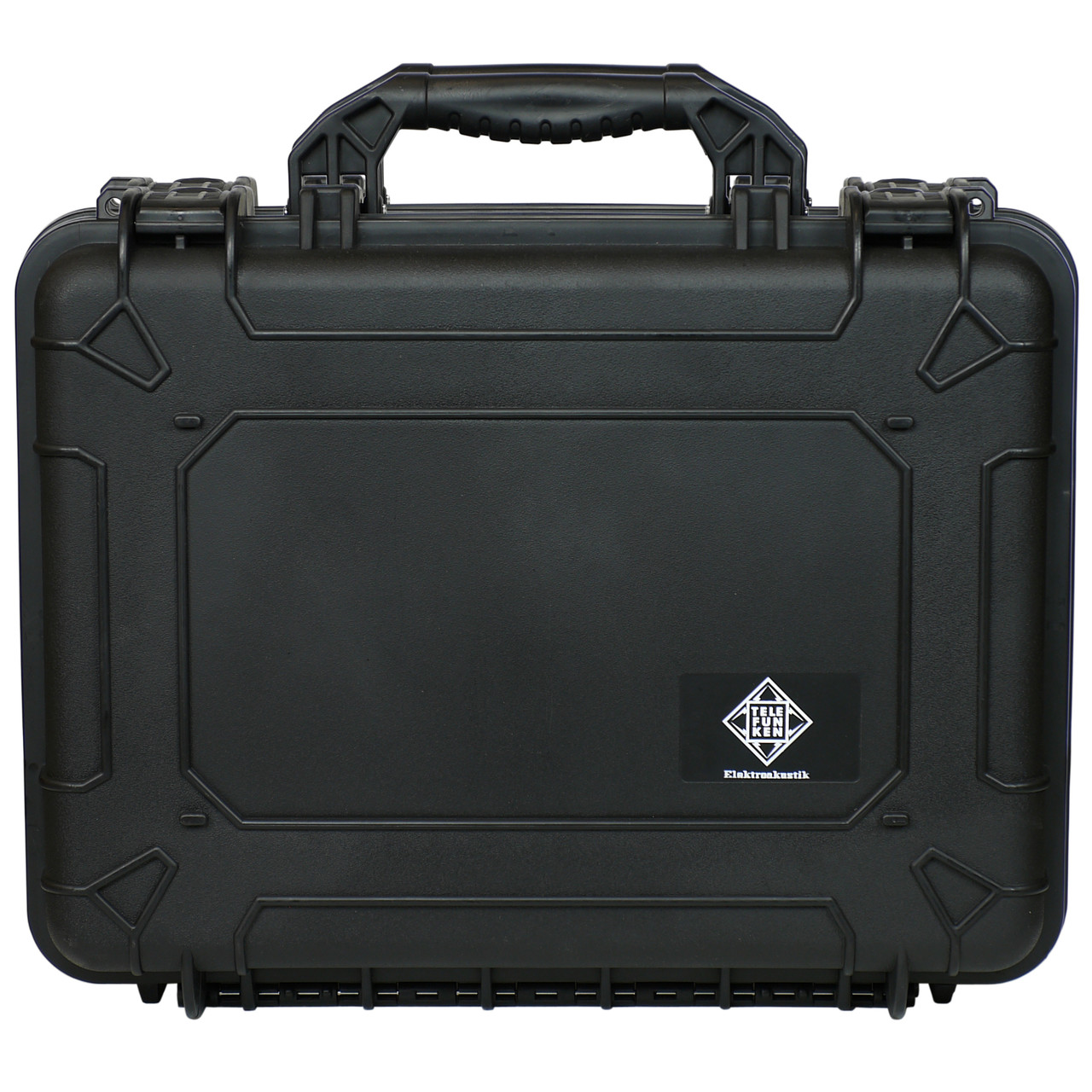

  • 1 x HC85 Hard Shell Flight Case
  • 1 Year Warranty

Telefunken Elektroakustik DD5 Drum Microphone Pack Downloads

What We Think

The Telefunken Elektroakustik DD4 and DD5 Drum Mic Packs pack all of the powerfully smooth yet super-refined sound of Telefunken Elektroakustik's dynamic vocal microphone range into "shorty" bodies, and outfit them all with mounting hardware and right-angle XLR cables. The M80-SH with it's extended high-frequency focus, really brings the snare drum to life, where the darker, more milky sounding M81-SH attenuates the tizz and wash of crash cymbals, focusing in on the power of the toms. The M82 handles the kick drum admirably with it's unique shaping abilities. You really must hear these mics on drums. Once you do, you'll understand why the Telefunken Elektroakustic dynamics have come to represent the very cutting edge of moving coil microphone technology. And if you also need a pair of overhead microphones together with the dynamic close mics, Telefunken Elektroakustik has also released the DC6 and DC7 Drum Microphone Kits. These each build on the DD4 and DD5 kits (respectively) by adding a matched-pair of M60 FET Cardioid Small Diaphragm Condenser microphones.
