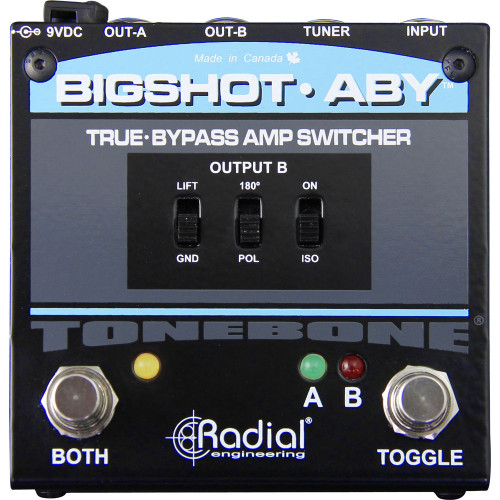

The Radial BigShot ABY True Bypass Switcher is a compact true-bypass ABY switcher that enables you to switch between two amplifiers or play through both amps at the same time, while eliminating buzz and hum from ground loops.
The BigShot ABY makes it easy to run two amps on stage, without introducing noise or altering your tone. The pedal has two latching footswitches that allow you to choose which amp is active, or run through both simultaneously. The second amp output features a ground lift and an isolation transformer that can be engaged to eliminate buzz and hum from ground loops, while a 180° polarity reverse switch ensures both amps play back in phase to avoid frequency cancellation. When powered by an external 9V supply or pedalboard power brick, LEDs provide instant on-stage visual feedback - when power is unavailable, the passive audio circuit still works unaffected. Best of all, the BigShot ABY is true-bypass device, without any tone-altering buffers between the guitar and the amplifier to ensure you retain the pure tone of your instrument.
Radial BigShot ABY True Bypass Switcher Features
- True-bypass ABY amp selector with LED indicators
- On-board transformer to eliminate hum & buzz
- 180° polarity reverse to phase-match amps
- 100% passive audio path, does not require power
- Switch or combine two amps
- Switch between two instruments and one amp
- Tuner output is always on for quick adjustments
- Plug and play easy to use
- Compact and rugged, perfect for pedalboards
- Works with all instruments: guitar, bass, keys
Radial BigShot ABY True Bypass Switcher Applications
- Combining two amps and a tuner - The Radial BigShot ABY makes it easy to switch between two amps. With the built-in isolation transformer, hum and buzz caused by ground loops can be eliminated. A separate tuner out keeps this tone altering device out of the main signal path.
- Using the BigShot ABY to mute your amp - You can use the Radial BigShot ABY as a simple mute footswitch for quiet on-stage tuning. Simply depress the AB selector switch and the signal going to the amp is turned off. This keeps the signal going to the tuner output always on, allowing you to tune without bothering others.
- Using the ABY to switch channels to an amp - The Radial BigShot ABY can also be used to switch channels on older vintage amps that do not have remote switching. Simply send the OUT-A and OUT-B to the two channels on your amp and select channels as needed.
Radial BigShot ABY True Bypass Switcher Specifications
- Technical Specs:
- Circuit Type: Passive, true bypass
- Frequency Response: 20Hz - 20KHz
- Gain: -.3db
- Phase Response: <1 degree
- Switching: 100% passive
- Features:
- Output-A: Direct output
- Output-B: Switchable transformer isolated or direct output
- Tuner Output: Always-on ¼" jack
- LED Indicators: Large 3mm OD ultra-bright LED's
- Ground Lift: Lifts ground at Output-B
- Polarity Reverse: 180° (phase) reverse at Output-B
- ISO Switch: Engages isolation transformer on Output-B
- General:
- Power Supply: 9VDC, center pole negative
- Construction: 14-gauge steel
- Finish: Durable powder coat
- Size: 3.6"w x 3.9"l x 2"h
- Shipping Size: 4.25"w x 6.25"l x 3"h
- Weight: 1.25 lb (0.56 kg)
- Shipping Weight: 1.55 lb (0.70 kg)
- Conditions: For use in dry locations only between 5°C and 40°C
Radial BigShot ABY True Bypass Switcher Includes
- Radial BigShot ABY True Bypass Switcher
- Manufacturer Warranty
