Front End Audio has a fantastic deal on this factory direct B-Stock unit, and stock is limited! Radial quality control has deemed this as "B-Stock" so expect a minor cosmetic flaw or blemish. But, rest assured that this will have absolutely no impact on the functionality or performance of this unit. Radial fully inspects and tests every B-Stock product AND they are covered by a full manufacturer warranty. This is your opportunity to grab a great deal on an otherwise "just like new" ProD2 from Radial!

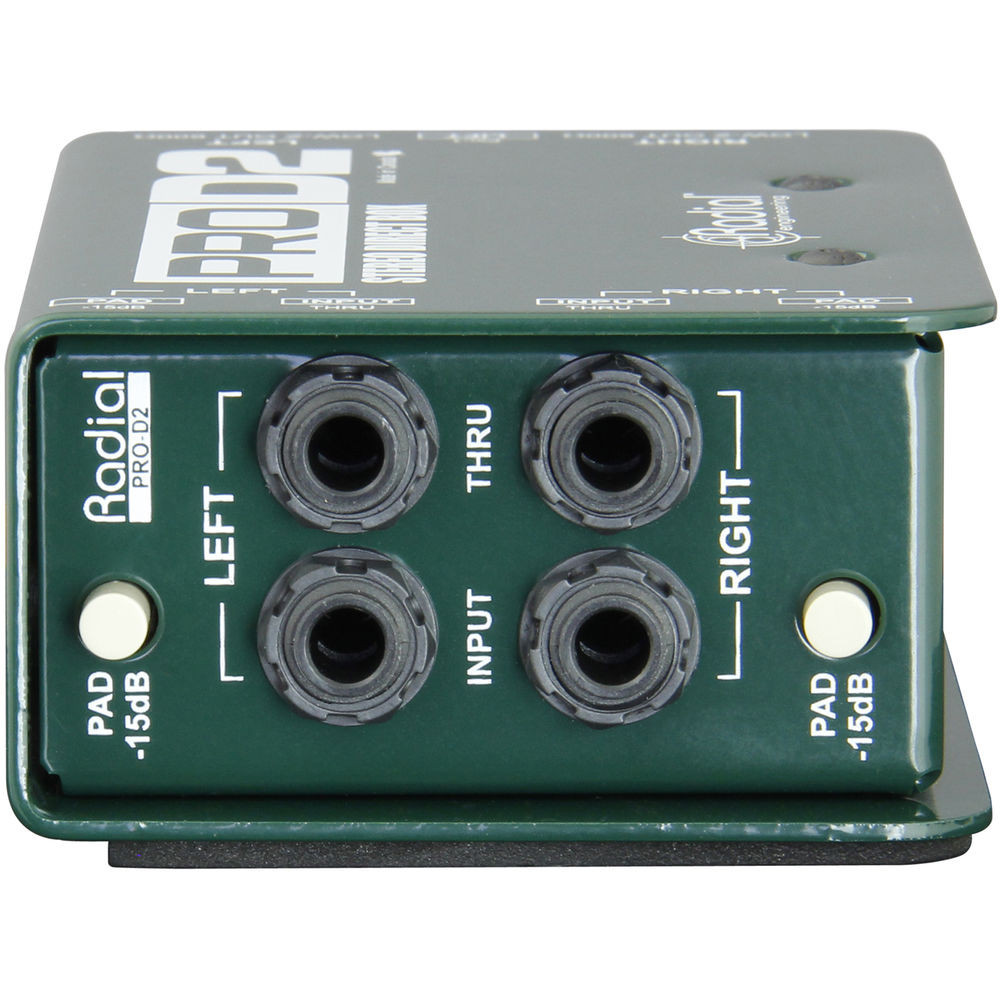

The Radial ProD2 Passive Direct Box is a rugged, great-sounding stereo DI designed to handle everything from keyboards and samplers to laptops, drum machines, and playback rigs with total reliability. The Radial ProD2's warm sound, legendary build quality and compact design have made it the most popular stereo direct box made today. Built around Radial’s custom-wound transformers, the ProD2 delivers clean, natural sound while eliminating noise, ground loops, and signal loss—making it a trusted go-to for studios, stages, and broadcast environments. The ProD2 features a completely passive design that requires no power, making it incredibly dependable in live and mobile setups. Each channel is transformer-isolated to provide excellent noise rejection and wide frequency response, while handling hot line-level signals without distortion. A -15 dB pad on each channel allows it to easily accommodate high-output sources, and the ground lift switches help eliminate hum and buzz in problematic systems. Housed in Radial’s signature steel book-end enclosure, the ProD2 is built to survive years of touring and daily studio use. Whether you’re running stereo keyboards, DJ mixers, playback tracks, or line-level audio into a console, the ProD2 delivers consistent, professional results every time.
Radial ProD2 Passive Direct Box Features
- Stereo direct box designed for keyboards
- Smooth, warm sound rounds out digital edge
- Able to handle huge transients without choking
- May be rack mounted for touring rigs
- Great sounding, rugged passive DI
- High performance custom-wound transformer
- -15dB PAD for wide range of input levels
- Ground lift switch eliminates ground loop hum
- Ultra-tough design, to last a lifetime
- Plug & play - easy-to-use
- Completely passive, no power needed

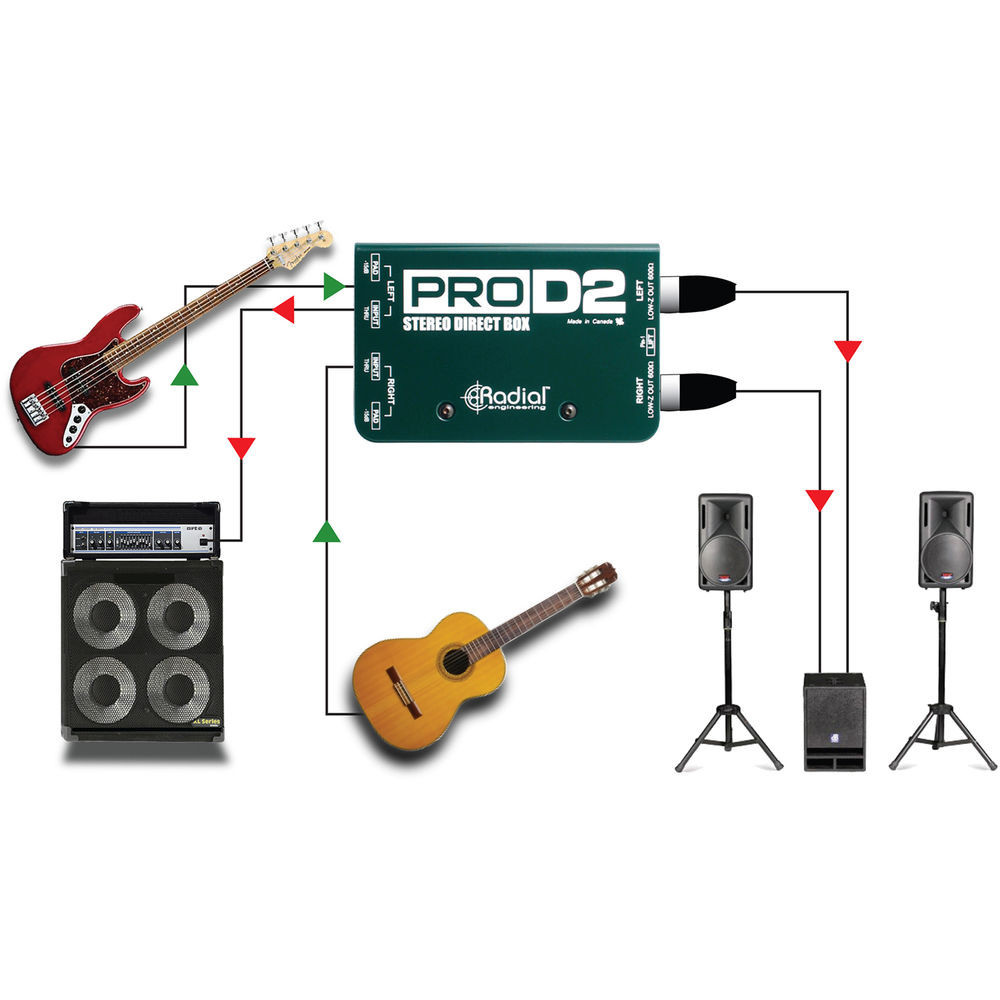

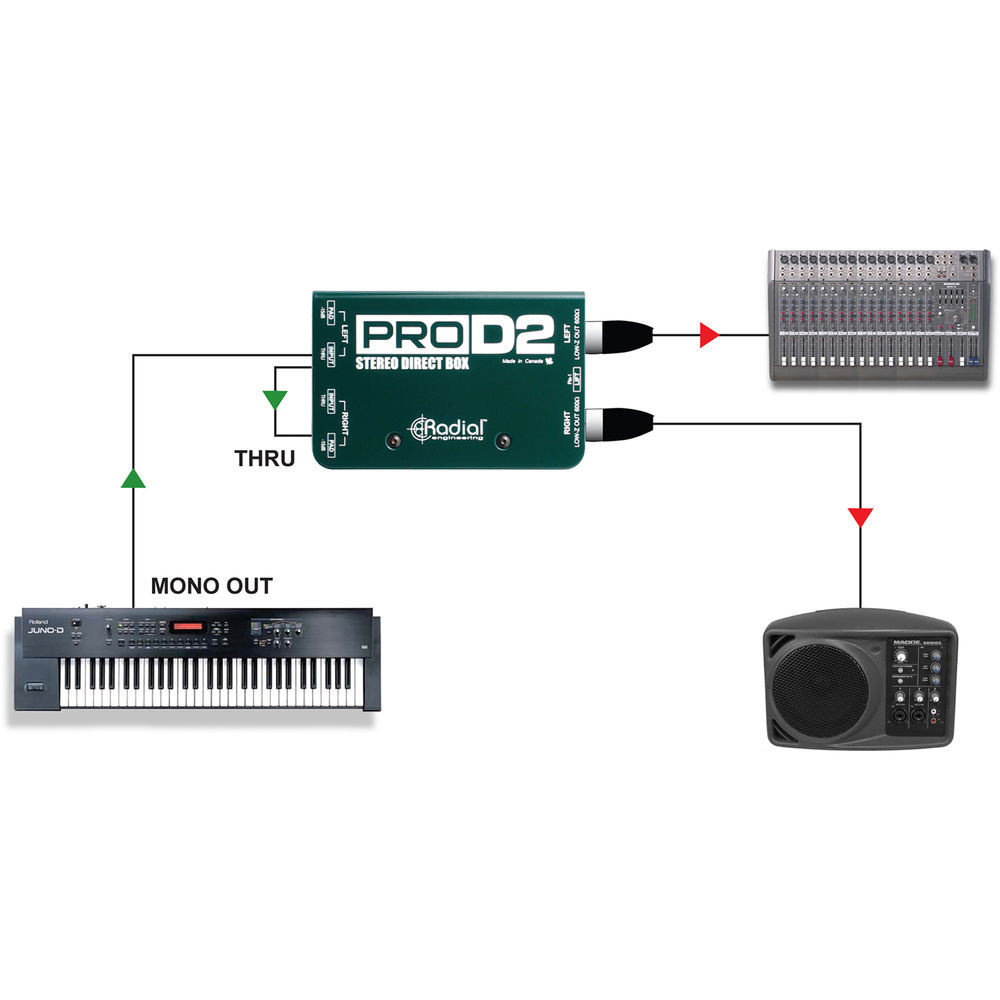

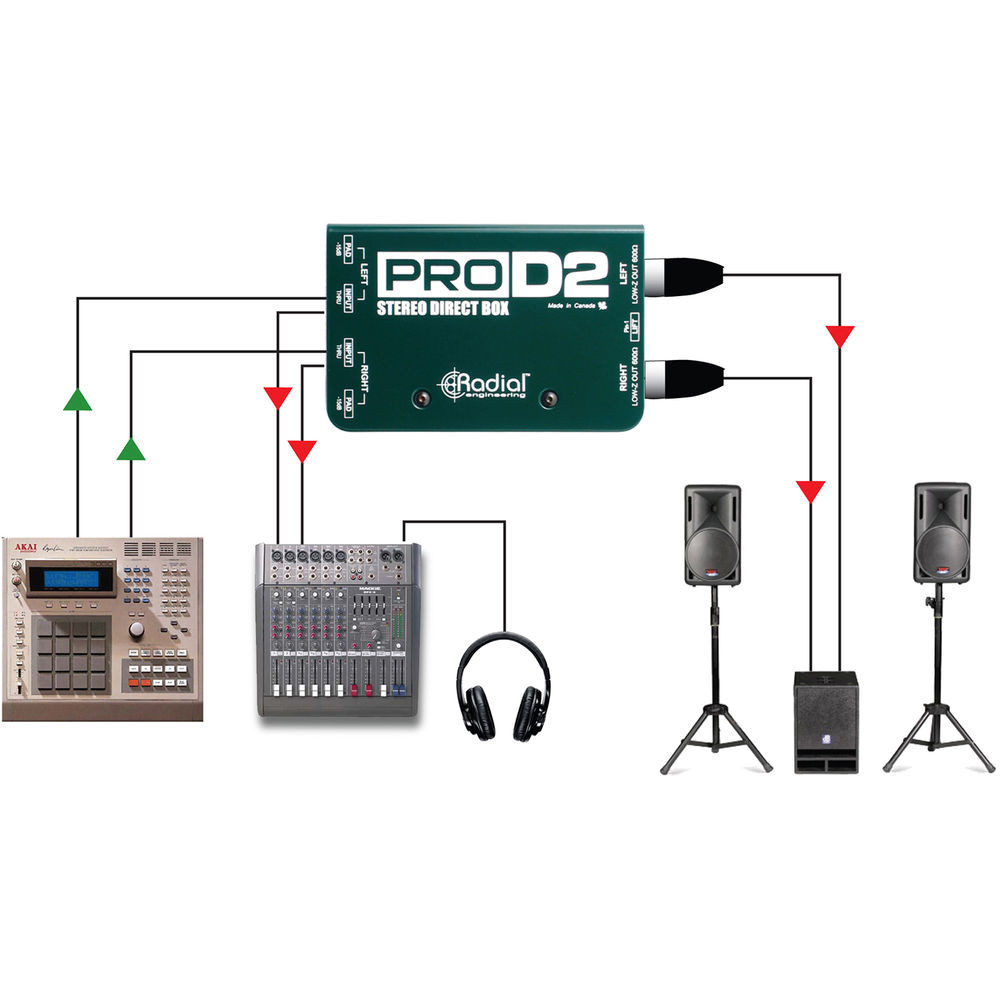

Radial ProD2 Passive Direct Box Applications
- Stereo keyboards and drum machines
- Interface consumer audio with pro gear
- Eliminates buzz and hum caused by ground loops
Radial ProD2 Passive Direct Box Specifications
- Technical Specs:
- Audio Circuit Type: Passive, transformer based
- Number of Channels: Single channel (mono)
- Frequency Response: 20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic Range: 128dB
- Maximum Input: +18dB @ 20Hz
- Total Harmonic Distortion: 0.01% from 20Hz~20kHz @-10dB
- Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
- Input Impedance: 140k Ohms, unbalanced
- Output Impedance: 150 Ohms, balanced
- Features:
- Transformer: Eclipse ET-DB2, 12:1 ratio
- Shield: Faraday, MuMETAL® can
- Input Pad: -15dB
- 180° Polarity Reverse: Inverts absolute phase
- Ground Lift: Disconnects pin-1 at XLR output
- XLR Configuration: AES standard (pin-2 hot)
- Connectors: 1/4" in & thru, XLR-M out
- General:
- Construction: 14 gauge steel chassis & outer shell
- Finish: Durable powder coat
- Size (W x H x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
- Weight: .54kg (1.2lbs)
- Shipping Size L x W x D: 6.5" x 4" x 3" (165mm x 102mm x 76mm)
- Shipping Weight: 0.61 kg (1.35 lbs)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
Radial ProD2 Passive Direct Box Includes
- Radial ProD2 Passive Direct Box
- User Guide
- Manufacturer Warranty
