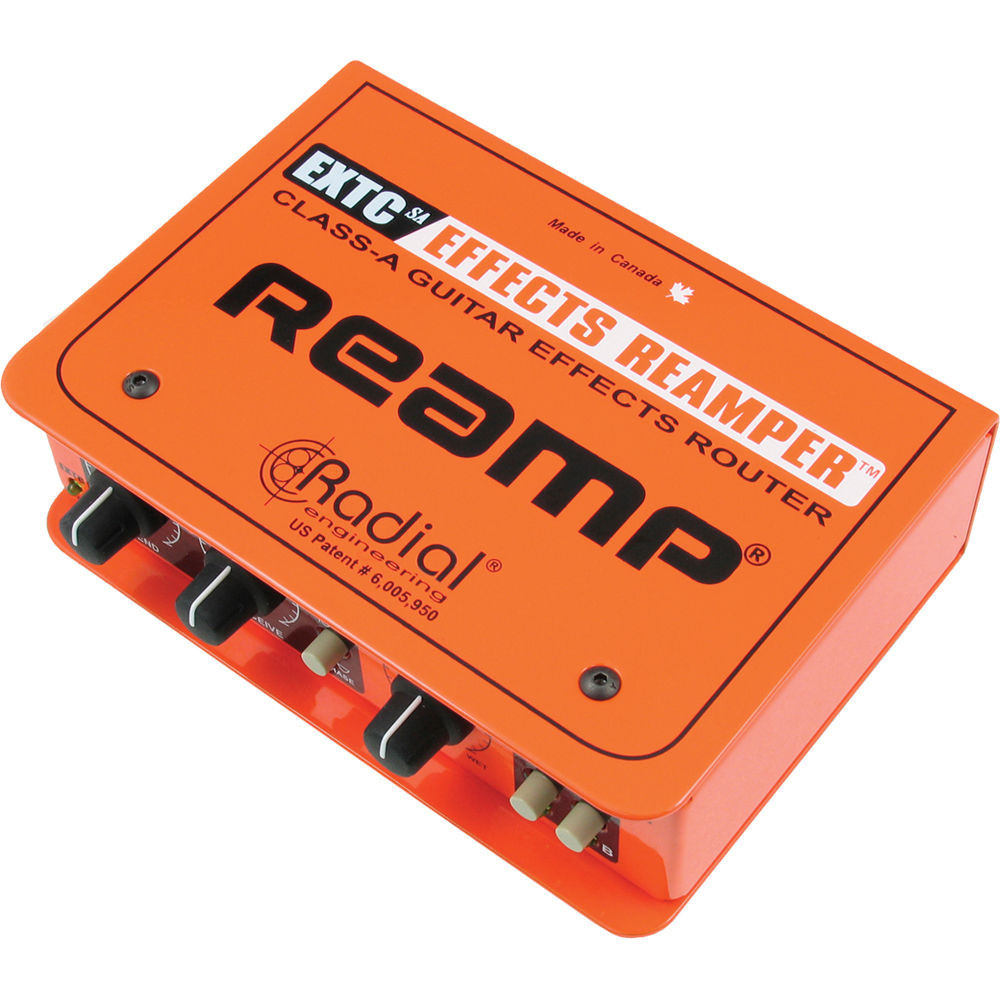

Radial EXTC SA Effects Reamper (B-Stock)

Front End Audio has a fantastic deal on this factory direct B-Stock unit, and stock is limited! Radial quality control has deemed this as "B-Stock" so expect a minor cosmetic flaw or blemish. But, rest assured that this will have absolutely no impact on the functionality or performance of this unit. Radial fully inspects and tests every B-Stock product AND they are covered by a full manufacturer warranty. This is your opportunity to grab a great deal on an otherwise "just like new" EXTC SA from Radial!

The Radial EXTC SA Effects Reamper is a powerful studio tool designed to seamlessly integrate guitar pedals and stompbox effects into professional recording, mixing, and reamping workflows. By properly matching impedance and level between balanced line-level gear and unbalanced instrument-level effects, the EXTC SA lets you use your favorite pedals on vocals, drums, synths, guitars, bass, and full mixes—without noise, distortion, or tonal compromise. It’s the perfect bridge between the studio and the pedalboard. Built with Radial’s renowned engineering and sonic transparency, the EXTC SA features a Class-A reamp circuit feeding pedals at the correct level, followed by a high-headroom balanced return path back into your DAW or console. A variable wet/dry mix control enables true parallel processing, while send and receive level controls allow precise gain staging. Transformer isolation and ground-lift options ensure hum-free operation, making the EXTC SA a must-have creative tool for modern hybrid studios.

Radial EXTC SA Effects Reamper Features

• Professional effects reamper for integrating guitar pedals into studio workflows
• Converts balanced line-level signals to proper instrument-level for pedals
• Class-A reamp circuit delivers authentic pedal feel and response
• Balanced return path for clean, high-headroom signal back to your DAW or console
• Wet/dry mix control for true parallel processingSend and receive level controls for precise gain staging
• Transformer isolation and ground lift eliminate hum and noise
• Works with pedals, stompboxes, and unbalanced effects loops
• Ideal for vocals, drums, guitars, bass, synths, and mix processing
• Rugged Radial steel enclosure built for studio and touring use

Radial EXTC SA Effects Reamper Applications

• Reamping through Pedals - Take a dry track, send it to the Radial EXTC SA which in turn feeds your pedals. This is the perfect way to add some extra zest to a vocal track; an envelope follower to a kick; or some wah to that Hammond.
• Reamping with the EXTC - The Radial EXTC SA is well suited for Reamping. Simply connect the pre-recorded channel to the Radial EXTC SA and then split the signal off to two amps using the send connectors. You are set to go!

Radial EXTC SA Effects Reamper Specifications

• Circuit Type: Solid state with transformer coupled effects loop
• Power Requirement: 60mA, ±16VDC
• Output Gain:
  • 12dB - send & receive at maximum
  • 6dB - send minimum/receive maximum
  • 0dB - send & receive set at 12 o'clock
• Frequency Response: (Dry) 20Hz ~ 20kHz ±1.5dB, (Wet) 20Hz ~ 10kHz ±3.5dB (-8dB @ 20kHz)
• THD+N: (Dry) >0.005% 0dB output, (Wet) >0.002% 0dB output
• Noise: (Dry) -93dB, (Wet) -84dB
• Intermodulation Distortion: (Dry) >0.003% 0dBu input, (Wet) <0.02% 0dBu input
• Maximum Input: (Dry) +26dBu, (Wet) +20dBu
• Effects Loop I/O:
  • Connector: (Send 1/4" Output) Unbalanced ¼", (Receive 1/4" Input) Unbalanced ¼"
  • Impedance: Send 1/4" Output: 1.5k Ohms, Receive 1/4" Input: 10K Ohms
  • Gain (Variable): (Send 1/4" Output) From -14dB ~ +3dB 0dB at center point, (Receive 1/4" Input) From -99dB ~ +9dB 0dB at center point
  • Maximum Gain: (Send) 1/4" Output: ±3dB, (Receive) 1/4" Input: +9dB

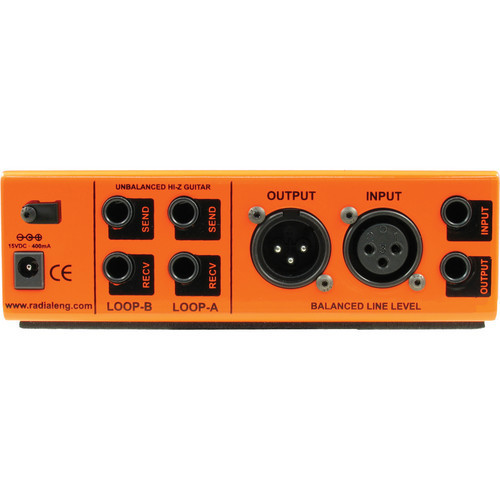

• Line Level I/O:
  • Connector: (Input) Balanced XLR Female, Rear Panel, (Output) Balanced XLR Male, Rear Panel
  • Impedance: (Input) 15k Ohms, (Output) 200 Ohms
  • Headroom: (Output) +25dBu
• Conditions: For indoor use at temperatures between +5° c and +40° c

Radial EXTC SA Effects Reamper Includes

• Radial EXTC SA Effects Reamper
• User Guide
• Manufacturer Warranty
