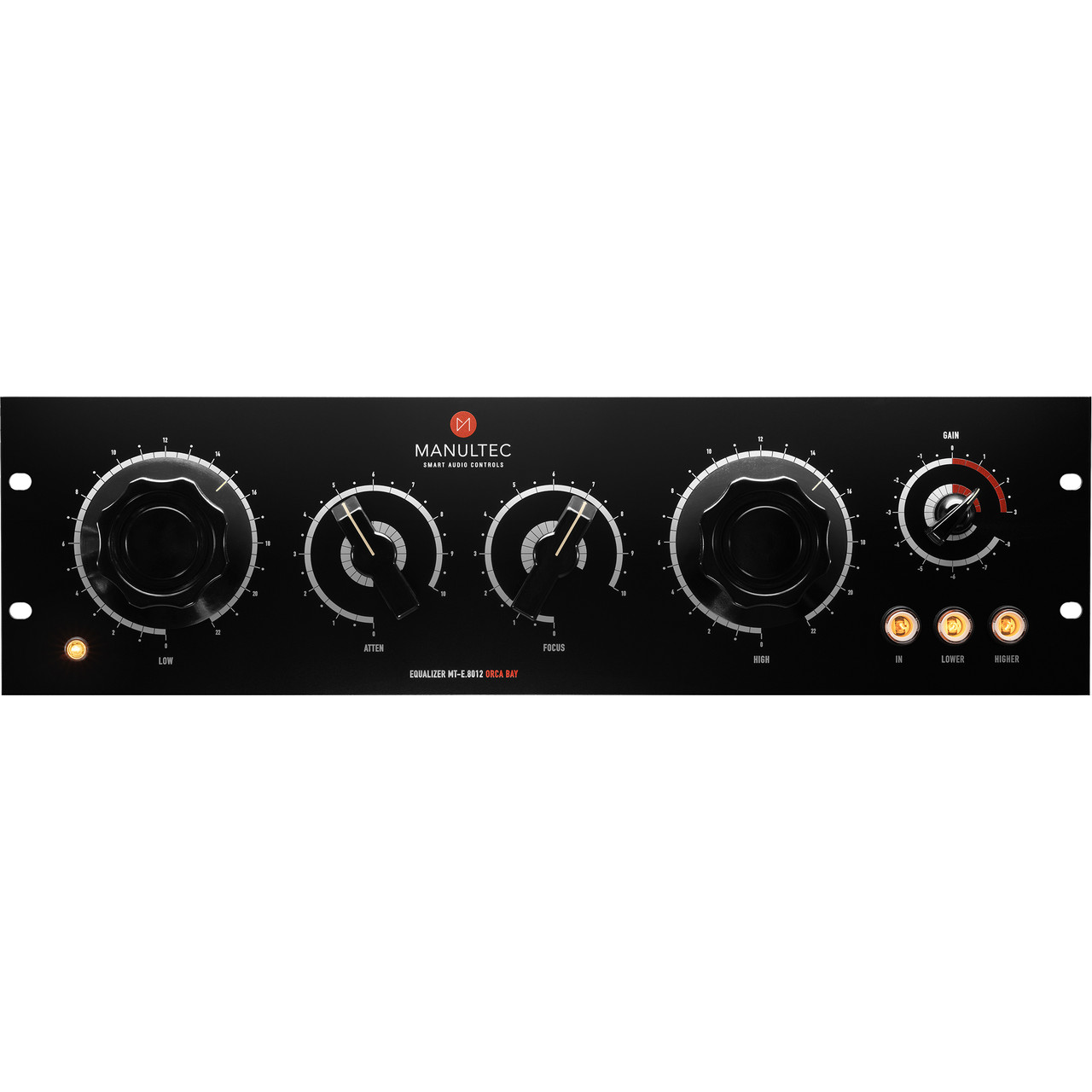

The Manultec MT-E.8012 Orca Bay Mastering Equalizer is the new flagship analog hardware and stands out with unique sonic character only met by its exquisite beauty. This is the Mastering Version where all switches are stepped for "total recall" in the unit!
It takes the knowledge and research we cultivated in the last years to the next level, by re-examining every detail to enhance sound and feel. Manultec´s sophisticated circuit provides ultra tight low end and vibrant dynamic projection to highlight the distinct sound of the Orca. The minimal, yet beautiful design offers a timeless appearance and makes this equalizer an absolute joy to use.
Manultec MT-E.8012 Orca Bay Equalizer
- Powerful stereo solid state equalizer with all passive tone sculpting circuit
- Manufactured with premium selected components
- Ease of operation through clearly arranged interface design
- Antique bakelite knobs for comfortable handling (New Old Stock)
- Subbass meter “DUBBY’s Lämple” indicating low frequency content
- Hand-crafted in Germany

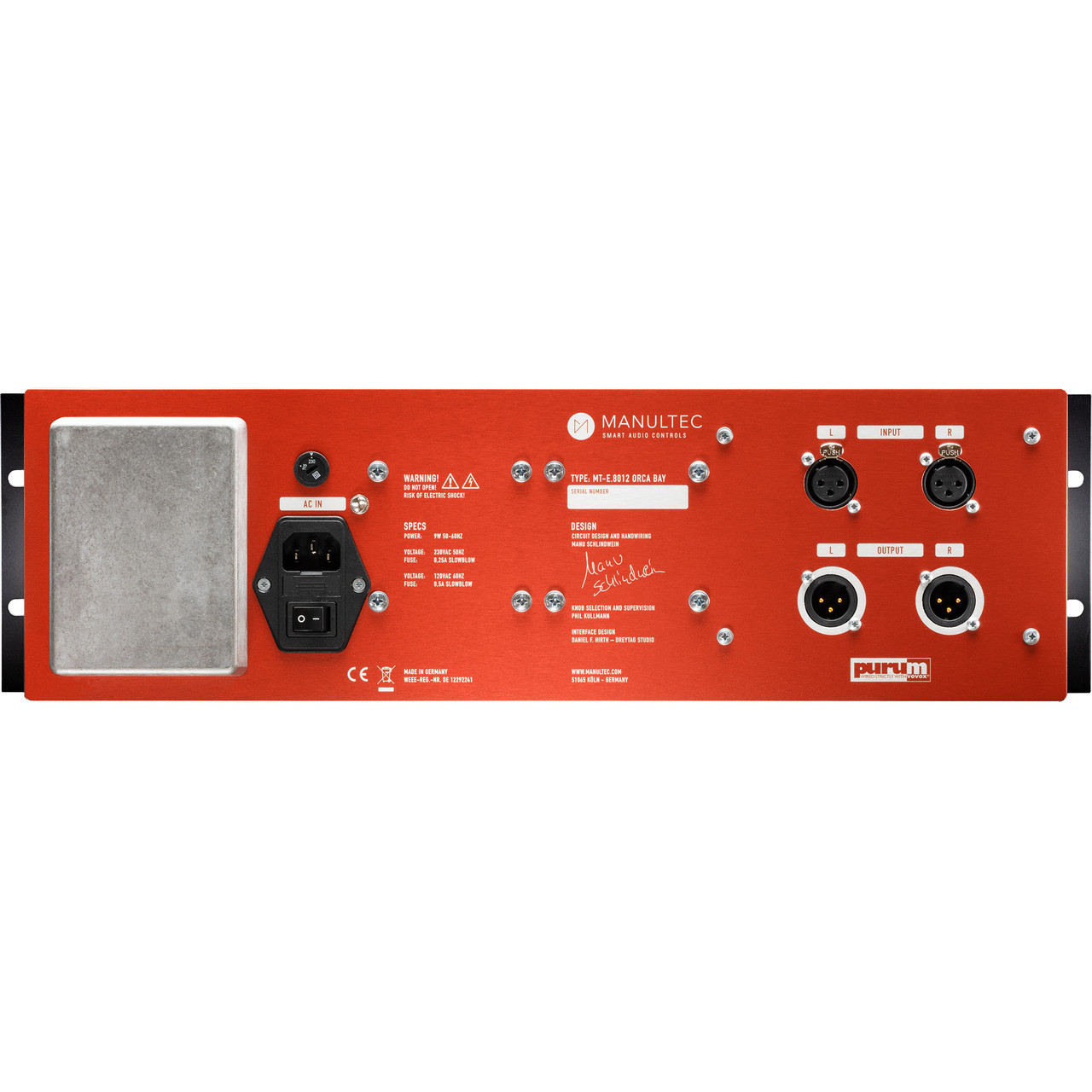

- Transformer balanced in- and outputs
- Hand-wound inductors for high boost
- Discrete opamp make-up gain powers the output transformers
- Able to handle high levels without overloading, the Gain control in 1/2 dB steps is placed • before the output amplifier
- Strictly handwired with VOVOX sound conductors (purum certified)
- Available in two versions:
- Standard Edition: LOW, HIGH, GAIN are stepped switches, ATTEN, FOCUS are potentiometers
- Mastering Edition: All switches are stepped for "total recall"
Manultec MT-E.8012 Orca Bay Equalizer
- Input Impedance: > 12 kΩ (transformer balanced with current booster)
- Input Level (max): + 27 dBu (1% THD)
- Output Level (max): + 29,5 dBu (1% THD)
- Noise: -87 dBu (IEC-A, GAIN position @ +3 dB)
- Dynamic Range: 114 dB (GAIN position @ +3 dB)
- Frequency Response: 6 Hz - 70 kHz (0/-1 dB) / 20 Hz - 20 Khz (+/-0,2 dB)
- Mains Voltage: 120V or 240V
- Dimensions (W x H x D): 483 x 133 x 147 mm (19” / 3U)
- Weight: 4,5 kg
