The HEDD Type 40 Main Studio Monitors bring flagship monitoring performance to professional recording, mixing, and mastering studios in a remarkably compact, full-range design.
Taking over from the acclaimed TYPE 30 MK2, these powerful three-way active studio monitors combine HEDD's signature hand-built Air Motion Transformer (AMT) tweeter, high-performance midrange drivers, and a massive high-excursion woofer to deliver exceptional clarity, precise imaging, and deep, controlled bass response. With 1300 watts of DSP-controlled amplification per speaker, advanced HEDD Lineariser technology, and a sealed cabinet design that reaches all the way down to 20 Hz, the Type 40 Main delivers the authority and accuracy of a large-format main monitoring system without demanding a massive control room. Whether you're making critical mastering decisions, dialing in the perfect mix, or simply wanting to hear every detail of your recordings, the Type 40 Main provides the confidence to get it right. At the heart of the HEDD Type 40 Main is an advanced three-way driver configuration featuring a 10¾-inch high-excursion woofer, dual 4-inch midrange drivers, and Klaus Heinz's renowned Air Motion Transformer tweeter. The symmetrical D'Appolito MTM arrangement positions the AMT between the two midrange drivers, creating a focused acoustic center with controlled vertical dispersion and a consistent horizontal listening window. This carefully engineered design helps minimize unwanted floor and ceiling reflections while delivering exceptional stereo imaging and accurate instrument placement. The fully sealed enclosure provides tight, articulate low-frequency reproduction with excellent pitch definition, making it easier to evaluate kick drums, bass guitars, and sub-bass information without relying on a separate subwoofer. The result is a truly full-range reference monitor that offers outstanding performance in professional control rooms, including spaces around 20–30 square meters. The Type 40 Main also incorporates HEDD's sophisticated DSP processing and Lineariser technology, providing precise control over frequency response, phase alignment, and transient accuracy. The Lineariser's zero-phase mode uses advanced FIR-based processing to time-align the drivers, creating a coherent acoustic response with exceptional imaging and detail. Additional operating modes include Flat for frequency-response correction without phase linearization and Off for minimum latency during tracking and real-time performance. HEDD CTRL software adds convenient remote system management, allowing engineers to adjust monitor settings, optimize performance for their listening environment, and save presets for different workflows. Balanced analog XLR and digital AES/EBU connectivity provide flexible integration into modern studio systems, while onboard shelving and desk filters offer additional room-tuning capabilities. And when your studio needs even more output and low-frequency headroom, the modular Type 40 platform can expand with up to three optional Type 40 XTD extension modules per side. Designed and assembled in Berlin, the HEDD Type 40 Main represents a serious monitoring solution for engineers who demand uncompromising accuracy, powerful performance, and room to grow.
HEDD Type 40 Main Studio Monitors Features
- Flagship three-way active main studio monitoring system designed for professional recording, mixing, and mastering applications
- Matched left and right monitor configuration for precise stereo imaging and consistent performance
- Expandable with up to 3 XTD modules per channel
- Hand-built HEDD Air Motion Transformer tweeter delivers exceptional high-frequency detail, fast transient response, and outstanding clarity
- High-excursion woofer provides deep, controlled bass reproduction without requiring an external subwoofer
- Dual midrange drivers arranged in a symmetrical D'Appolito MTM configuration for focused imaging and controlled dispersion
- Fully sealed cabinet design delivers tight, articulate low-frequency performance with excellent pitch definition
- Dedicated Class D amplification provides exceptional headroom and dynamic performance
- Advanced onboard DSP processing optimizes driver integration and overall monitoring accuracy
- HEDD Lineariser technology corrects phase response and driver timing for improved transient reproduction and stereo imaging
- Selectable Lineariser operating modes accommodate critical listening, mixing, tracking, and real-time monitoring
- HEDD CTRL software enables convenient remote adjustment, system configuration, and preset management
- Selectable low-frequency operating modes optimize performance for different monitoring requirements
- Integrated high- and low-frequency shelving filters and desk compensation provide flexible acoustic tuning
- Balanced analog and digital connectivity allows seamless integration into professional studio environments
- Signal-through connections simplify integration with additional monitoring components
- Modular system architecture supports expansion with optional Type 40 XTD modules for increased low-frequency headroom and output
- Flexible installation options accommodate traditional monitor placement, custom mounting, and soffit installations

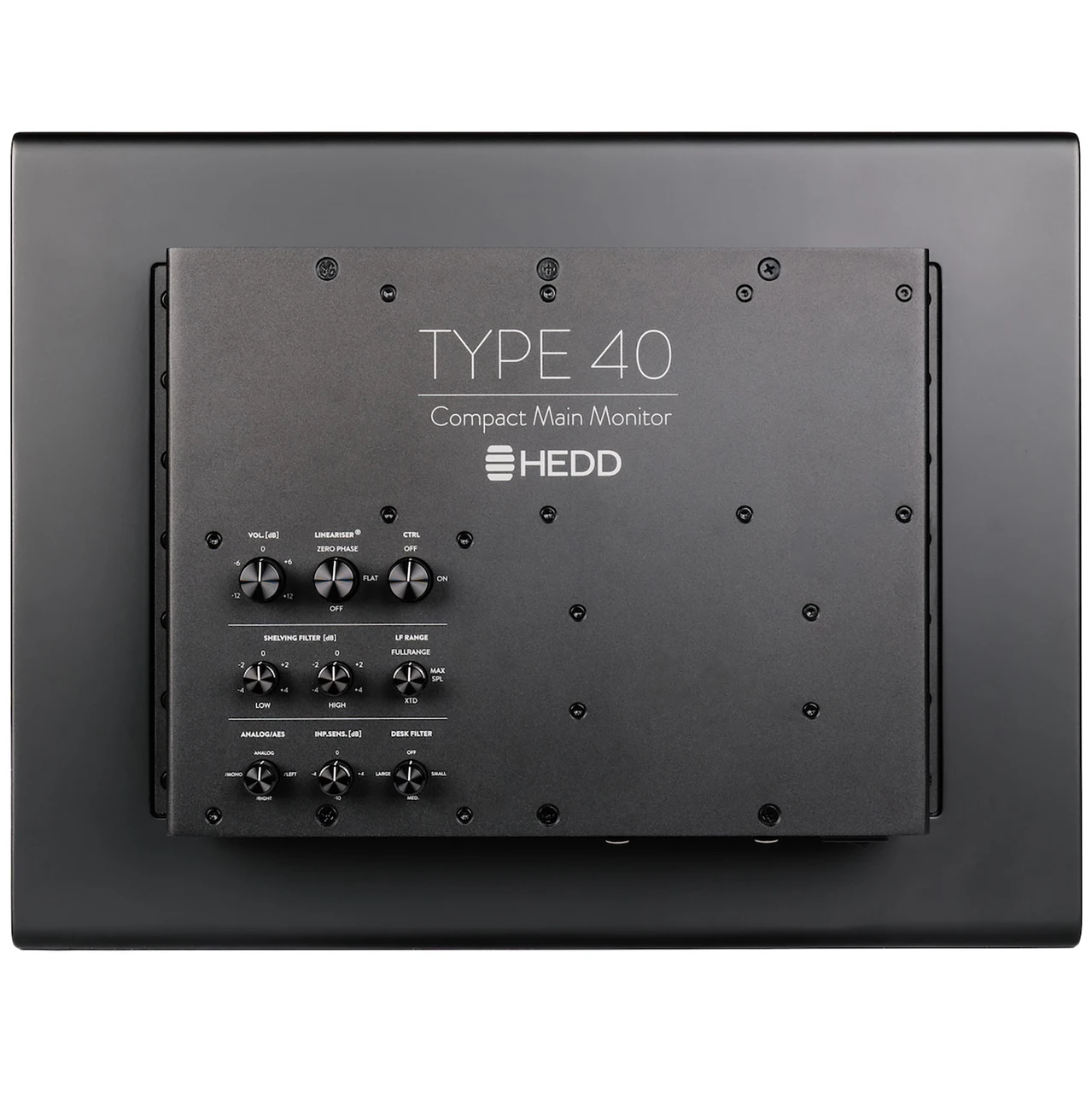

- Detachable amplifier back panel simplifies integration into custom studio installations
- Premium components and meticulous Berlin assembly ensure professional reliability and consistent performance
- Individually tested before shipping to maintain HEDD's demanding quality standards
HEDD Type 40 Main Studio Monitors Specifications
- Monitor Type: Active three-way main studio monitor
- Low-Frequency Driver: 10¾-inch Ultra-High Performance Subwoofer
- Midrange Drivers: 2 × 4" midrange drivers
- High-Frequency Driver: Hand-built AMT
- Amplification: 3 × ICEpower Class D amplifiers per monitor
- Low-Frequency Amplifier Power: 700 W
- Midrange Amplifier Power: 300 W
- High-Frequency Amplifier Power: 300 W
- Total Amplifier Power: 1300 W per monitor
- Crossover Frequencies: 250 Hz / 2.8 kHz
- Frequency Range: 20 Hz–40 kHz, free-field (-3 dB)
- Maximum SPL: 108 dB SPL at 50 Hz, 1 m; 123 dB SPL (peak)
- Analog Input: Balanced analog XLR (greater than 20 kΩ)
- Digital Input: AES/EBU XLR
- Analog Output: XLR Through
- Digital Output: AES/EBU XLR Through
HEDD Type 40 Main Studio Monitors Include
- HEDD Type 40 Main Studio Monitors (Matched Pair)
- Power Cables
- Manual & Documentation
- Manufacturer Warranty
