Drawmer MC1.1 Monitor Controller

(No reviews yet) Write a Review
Product Code: 9999-08798
Drawmer MC1.1
Ships From Manufacturer

This item ships directly to you from the manufacturer so give us a day or two to get it heading your way. Go ahead and place your order and we will let you know as soon as it ships. If you have a deadline then please contact us before placing the order so we can meet your expectations.

Drawmer MC1.1 Monitor Controller

The Drawmer MC1.1 Monitor Controller offers the same fantastic sound as the Drawmer 2.1 but with a revised feature set more suitable for a less complex post production or home use where multiple speakers are not required. With the addition of an RIAA phono stage, the MC1.1 is a great solution for your precious turntable setup.

The Drawmer MC1.1 Monitor Controller is the new sibling the MC2.1 Monitor Preamp. Hot on the heels of the Drawmer MC2.1 well known for its functionality and transparency, the new Drawmer MC1.1 Monitor Controller comes with new exciting features.

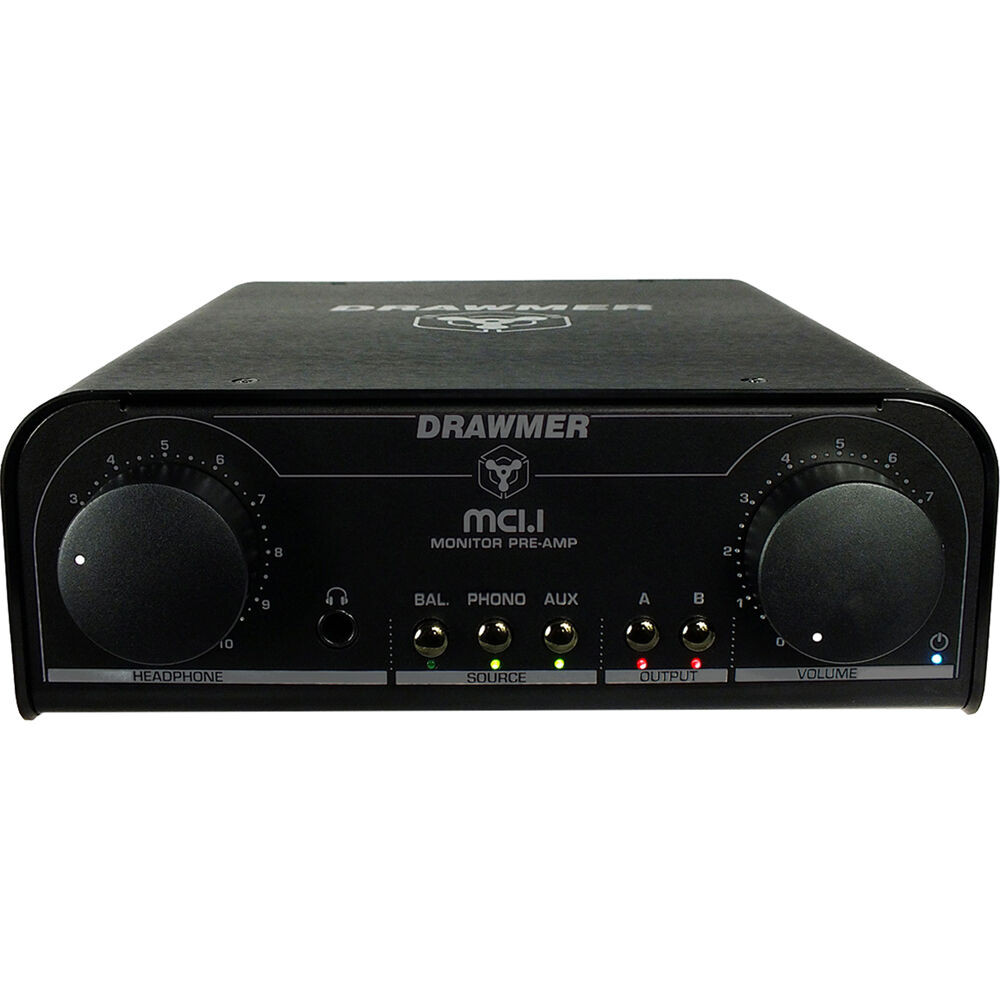

The front panel is dominated by the two large, independent volume controls for the main line outs and the headphone amplifier, both incorporate a paralleled custom quad pot for excellent channel matching and the smoothest possible action. There are also individual switches for each input source and output section making an elegantly simple yet functional user interface.

Drawmer MC1.1 Monitor Controller Features

  • Ultra low noise and transparent circuit design
  • Linear power supply with low hum toroidal transformer and internal voltage selector switch

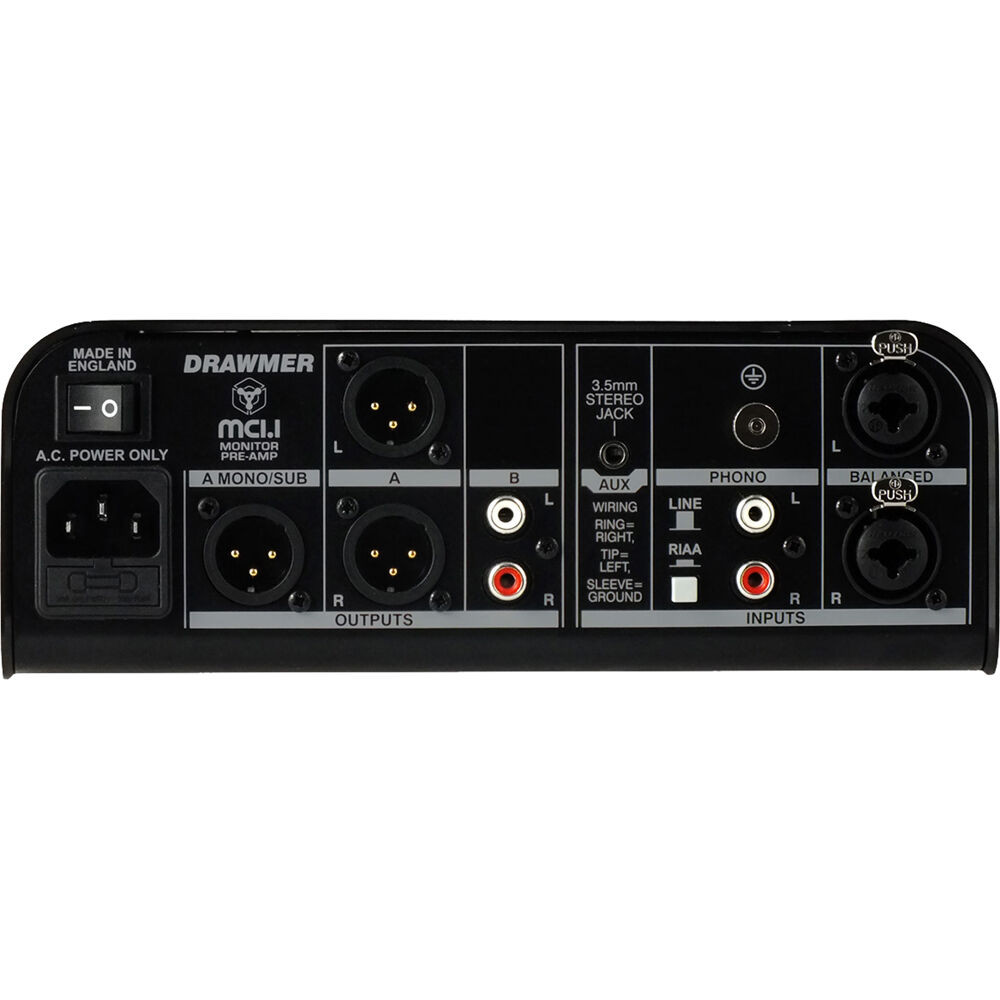

  • 3 Input Sources - Balanced XLR, MP3 Player 3.5mm Jack & Switchable Line/Phono (RIAA MM) RCA
  • Two switchable output stages, Balanced XLR and RCA
  • Mono Sub woofer output available simultaneous to balanced outs
  • Parallelled custom quad pots on main and headphone level controls for excellent channel matching and smooth feel
  • Independent volume controls for the main outputs and headphone section
  • Rugged steel chasis and stylish brushed aluminium cover
  • Can be stacked and is rack mountable (with the MCB 2U mounting kit)
  • Designed and manufactured by Drawmer in the UK

Drawmer MC1.1 Monitor Controller Specifications

  • Maximum Input Level: 21dBu
  • Maximum Output Level Before Clipping: 21dBu
  • Dynamic Range @ Unity Gain: 118dB
  • Crosstalk L/R @ 1kHz: >85dB
  • THD & Noise @ Unity Gain 0dBu Input: 0,0014%
  • Frequency Response: 20Hz-20kHz, +/-2 Degrees Max
  • Power Requirements: 115V or 230V at 50-60Hz, 20VA, Voltage set by Internal Voltage Switch
  • Fuse Rating: @ 115V: T315mA, @ 230V: T160mA, Conforming to IEC 127-2
  • Fuse Type: 20mm x 5mm, Class 3 Slow-Blow, 250 Volt Working
  • Dimensions: (L x W x H) 272mm x 215mm x 81mm
  • Weight: 2.5 Kg

Drawmer MC1.1 Monitor Controller Includes

  • Drawmer MC1.1 Monitor Controller
  • Power Cord
  • User Manual
  • 1 Year Warranty

Drawmer MC1.1 Monitor Controller Downloads

Click here to view all Drawmer products
