The Demeter HDI-1 Stereo Tube Direct Box brings instruments and line-level sources to life with two channels of rich tube tone, exceptional clarity, and studio-ready flexibility.
Whether you are recording bass, guitar, keyboards, drum machines, or sending digital tracks through analog tubes for added warmth, the HDI-1 delivers a full, natural sound without sacrificing detail or transient response. Designed around Demeter’s tube-driven, ultra-high-impedance input stage, the HDI-1 presents instrument pickups with a 27-megohm load to minimize loading and preserve their natural harmonic character. Each independent channel provides its own 1/4-inch input, ground lift, phase reverse, unity-gain operation, and tube-driven boost mode. The continuously variable level control makes it easy to add up to 20 dB of gain when working with lower-output sources. The HDI-1 is equally useful as a stereo tube DI and a line-level processor. Its balanced outputs can feed recording equipment directly, while the front-panel low-impedance tube-buffered outputs can drive amplifiers, effects, or long cable runs. A fully regulated internal power supply helps maintain quiet operation while supplying the high voltage required for proper tube performance. Hand-built in the USA, the Demeter HDI-1 is a versatile analog front end for recording studios, live rigs, and hybrid mixing setups.
Demeter HDI-1 Stereo Tube Direct Box Features
- Two independent tube direct box channels
- Ultra-high-impedance inputs preserve instrument tone and pickup response
- Suitable for guitar, bass, keyboards, drum machines, samplers, and other electronic instruments
- Can process line-level sources to add tube warmth to digital recording systems
- Individual ground-lift and phase-reverse controls for each channel
- Selectable unity-gain and tube-driven boost operating modes
- Continuously variable output level control in boost mode

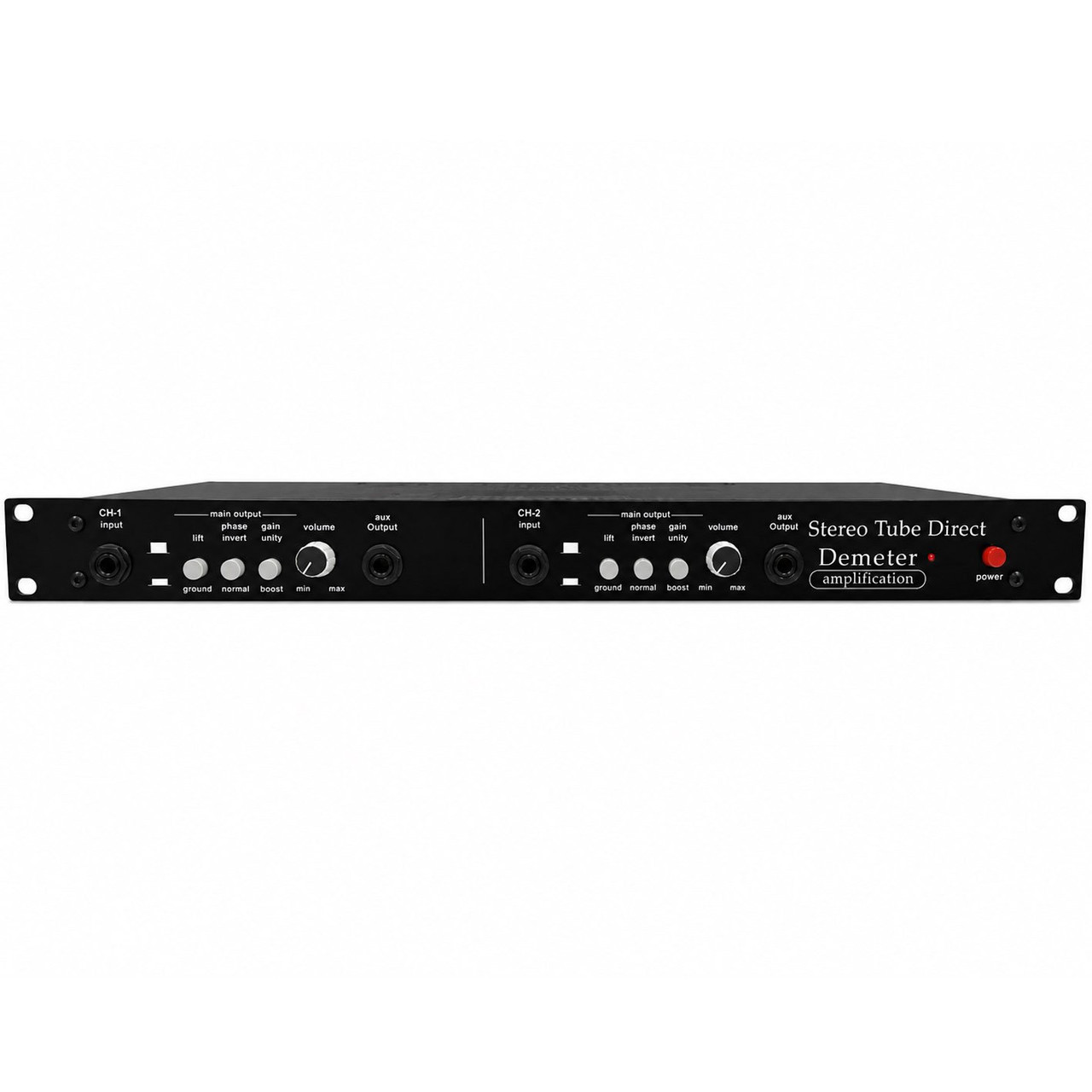

- Front-panel low-impedance tube-buffered outputs for amplifiers and effects

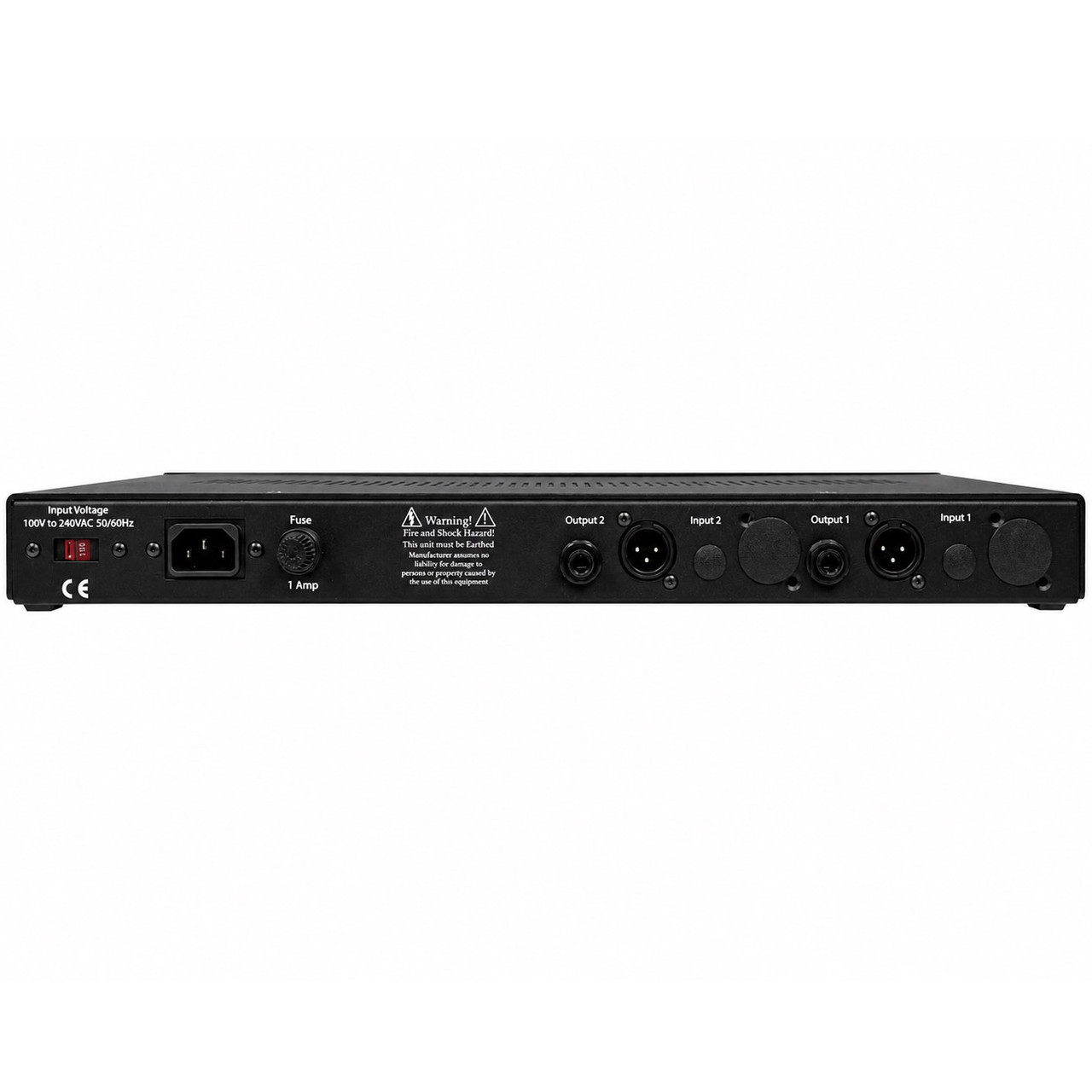

- Balanced rear-panel outputs for direct connection to professional recording equipment
- Fully regulated internal power supply for low-noise performance
- Hand-built in the USA
Demeter HDI-1 Stereo Tube Direct Box Specifications
- Input impedance: 27megohms
- Output impedance: 50ohms
- Bandwidth: 20 to 20KHz
- Signal to noise: – 98dB
- Gain: 20dB/unity
- Output: @ 600ohms + 28dB
- Tubes: 2-2AX7a
- Outputs: TRS 3-pin rear, 1/4″ mono front
- Operating voltage: 230/115V AC
Demeter HDI-1 Stereo Tube Direct Box Includes
- Demeter HDI-1 Stereo Tube Direct Box
- Power Cable
- User Documentation
- Manufacturer Warranty
