The Avantone MixCubes Active Mini-Reference Monitor gives engineers a focused second opinion when a mix needs to translate beyond the studio. This version features a traditional cream finish.
This compact, self-powered reference monitor is designed to emphasize the critical midrange and help reveal balance problems that can hide on full-range studio monitors. By approximating the limited-bandwidth playback experience of car stereos, televisions, computers, portable speakers, and other everyday listening systems, MixCubes provide a practical reality check for mixing and mastering decisions. Avantone developed the active MixCubes around a proprietary 5.25-inch full-range driver featuring a cast aluminum frame and a specially crafted paper cone. The single-driver design eliminates a crossover from the signal path, providing a direct, coherent presentation that makes it easier to concentrate on vocals, guitars, snare, keyboards, and other mix elements occupying the all-important midrange. Each monitor also incorporates its own Class A/B amplifier, eliminating the need for an external power amp and making the system easy to integrate into professional studios, production rooms, and mobile setups.The sealed 18mm MDF enclosure is compact enough to fit where another conventional monitor system may not, while a recessed 5/8"-27 microphone stand mount provides additional placement flexibility. A neoprene pad built into the base helps provide a stable, acoustically isolated surface when the monitors are placed on a desk, console bridge, or other work surface. Whether you are checking vocal placement, balancing instruments, judging intelligibility, or simply making sure a mix holds together on smaller playback systems, the active MixCubes provide a revealing perspective that complements your main studio monitors.
Avantone MixCubes Active Mini-Reference Monitor Features
- Active, self-powered
- Provides an alternate monitoring perspective for evaluating real-world mix translation
- Full-range single-driver design avoids the need for a crossover
- Proprietary 5.25-inch driver with cast aluminum frame and paper cone
- Built-in Class A/B amplification eliminates the need for an external power amplifier
- Designed for focused evaluation of critical midrange mix content
- Sealed 18mm MDF cabinet helps minimize unwanted enclosure resonance
- Compact cube design fits easily into crowded studio and desktop environments
- Integrated neoprene base pad provides skid resistance and acoustic isolation
- Recessed 5/8"-27 microphone stand mount offers flexible placement options
- Shielded design supports use in a variety of professional monitoring environments
- Balanced and unbalanced connectivity accommodates professional and consumer-level sources
Avantone MixCubes Active Mini-Reference Monitor Specifications
- System Type: Active (Self-powered) shielded full-range stereo pair
- Frequency Response: 200 Hz - 10 kHz
- Impedance: Nominal 8 ohms
- Max SPL: 104db @ 1 meter = 1%THD (PINK NOISE)
- Amplifier Type: Class A/B
- Amplifier Power: 60 watts RMS@ .005% THD (1KHz)
- Amp Frequency Response: 22Hz-50KHz +0dB/- 3dB (90Hz-50KHz +/-0dB)
- Noise: S/N -113 dB
- Sensitivity: 0dBu (.775VRMS) input at maximum volume (+6dB) = 104dB SPL
- Driver: Proprietary design 5.25" cast aluminum frame / paper cone / shielded
- Cabinet: sealed / 18mm MDF / Dacron acoustical stuffing
- Inputs: XLR & TRS (COMBO JACK) +4/Balanced and -10 unbalanced
- Weight: 7.13lbs (per monitor)
- Dimensions: 6.5" x 6.5" x 6.5" (per monitor)
Avantone MixCubes Active Mini-Reference Monitor Includes
- Avantone MixCubes Active Mini-Reference Monitor

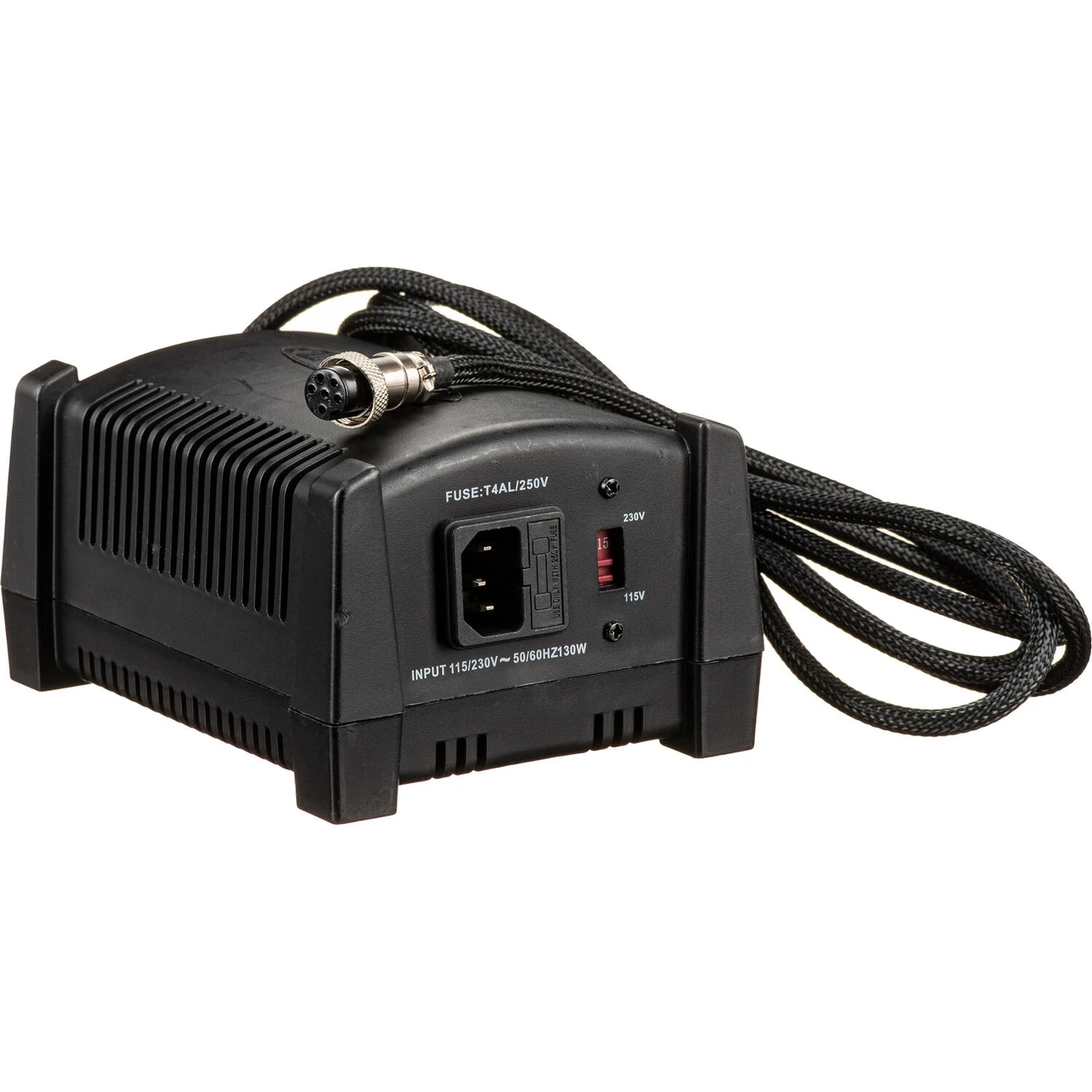

- Power Supply
- Power Cable
- Manufacturer Warranty
1 Review Hide Reviews Show Reviews
-
Much needed!
Oct 10th 2014The Avantone mixcube is a powerful mixing tool for me. We broke it in with the song "Kung-Fu Fighting" by Carl Douglas. This song had all the necessary elements for the 48-hour break-in period. The downfall was my wife's inability to stop humming the song out loud! But alas, the mid range focus is invaluable!
