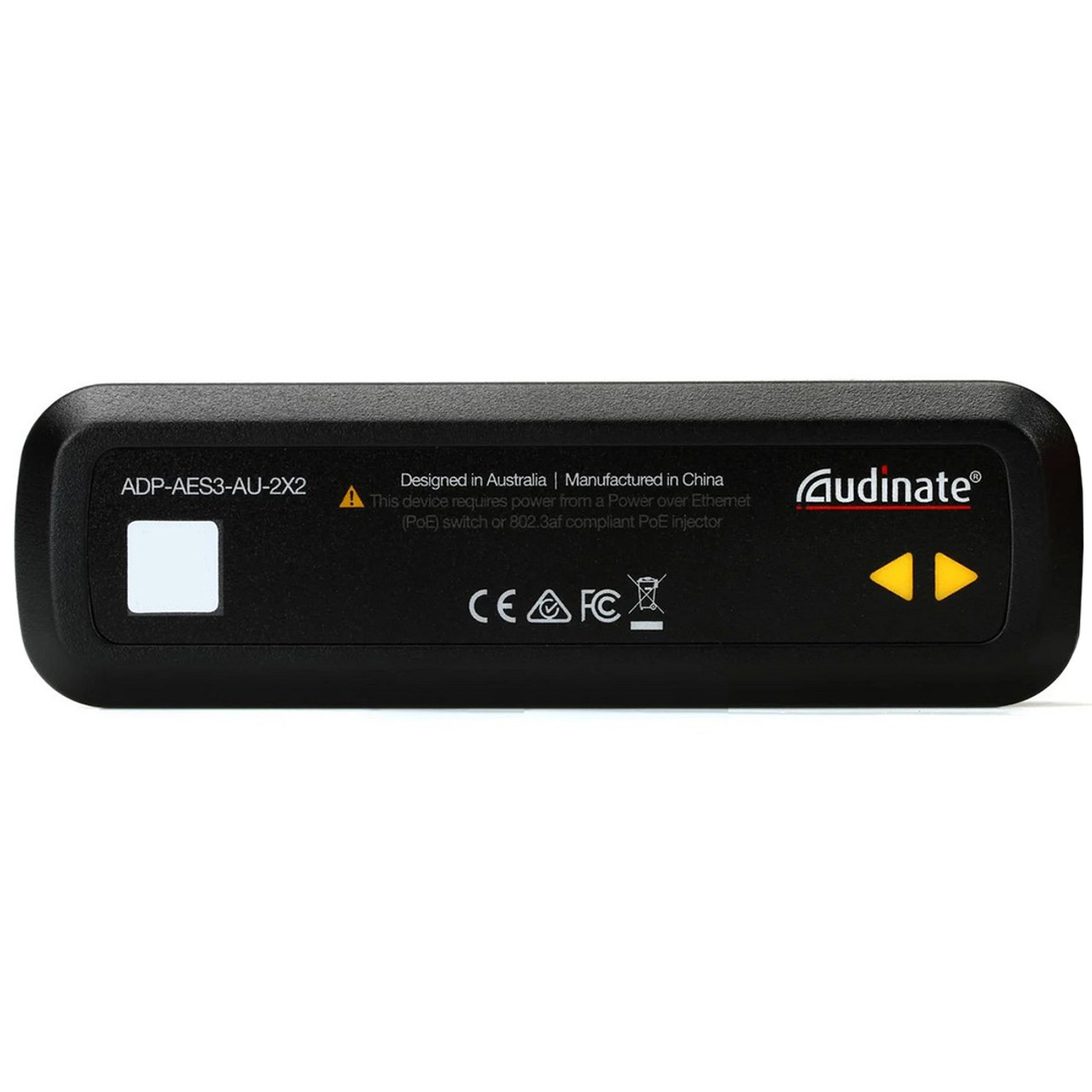

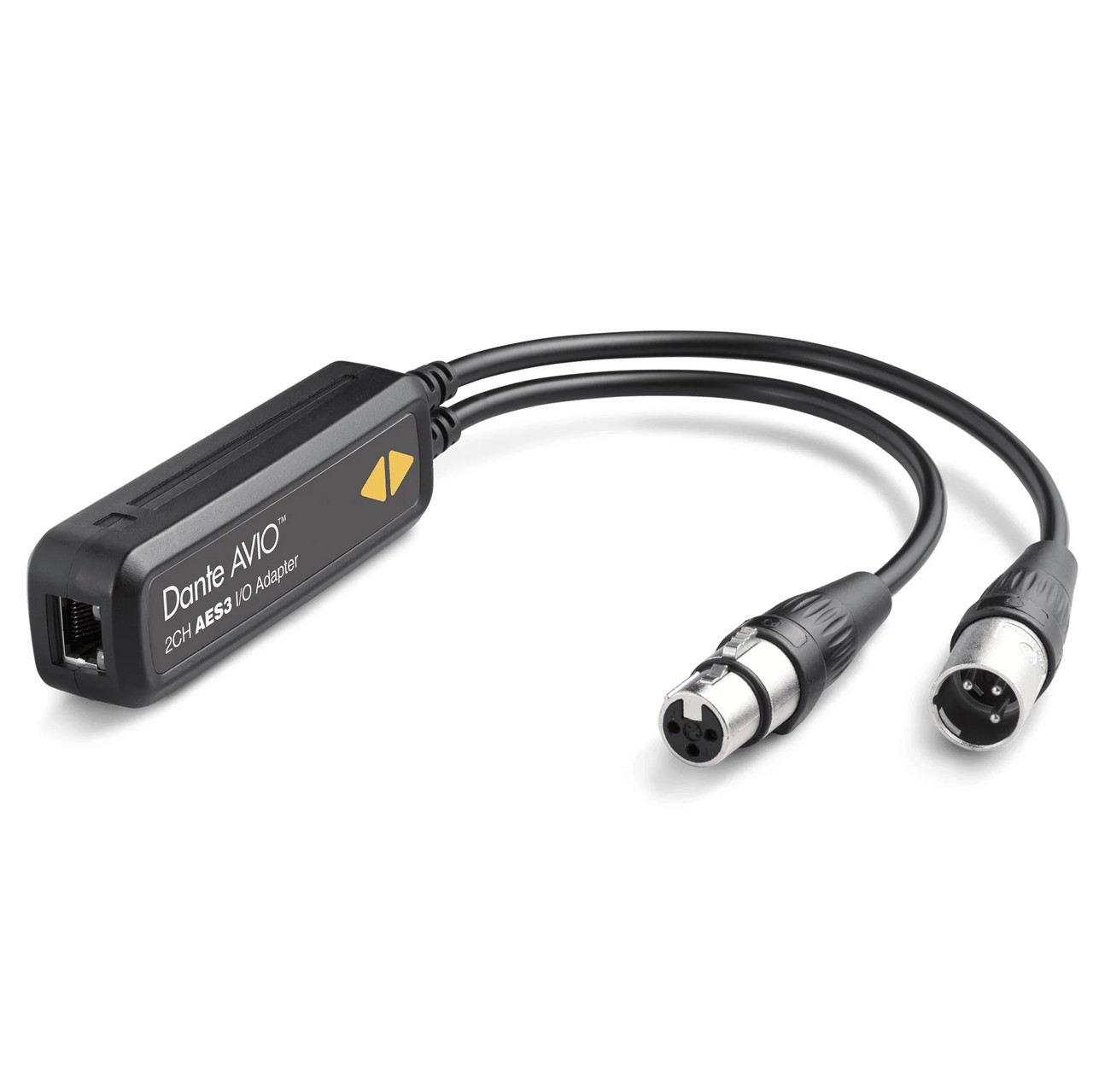

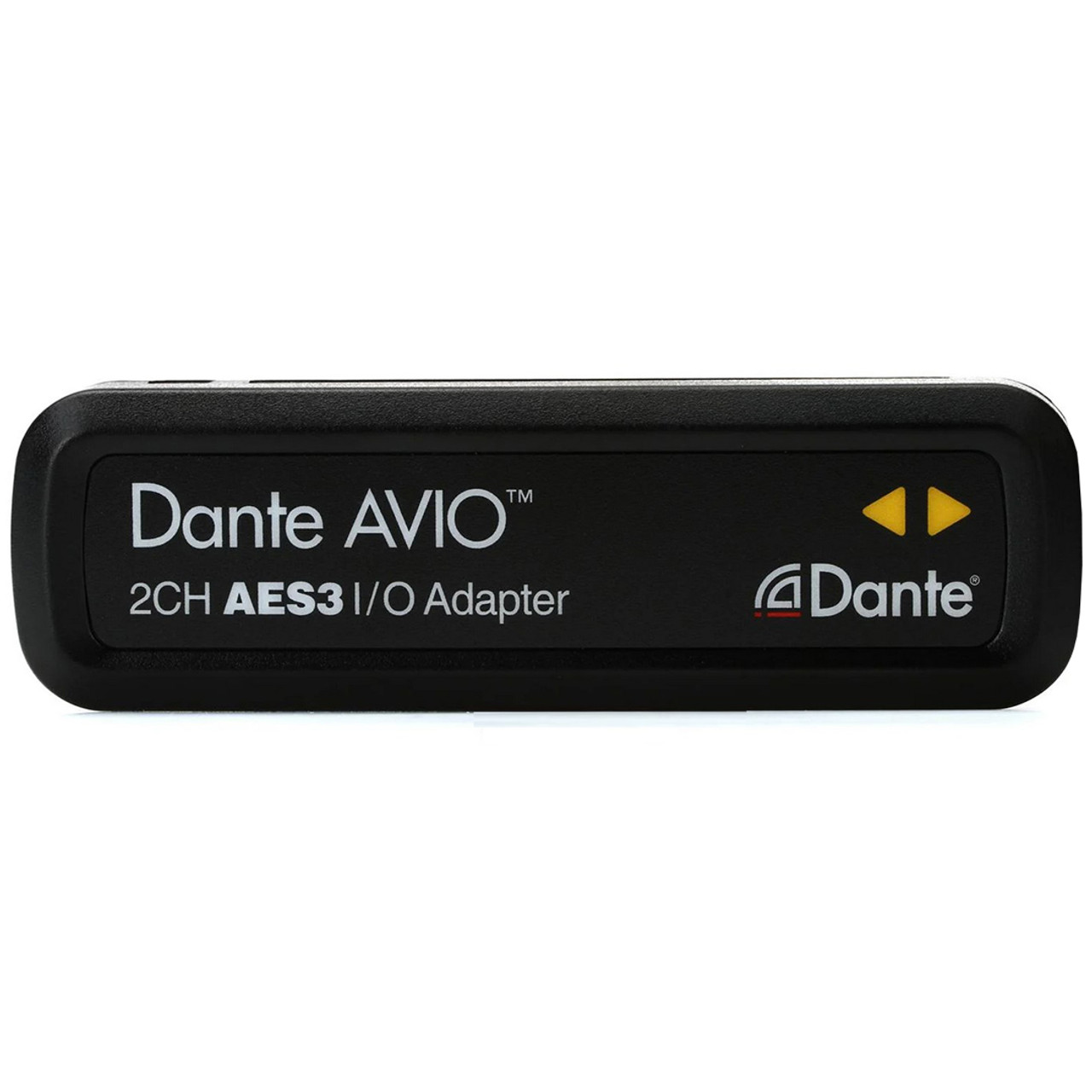

The Audinate AVIO Dante 2x2 AES3 Adapter allows you to bring any AES2 device into the Dante Network with 2 inputs and 2 outputs in a super compact and easy to use device!

The Dante AVIO AES3/EBU Adapter supports 2 x 2 channels, with high- quality XLR input and output connectors and built-in asynchronous sample rate conversion. Use the AES3 Dante AVIO Adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more. Cost effective, compact and built for the road, the Dante AVIO family of adapters bring the modern network connectivity that every audio pro needs in their toolbox. The Dante AVIO AES3 adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide. The Dante AVIO AES3 adapter is automatically discovered and ready to use when  connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch and any Dante AVIO adapter is ready to go.

Audinate AVIO Dante 2x2 AES3 Adapter Features

  • Interface with SDI video systems using AES3 audio.
  • Put your AES3-compatible amplifiers and powered speakers on your Dante audio network.
  • Connect AES3-compatible DSPs to a Dante network
  • Connect AES3-compatible microphone preamplifiers to a Dante network
  • Plug & play operation
  • Built for the road
  • Sample rates up to 96 kHz
  • 16, 24 and 32-bit audio support
  • Synchronous sample rate conversion
  • Excellent dynamic range, SNR and THD performance
  • Dante Audio over IP and AES67 RTP transport formats
  • Power over Ethernet (PoE) support
  • Dante Domain Manager ready

Audinate AVIO Dante 2x2 AES3 Adapter Specifications

  • Audio channels: 2 in, 2 out
  • Signal to Noise Ratio: > 135dB

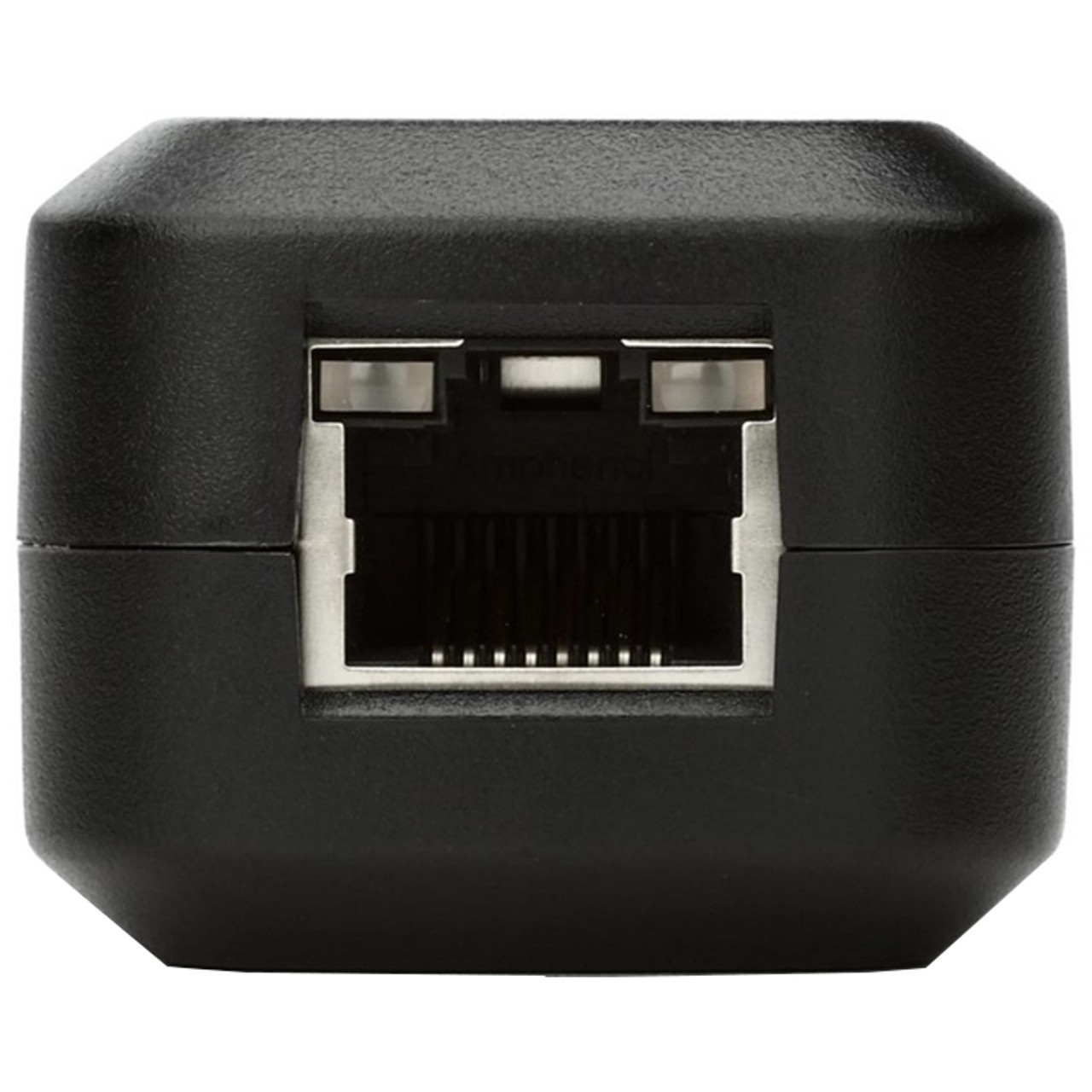

  • Connectors: RJ45, 1 XLR-M, 1 XLR-F
  • Power: Class 1 802.3af PoE
  • Asynchronous Sample Rate Conversion: Yes
  • Sample Rates: 44.1, 48, 96 kHz
  • Bit Depth: 24
  • Dante Device Latency: 1, 2, or 5ms (configurable using Dante Controller)
  • Impedance: 110 Ohm balanced
  • Network Transport: Dante Audio over IP, AES67 RTP

Audinate AVIO Dante 2x2 AES3 Adapter Includes

  • Audinate AVIO Dante 2x2 AES3 Adapter
