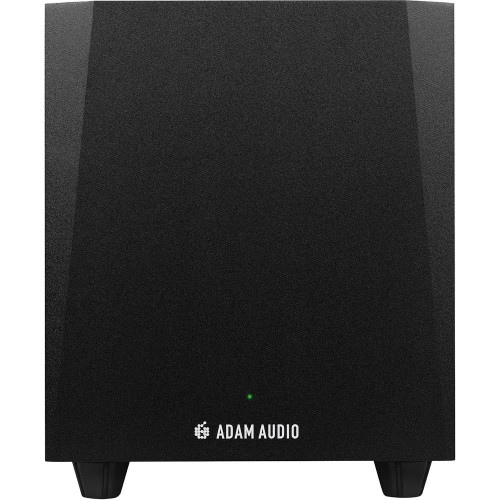

The Adam Audio T10S Studio Subwoofer is a powerful yet compact active subwoofer, designed to extend the bass response of any nearfield studio monitor.
The Adam Audio T10S is a powerful yet compact active subwoofer, with a particularly attractive price/performance ratio, designed for extending the bass range of smaller and medium nearfield monitors. Its dimensions make the T10S especially useful for home studio and semi-professional use. The subwoofer’s performance, features and connectivity are engineered specifically to complement Adam Audio’s T5V and T7V speakers. Equipped with a downward-firing 10˝ woofer, ample sized bass reflex port, and commanding 130 watt Class-D amplifier, the T10S’ frequency response ranges from 28 Hz to 120 Hz and offers an impressive maximum sound pressure level of 104 dB. An adjustable low-pass filter for matching to satellites, automatic or manual on/off, and four acoustically decoupling rubber feet complete the T10S's features. The qualities of the T10S subwoofer have found favor in numerous tests by the international trade press.
Adam Audio T10S Studio Subwoofer Features
- Down-firing 10″ paper-cone woofer: In a compact MDF cabinet, coupled with a rear-facing bass-reflex port and four high-grade rubber feet for tight, floor-decoupled low end in any room.
- True sub-bass reach: Linear response from 28 Hz to 120 Hz (-6 dB) lets you hear—and feel—everything below your near-fields’ cutoff.
- 130 W Class-D RMS amplifier: Delivers up to ≥ 104 dB SPL @ 1 m, giving plenty of clean headroom for modern productions.
- On-board, two-channel DSP crossover: With selectable 80 Hz / 120 Hz / Bypass points plus a 0°/180° phase switch for seamless alignment with any satellite monitors.
- Pro & consumer connectivity: Balanced XLR and unbalanced RCA inputs and filtered thru outputs, with switchable +4 dBu / -10 dBV sensitivity for easy integration.
- Footswitch-ready bypass: For instant A/B checking, plus auto-standby after 15 minutes of silence to save energy between sessions.
- Compact studio footprint: 15.4″ H × 12.5″ W × 16.25″ D and just 27 lb (12.2 kg)—fits comfortably under a desk or console bridge.
- Universal 115 / 230 V power supply: Supports worldwide operation without external converters.
- Low-distortion design: THD of only 0.6 % above 60 Hz keeps your low end tight and accurate.
- Voice-matched to ADAM’s T-Series monitors (T5V, T7V, T8V): For a coherent, full-range 2.1 or 2.2 setup right out of the box.
Adam Audio T10S Studio Subwoofer Specifications
- General Data
- Max. Power Consumption: 190 W
- Input Sensitivity: +4 dBu / -10 dBV
- Bypass: Yes, via footswitch (not included)
- Standby: Yes, activates after 15 minutes with no incoming signal
- Weight: 27 lb (12.2 kg)
- Height x Width x Depth: 15.4″ (390 mm) x 12.5″ (318 mm) x 16.25″ (413 mm)
- Audio Input Connectors
- Analog Inputs: XLR / RCA
- Analog Outputs: XLR / RCA
- Amplification
- Type: PWM
- Amp. Power RMS: 130 W
- Acoustics
- Frequency Response: 28 Hz – 120 Hz (-6 dB)
- THD > 60 Hz: 0.6 %
- Max. SPL at 1 m (hemisphere): ≥104 dB
- Driver
- Basket Diameter: 10″ (260 mm)
- Voice Coil Diameter: 1.5″ (38 mm)
- Cone Material: Paper
- Control Options
- Crossover Frequency: 80 Hz / 120 Hz / Bypass
- Phase Inversion: 0° / 180°
Adam Audio T10S Studio Subwoofer Includes
- Adam Audio T10S Studio Subwoofer
- Power Cable
- Quick Start Guide
- Manufacturer Warranty
