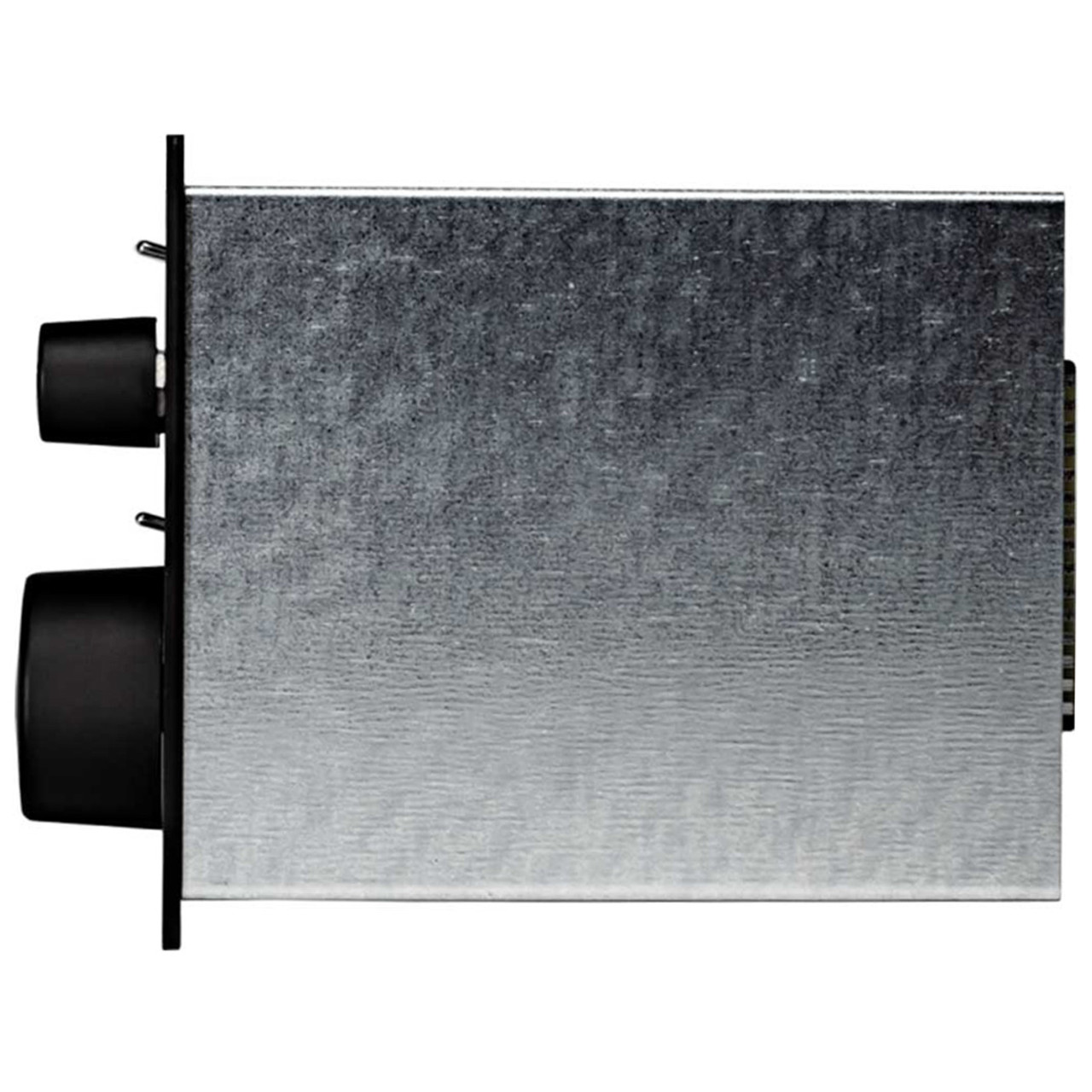

SPL BiG 500-Series Stereo Image Shaper


(No reviews yet) Write a Review
Product Code: 3719
Adding to cart… The item has been added
In Stock

This item is in stock and will ship the same day if ordered prior to 3pm EST Monday - Friday. Otherwise, it will ship the next business day.

Got Questions? Need Support?

888-228-4530 Contact Us!

The SPL BiG 500-Series Stereo Image Shaper is designed to enhance the stereo imaging of your mixes, in a unique intuitive way, all in a compact 2 slot 500 series format.

The SPL BiG 500-Series Stereo Image Shaper enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. Intuitive with just three controls.

The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal. The signal LEDs (Sig) indicate whether an audio signal is present at the input of the respective channel. (With a level higher than -20 dBu). With the Range control, the frequency Range which should be processed can be selected. With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage. The huge BIGNESS control adjusts the intensity of the STEREO IMAGE SHAPING. The BASS/Off switch can be used to activate (BASS) or deactivate (Off) an additional bass boost following the BIGNESS section. The bass boost is performed by a passive filter implemented in a similar circuit to the one used in the AirBass function of the SPL IRON Mastering Compressor.

All SPL devices are developed not only according to plan, but also by ear. All important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.

SPL BiG 500-Series Stereo Image Shaper Features

  • 2 Slot 500 Series Format
  • On/Bypass
  • Signal LEDs
  • Range
  • Stage
  • BASS
  • Great Sound
  • Made in Germany

SPL BiG 500-Series Stereo Image Shaper Specifications

  • Maximum input & output gain: 21 dBu
  • Input impedance: 20 kΩ
  • Output impedance: 150 Ω
  • Common mode rejection: > 82 dB
  • Frequency range (-3 dB): 10 Hz – 100kHz
  • THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
  • Noise (A-weighted): -92.3 dBu
  • Dynamic range: 113 dB

SPL BiG 500-Series Stereo Image Shaper Includes

  • BiG 500-Series Stereo Image Shaper
  • Manual
  • Warranty Information
