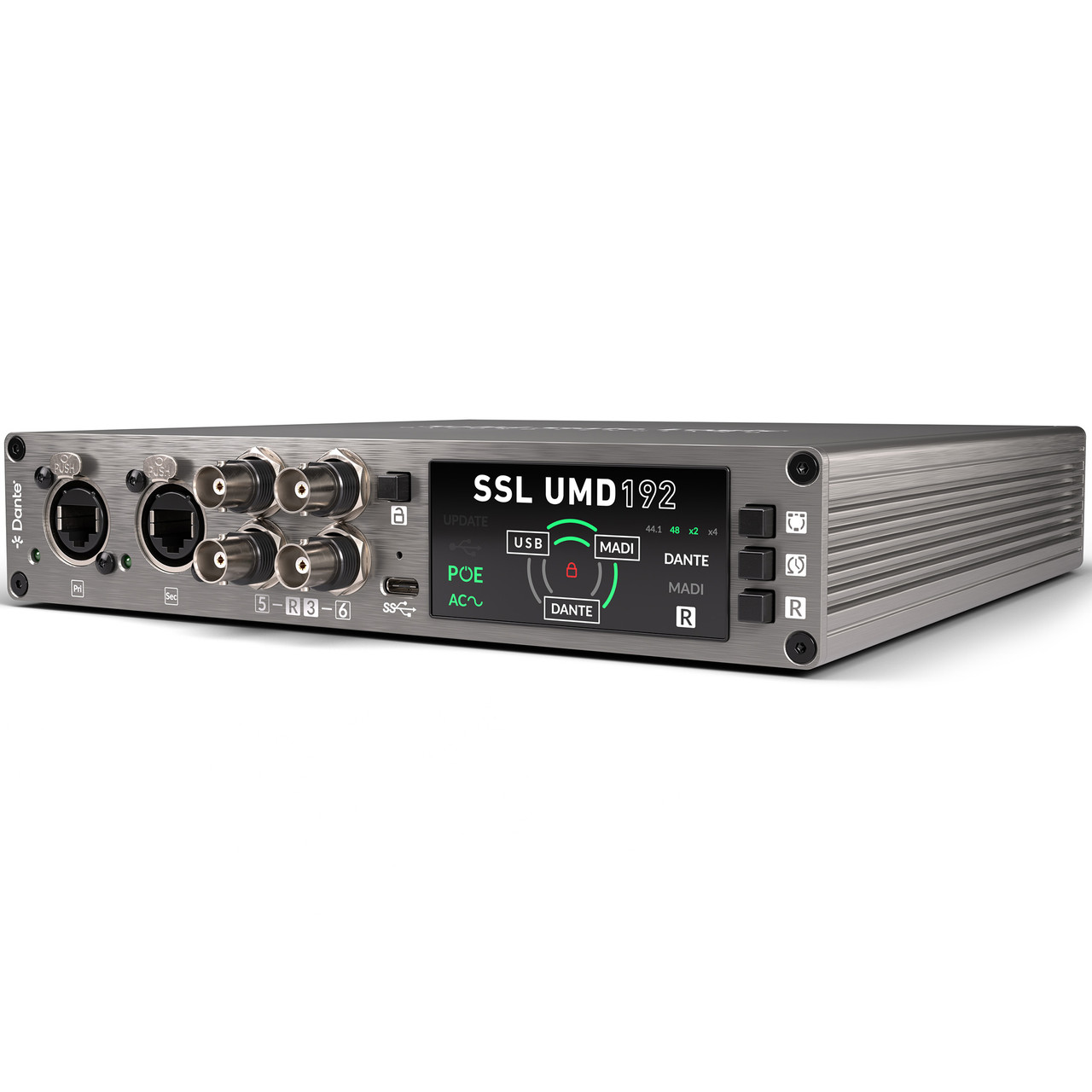

The Solid State Logic UMD192 Audio Interface is a high-capacity MADI, Dante, and USB 3.0 bridge built for engineers who need massive channel counts, rock-solid clocking, and flexible routing in a compact, portable format.
Designed for demanding live sound, broadcast, and high-spec studio workflows, UMD192 makes it easy to record, play back, or convert between formats without compromising speed, stability, or audio integrity. UMD192 is purpose-built for bidirectional audio between any two formats-MADI, Dante, or USB-while the third format can receive a split feed. That means you can integrate multiple MADI devices into a Dante AoIP network, bridge MADI to USB for high-channel-count recording, or use it as a powerful interface for playback and capture in mission-critical environments. On the Dante side, it’s fully interoperable with AES67 and supports ST 2110 (with DDM), with ultra-low latency down to 0.25 ms. For redundancy-focused workflows, UMD192 includes six MADI BNC pairs and can be configured for three dual-redundant MADI connections-ideal for broadcast trucks, live rigs, and any setup where failure isn’t an option. Add flexible power options (AC mains, PoE, or USB) and intuitive front-panel indicators with a lockout feature, and you’ve got an interface that stays dependable under pressure-whether it’s console-side, desktop, or racked with the optional kit.
Solid State Logic UMD192 Audio Interface Features
- High-capacity format bridge for MADI, Dante, and USB workflows
- Bidirectional routing between any two formats with split-feed capability to the third
- Built for live sound, broadcast, postproduction, and high-channel-count studio recording/playback
- Redundancy-ready MADI connectivity for mission-critical applications
- Ultra-low-latency Dante performance for responsive monitoring and networked audio transport
- Clear front-panel status indicators for fast visual confirmation in high-pressure environments
- Lockout-enabled front panel to prevent accidental changes to a verified configuration
- Multiple powering options to support flexible deployment and redundant power planning
- Class-compliant operation for quick Mac connectivity with minimal setup friction
Solid State Logic UMD192 Audio Interface Specifications
- Channel Count (44.1/48 kHz): 192 channels
- Channel Count (88.2/96 kHz): 192 channels
- Channel Count (176.4/192 kHz): 128 channels
- USB Interface: USB 3.0 (class-compliant)
- MADI I/O: 6x MADI BNC pairs
- MADI Redundancy: Supports 3x dual-redundant MADI connections (redundant mode)
- Dante Support: Fully interoperable Dante AoIP with AES67
- ST 2110 Support: Yes (with DDM)
- Minimum Dante Latency: 0.25 ms
- Clocking Options: MADI or Dante
- Supported Sample Rates: 44.1 kHz to 192 kHz
- Ethernet Ports: Ruggedised ports (2x Primary, 2x Secondary) with Link & Activity LEDs
- Power Options: AC mains, PoE, or USB (PoE can be combined with external PSU for redundancy)
- Mac Compatibility: Core Audio class-compliant (no driver required)
- Windows Compatibility: SSL ASIO driver required (multi-client)
- Form Factor: ½RU, portable (rack kit available)
Solid State Logic UMD192 Audio Interface Incudes
- Solid State Logic UMD192 Audio Interface
- USB-C to USB-C Cable
- USB-A to USB-C Adapter
- IEC Power Cable
- Manufacturer Warranty
