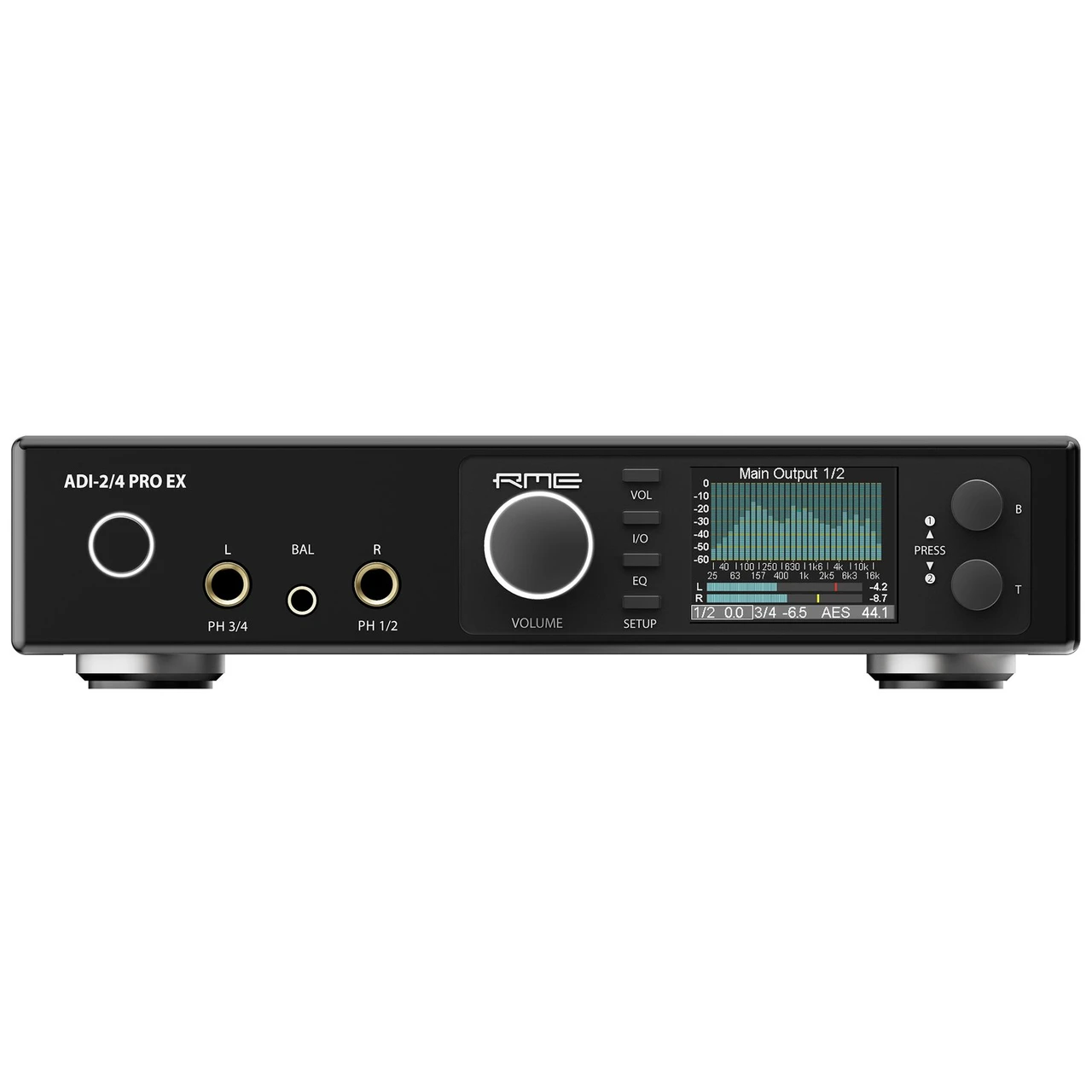

RME ADI-2/4 Pro EX AD/DA ConverterThe RME ADI-2 Pro EX AD/DA Converter brings RME’s reference-grade conversion, powerful headphone amplification, extensive DSP, and remarkably flexible digital connectivity together in one compact desktop unit.
Designed for mastering engineers, recording studios, critical monitoring systems, measurement applications, and serious headphone listening, the ADI-2 Pro EX handles PCM sample rates up to 768 kHz and DSD256 while providing the kind of transparent, reliable performance RME has built its reputation on. Whether it is serving as your primary studio converter, monitor controller, headphone amplifier, digital format converter, or precision measurement front end, the ADI-2 Pro EX packs an impressive amount of capability into a deceptively small box. Building on the ADI-2 Pro platform, the EX version introduces a redesigned ventilated chassis, increased headphone output power, a lockable USB-C connection, 12V trigger output, enhanced DC protection, and improved power-supply protection. At its core are AK5574 A/D and AK4493 D/A conversion stages paired with RME SteadyClock FS technology for precise clocking and exceptionally transparent conversion. Two servo-balanced analog inputs, balanced and impedance-balanced analog outputs, AES, coaxial and optical S/PDIF, ADAT, and USB-C give the ADI-2 Pro EX plenty of flexibility for integrating with professional studio and hi-fi systems. The ADI-2 Pro EX goes well beyond straightforward conversion. Its high-resolution display provides access to 5-band parametric EQ, bass and treble adjustment, adjustable loudness, binaural crossfeed, selectable converter filters, M/S processing, stereo width control, phase reversal, and RME’s 30-band Spectral Analyzer. Dual Extreme Power headphone outputs accommodate a wide range of headphones, while RME’s Advanced Balanced mode provides up to +28 dBu output level and substantial power for demanding headphone loads. Class Compliant USB operation, stereo and multichannel interface modes, DC-coupled outputs, Direct DSD playback, and comprehensive remote-control support make the RME ADI-2 Pro EX an exceptionally versatile centerpiece for critical audio work.
RME ADI-2/4 Pro EX AD/DA Converter Features
- Reference-quality stereo AD/DA conversion for professional studio, mastering, measurement, and audiophile applications
- Supports PCM sample rates up to 768 kHz
- Supports DSD recording and Direct DSD playback up to DSD256 / 11.2 MHz
- AK5574 analog-to-digital converter and AK4493 digital-to-analog converter
- RME SteadyClock FS technology for precise clocking and jitter suppression
- Two servo-balanced analog inputs on XLR/TRS combo connectors
- Balanced XLR and impedance-balanced TRS analog outputs
- Dual Extreme Power headphone outputs with increased output capability
- Advanced Balanced headphone mode for demanding headphone applications
- AES/EBU, coaxial S/PDIF, optical S/PDIF, and ADAT connectivity
- Lockable USB-C connection with Class Compliant UAC 2 support
- Stereo 2-in/2-out and multichannel 6-in/8-out USB interface modes
- Four selectable hardware input and output reference levels
- DC-coupled outputs
- 5-band parametric EQ for individual output and headphone correction
- Adjustable bass and treble controls
- Adjustable loudness function
- Binaural crossfeed
- Selectable AD/DA converter filters
- M/S processing, stereo width control, and phase reversal
- Integrated 30-band Spectral Analyzer
- High-resolution IPS display
- 12V trigger output for synchronized control of compatible external equipment
- Channel-independent DC protection
- Active protection against incorrect power-supply polarity and overvoltage
- Remote control support with four programmable buttons and access to numerous device functions
- Lockable external universal power supply
RME ADI-2/4 Pro EX AD/DA Converter Includes
- RME ADI-2/4 Pro EX AD/DA Converter
- Lockable Universal Power Supply
- Lockable USB-C Cable
- Digital Breakout Cable
- Documentation
- Manufacturer Warranty
