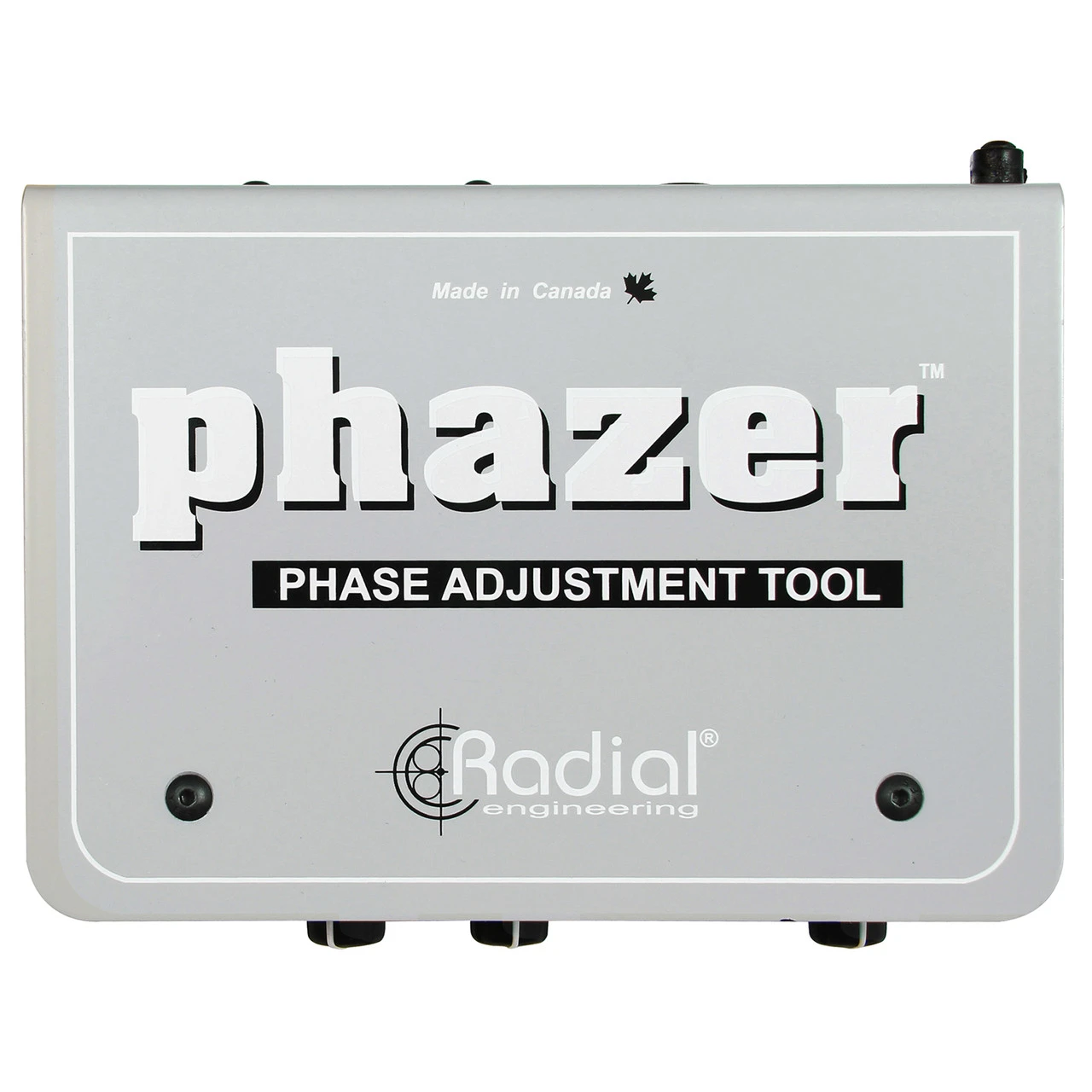

Radial Phazer Phase Alignment Tool (B-Stock)

Front End Audio has a fantastic deal on this factory direct B-Stock unit, and stock is limited! Radial quality control has deemed this as "B-Stock" so expect a minor cosmetic flaw or blemish. But, rest assured that this will have absolutely no impact on the functionality or performance of this unit. Radial fully inspects and tests every B-Stock product AND they are covered by a full manufacturer warranty. This is your opportunity to grab a great deal on an otherwise "just like new" Phazer from Radial!

The Radial Phazer Phase Alignment Tool is a precision analog phase adjustment device designed to bring clarity, punch, and focus back to multi-mic recordings and complex sound systems. Whether you’re aligning kick drum mics, tightening up bass DI and amp blends, or correcting phase issues in live sound, the Phazer gives you exact control over phase relationships so your tracks hit harder and sit better in the mix. The Radial Phazer is an all-analog phase alignment tool that allows you to continuously adjust phase between two signals, rather than relying on a simple 180-degree polarity flip. Using a variable all-pass filter circuit, the Phazer lets you sweep through phase relationships to find the precise alignment that maximizes low-end impact and coherence. This makes it invaluable for drum recording, guitar and bass re-amping, multi-mic setups, and any application where multiple sources capture the same sound. Equipped with balanced XLR inputs and outputs, a polarity reverse switch, and a low-cut filter, the Phazer integrates easily into studio and live signal chains. LED indicators assist with signal monitoring, and the rugged steel enclosure ensures long-term reliability. For engineers who demand tighter low end, improved transient response, and better overall mix definition, the Phazer is an essential problem-solving tool.

Radial Phazer Phase Alignment Tool Features

• Analog phase alignment tool for studio and live applications
• Continuously variable phase adjustment control
• Improves low-end clarity and transient punch
• Ideal for drum miking, bass DI/amp blending, and re-amping
• Polarity reverse switch for quick phase comparison
• Built-in low-cut filter for additional control
• Balanced XLR inputs and outputs
• Rugged steel enclosure for professional use

Radial Phazer Phase Alignment Tool Applications

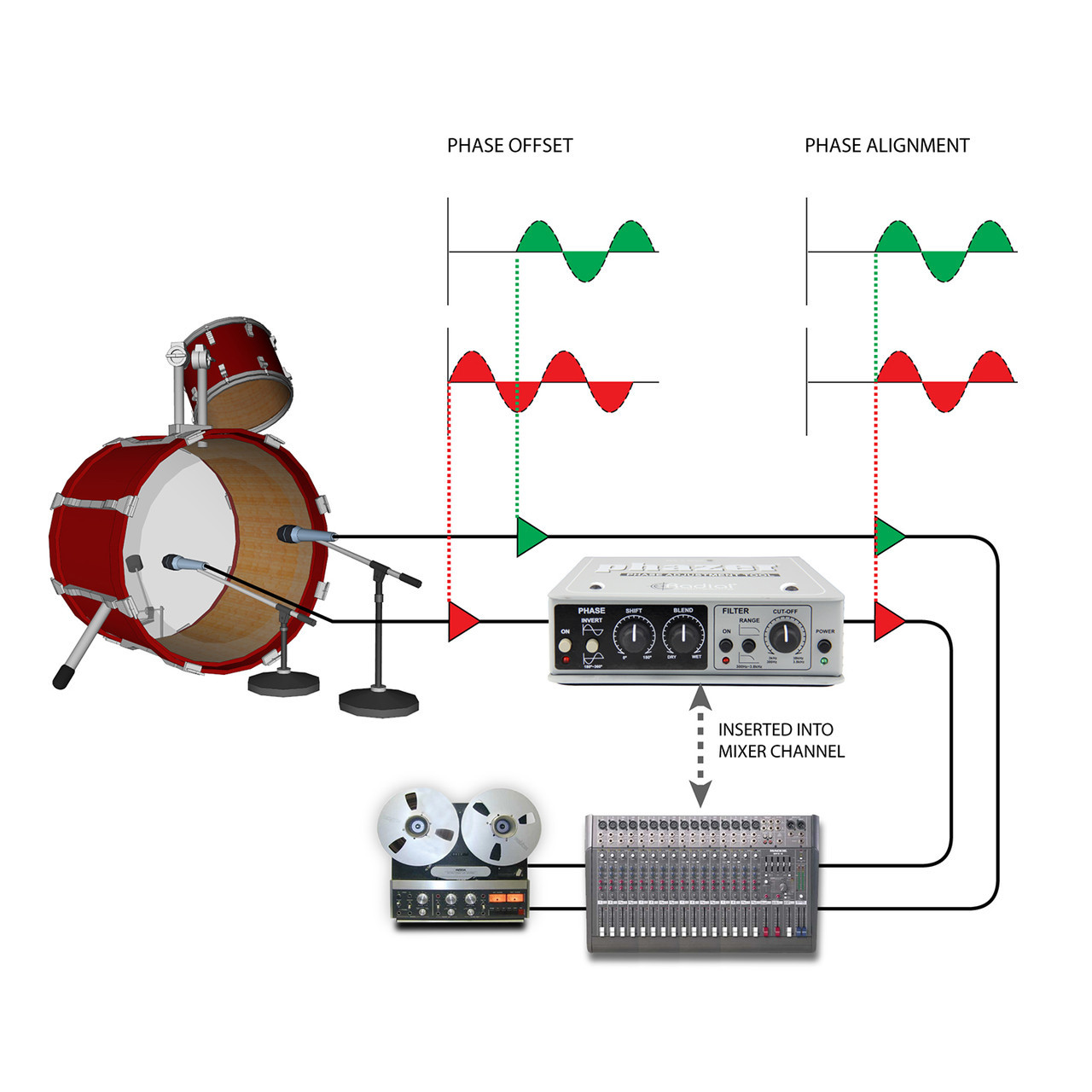

• Using the Phazer in a kick drum - Engineers love to combine the attack of the batter head with the boom of a second mic. The Radial Phazer elevates the effect by letting you combine the two in perfect sync. Simply insert the Radial Phazer on the batter head channel, rotate the phase control and in seconds you are there.
• Using the Phazer with a guitar amp - Sometimes, getting a great guitar sound seems to take forever. This is due to irregularities such as stage resonance, room acoustics and a slight shift in mic position. Combine a Radial JDX direct box with the usual SM57 on the speaker. Phaze adjust the Radial JDX and in seconds, you will get huge guitar sounds.

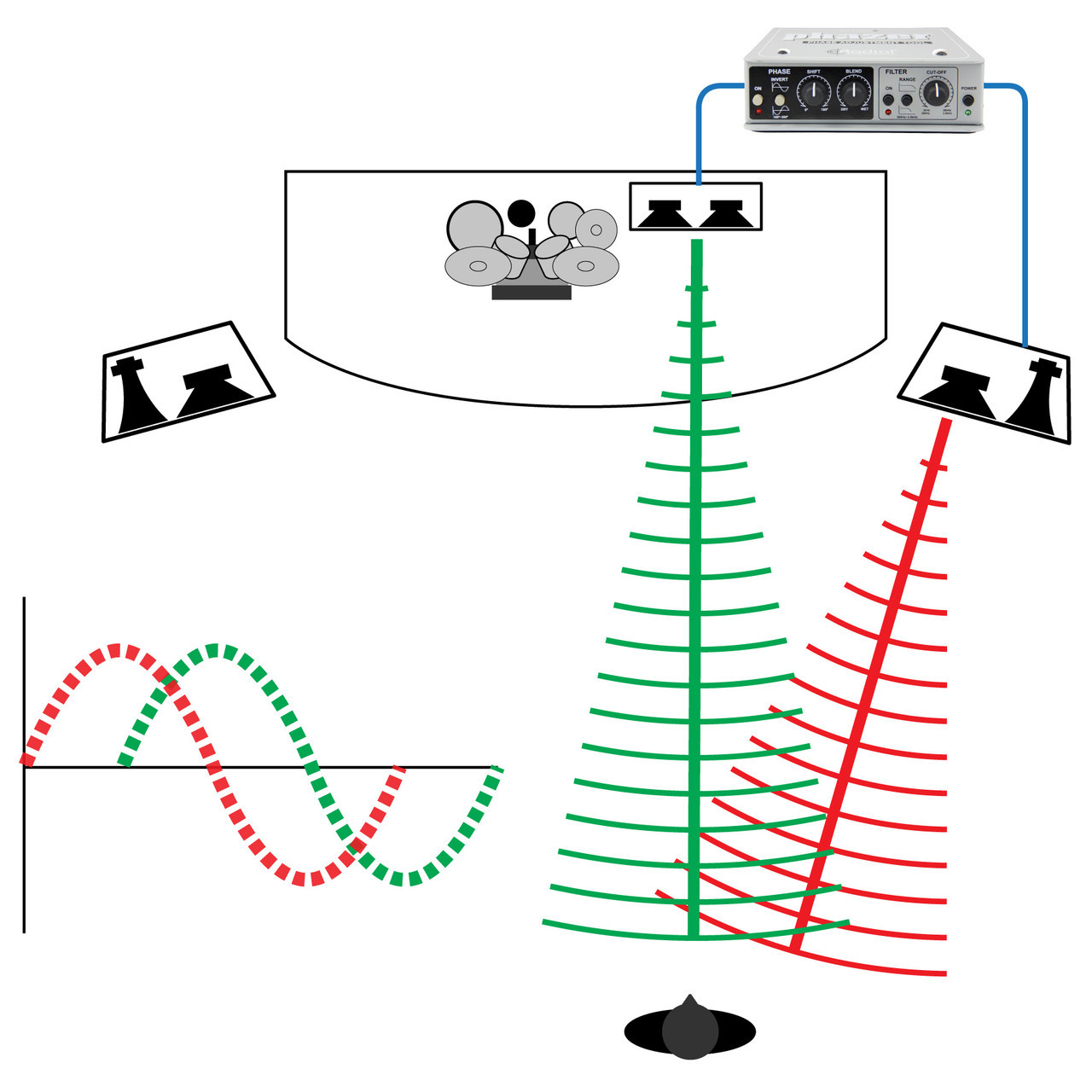

• Using the Phazer to solve bass problems - In smaller venues, the bass level coming off the stage can often compete with the PA system making it hard to mix. Combine the direct feed from the bass amp using a Radial JDX direct box and phase align it to the PA using the Radial Phazer. You will be amazed at how this simple process will clean up your mix.

Radial Phazer Phase Alignment Tool Specifications

• Technical Specs:
  • Audio Circuit Type: Active analog phase adjustment
  • Number of Channels: Mono
  • Frequency Response: 20Hz ~ 20KHz (± 0.5dB)
  • Signal to Noise: 77dB
  • Dynamic Range: 94dB
  • Maximum Input: +11.5dBu @ 1kHz, 1% THD+N
  • Total Harmonic Distortion: 0.005% @ 1kHz, -10dBu output
  • Input Impedance: 10k Ohms, balanced
  • Output Impedance: 2k Ohms, balanced
• Features:
  • Low Pass Filter: Variable range, 300Hz ~ 3.8kHz / 3.8kHz ~ 38kHz
  • Ground Lift: Disconnects XLR pin-1 at XLR output
  • Phase Reverse: Inverts the signal phase at the output
  • XLR Configuration: AES standard (pin-2 hot)
  • Connectors: ¼" TRS, XLR balanced inputs and outputs
• General:
  • Construction: 14 Gauge steel chassis & outer shell
  • Finish: Durable powder coat
  • Size (W x H x D): 4.5" x 2" x 6" (114 x 57 x 147mm)
  • Weight: 2.8 lb (1.3kg)
  • Shipping Size: (L x W x D) 4.75" x 2.5" x 10.75" (121 x 64 x 273mm)
  • Shipping Weight: 3.05 lb ( 1.4kg)
  • Power: +15V DC/400mA power supply included
  • Conditions: For use in dry locations only between 5°C and 40°C

Radial Phazer Phase Alignment Tool Includes

• Radial Phazer Phase Alignment Tool
• Power Supply
• User Guide
• Manufacturer Warranty
