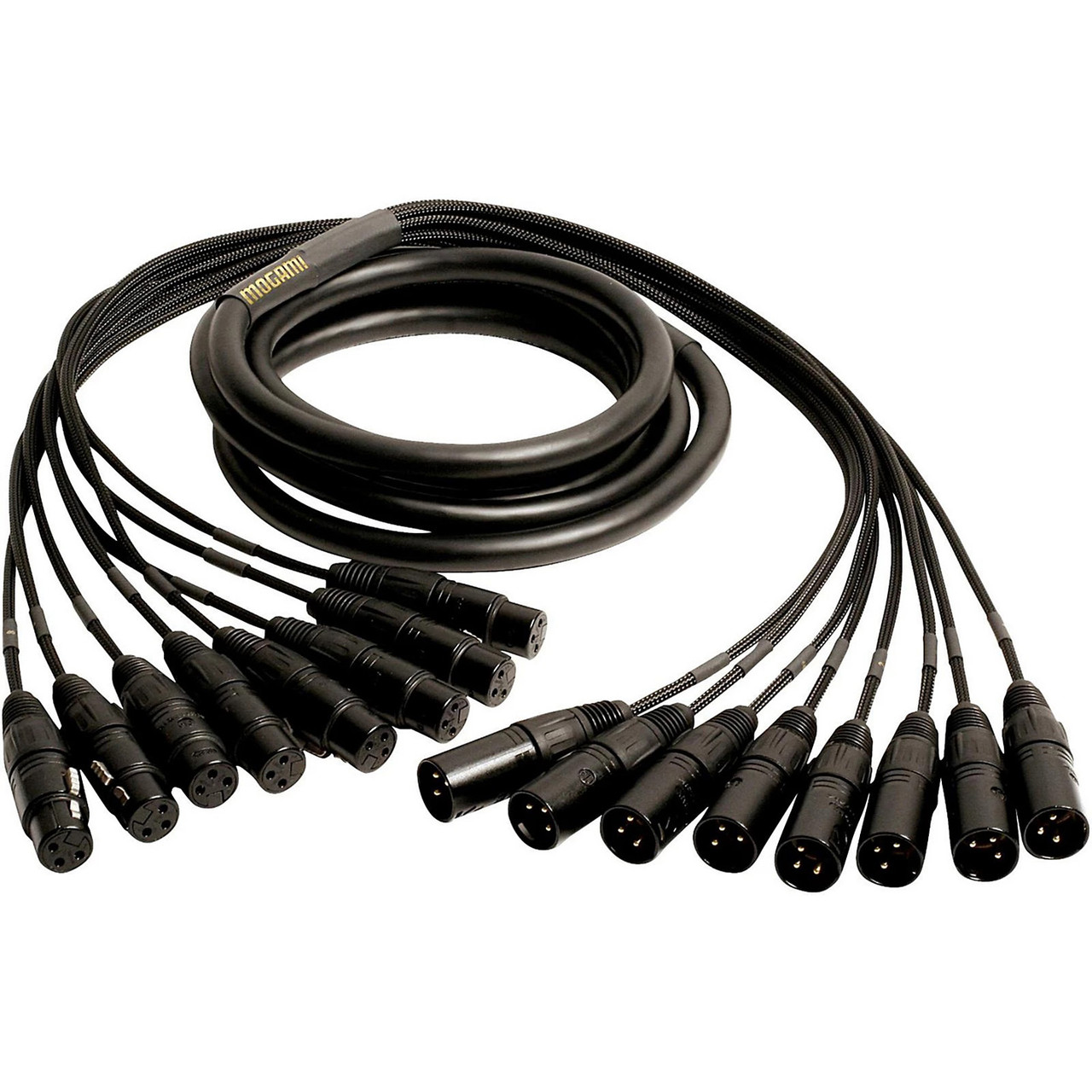

Mogami Gold 8-Channel XLR Fan-Out Snake (10 Foot)
Mogami Gold 10 Foot 8-Channel XLR Fan-Out Snake
Mogami Gold 8-Channel XLR Fan-Out Snake Details
The Mogami Gold 8-Channel XLR Fan-Out Snake gives you eight channels of analog XLRF to XLRM on what is arguably the world's consistently best sounding cabling. Each channel's conductors are individually shielded with numbered Techflex protected jackets for unprecedented durability at the fanout.Tthe Mogami Gold 8 XLR-XLR is eight channels of Mogami Neglex snake, XLR male to XLR female, using premium NC3FXX-B (female) and NC3MXX-B (male) Neutrik XLR connectors with black metal housing and gold contacts.
Used along with the worldâ??s most prestigious recording machines, consoles and patch bays, Mogami Analog XLR to XLR fanout cables are the best mechanical and electrical assemblies on the market. These assemblies are the choice du jour when absolute sound and signal quality must be maintained from the source without any interference or change.
â??The Cable of the Prosâ?Thereâ??s a reason why Mogami is called â??The Cable of the Pros.â? Virtually every major recording facility is wired with Mogami, which means that just about any music you listen to has passed through Mogami somewhere in the recording chainâ?"from Fleetwood Mac to Foo Fighters, from Prince to Pearl Jam, and countless others. Why do so many discriminating artists and studios choose Mogami over other cable brands? Itâ??s simple. Mogami is unmatched for accuracy, extremely low noise, ease of installation, flexibility, and superior quality. Professionals and enthusiasts alike rave about the amazing clarity and silent background of Mogamiâ?"technicians swear by it, not at it.
Mogami's story began decades ago when Mogami scientists began researching the causes of audible differences within signal cable. The research was groundbreaking, and controversial, as most engineers at the time thought cable all sounded the same. Mogamiâ??s approach was unique. We invested years into researching low-loss signal transfer, the result of which lead to the development of Mogami Neglex, a series of cables that changed an entire industry.
The Worldâ??s Best Cable Does Nothing at AllMogami has a clear-cut philosophy. Design cables that offer the most accurate signal transfer possible. This may seem like a logical goal, but in fact many cable companies alter the signal for what they perceive to be the â??best sound.â? The problem with creating this unnatural distortion is that it permanently alters the signal flowing through the cable. The distortion may make a particular piece of equipment sound better at one frequency but worse at another. The essence of the original signal is lost forever.
There is no single magic bullet for cable design. Superior design is a mix of conductor material, dielectric, conductor and shield geometry, jacket stiffness, along with fanatical dedication to manufacturing quality. Only technical expertise combined with years of experience can result in the kind of performance that transcends the ordinary. Mogami uses only pure OFC (Oxygen Free Copper) for the best signal transmission, as well as XLPE (cross linked polyethylene) insulation for high dielectric strength and dimensional stability.
A book could be filled with specs but in the end it comes down to the purist philosophy that runs through every Mogami cable. Itâ??s why Mogami is a top choice for studio professionals and touring bands everywhere.
Mogami Gold 8-Channel XLR Fan-Out Snake Features
- Famous for neutral tone, remarkable detail and noise-free background
- Channels are individually shielded with numbered, Techflex protected jackets
- Assembled with top quality gold-contact Neutrik NC3FXX-B (female) and NC3MXX-B (male) connectors
- Super-flexible handling ease, but still incredibly durable
- Manufactured in Mogami's Nagano, Japan facility
- Lifetime Warranty
Mogami Gold 8-Channel XLR Fan-Out Snake Specifications
- ELECTRICAL & MECHANICAL CHARACTERISTICS
- DC Resistance at 20°C
- Inner Pair Conductor: 0.11Ω/m(0.0336Ω/Ft)
- Shield: 0.031Ω/m(0.0095Ω/Ft)
- Capacitance at 1kHz, 20°C (Partial Capacitance Value)
- K0: 140pF/m(42.7pF/Ft)
- K1: 12pF/m(3.7pF/Ft)
- Inductance: 0.6ÂµH/m(0.18ÂµH/Ft)
- Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
- Electromagnetic Noise at 10kHz*(Inductance of the toroidal core: 595ÂµH): 0.1mV Max.
- Method: Stepping on cable 50mV Max. at 50kΩ/ Load
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance at DC 125V, 20°C: 100000 MΩ/ Ã- m Minimum
- Tensile Strength of one pair (26°C, 65% RH): 274N
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)
- Standard: UL13 CL2 60#176;C
- DC Resistance at 20°C
What We Think
"Mogami Gold 8-Channel XLRF to XLRM Fanout Snakes are simply the best available. Perfect for running signals at a distance either within the control room or from an 8-channel preamp to the wall-panel, there are plenty of uses for this ubiquitous studio standard of quality which does not change that which you present it. Shouldn't that be the goal of any cable?
Word to the wise: Many other entities offer cables and say that they're 'Made With Mogami' (and the more brazen say something to the effect of "Configure your Mogami cable"). But when you dig deeper, you discover that these 'cheaper' options that they're trying to equate to actual Mogami Gold is some other offering altogether. There are those who are counting on brand-name recognition (Mogami) and you not knowing the technical difference between a 2534 Neglex Quad (which is MOGAMI GOLD) and a 2549 (which is not). And these, of course, are not assembled with the strict tolerances and resulting perfection only capable in the Mogami factory in Japan.
Front End Audio sells only genuine MOGMAMI GOLD products - manufactured in Mogami's factory, factory packaged by Mogami and fully warranted by Mogami, themselves - and Front End Audio backs them up, to boot. You don't want to go looking to claim your warranty when your cheap cable fails (probably at the worst possible moment - of course), only to discover that the company who made it and sold it to you isn't around anymore, right? Some things just aren't worth the risk of short-term savings. So, don't join the ranks of the 'walking-brain-dead' - Get the real deal and actually receive what you are being sold. Purchase your genuine factory-built Mogami Gold cabling from Front End Audio and rest easy knowing that you're getting exactly what you're paying for."
No review yet, Be first to Write a Review
