The Manley Dual Mid Band EQ is a mastering-grade stereo passive equalizer engineered to deliver exceptional midrange focus, clarity, and separation with the smooth musical precision that defines premium analog processing.
Designed for recording, mixing, and mastering applications, it combines passive inductor-based equalization, high-voltage tube makeup gain, and custom Manley Iron transformers to shape presence and punch without introducing harshness or sacrificing musical balance. Rather than simply correcting frequencies, the Dual Mid Band EQ enhances the character and intelligibility of your material while maintaining natural phase relationships and stereo image stability. Its passive EQ network produces broad, musical curves, while the tube gain stage restores signal level with impressive headroom, harmonic richness, and analog depth. Transformer-coupled inputs and outputs contribute the weight and dimensionality expected from Manley's renowned analog designs. Whether refining a stereo mix, mastering a finished production, or adding definition to buses and individual tracks, the Dual Mid Band EQ delivers transparent yet highly musical midrange control. Updated ergonomics, Mid/Side compatibility with external matrix systems, and a universal switchmode power supply complete this handcrafted California-built equalizer.
Manley Dual Mid Band EQ Features
- Stereo passive inductor-based equalizer with true dual-channel operation
- Designed for smooth, musical midrange shaping with exceptional clarity and separation
- Broad, phase-coherent EQ curves for natural tonal balance

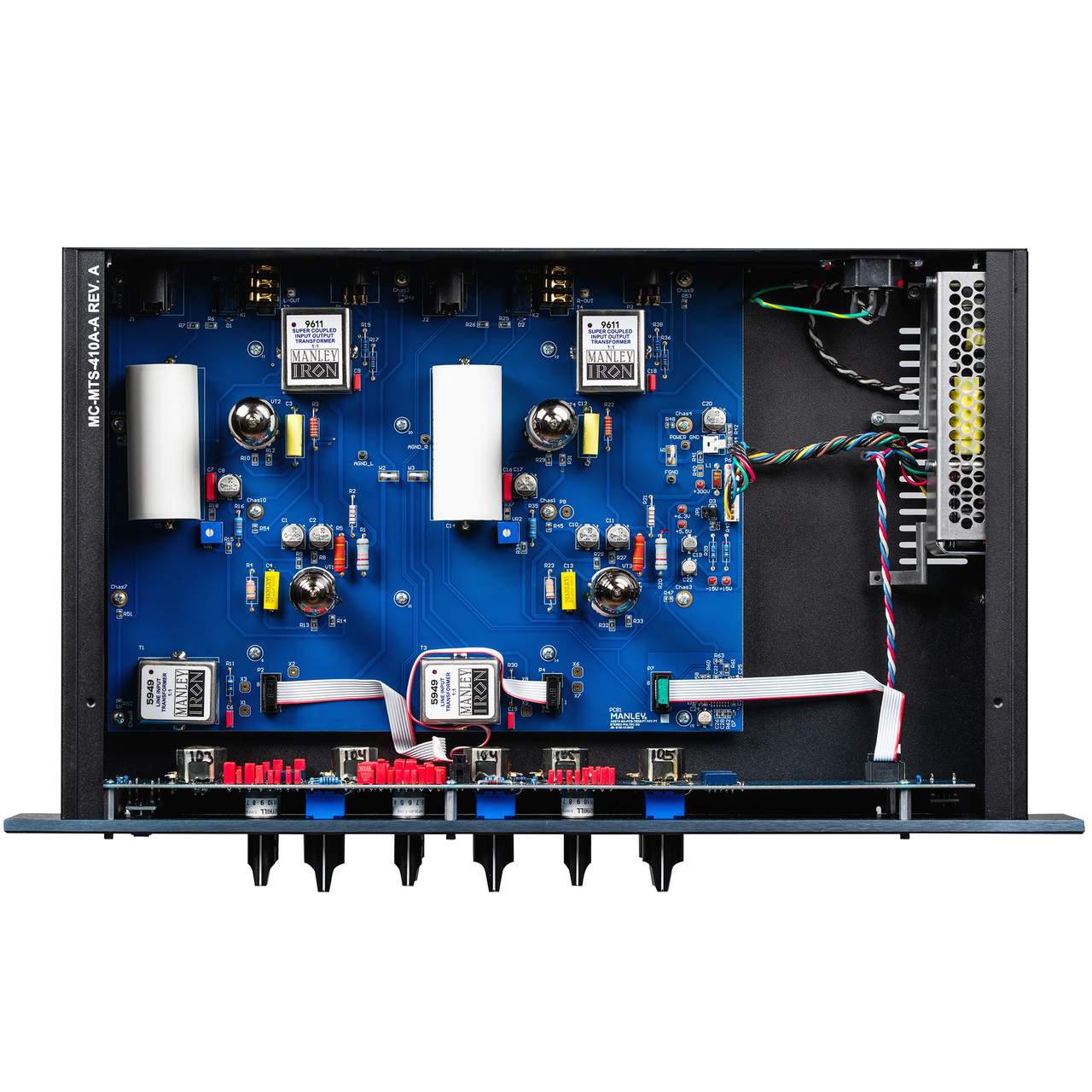

- High-voltage all-tube makeup gain stage using 5751 and 12BH7 tubes
- Custom in-house wound Manley Iron input and output transformers
- Excellent for mastering, mix bus processing, stereo stems, tracking, and individual sources
- Left/Right and Mid/Side compatible front-panel labeling for flexible workflows (external M/S matrix required)
- High-headroom analog design with output capability exceeding +30 dBu
- Universal switchmode power supply supports worldwide AC voltages
- Handcrafted in California, USA
Manley Dual Mid Band EQ Specifications
- Format: Stereo / Dual Mono
- Topology: Passive EQ
- Tube Stage: 2 × 5751, 2 × 12BH7
- Frequency Response (Flat): 20 Hz – 22 kHz (±0.1 dB)
- Frequency Response (Total): 10 Hz – 70 kHz
- THD / Noise: <0.01%
- Signal-to-Noise Ratio: 89 dB
- Maximum Output Level: +30 dBu
- Dynamic Range: 115 dB
- Input Impedance: 5 kΩ
- Output Impedance: 150 Ω

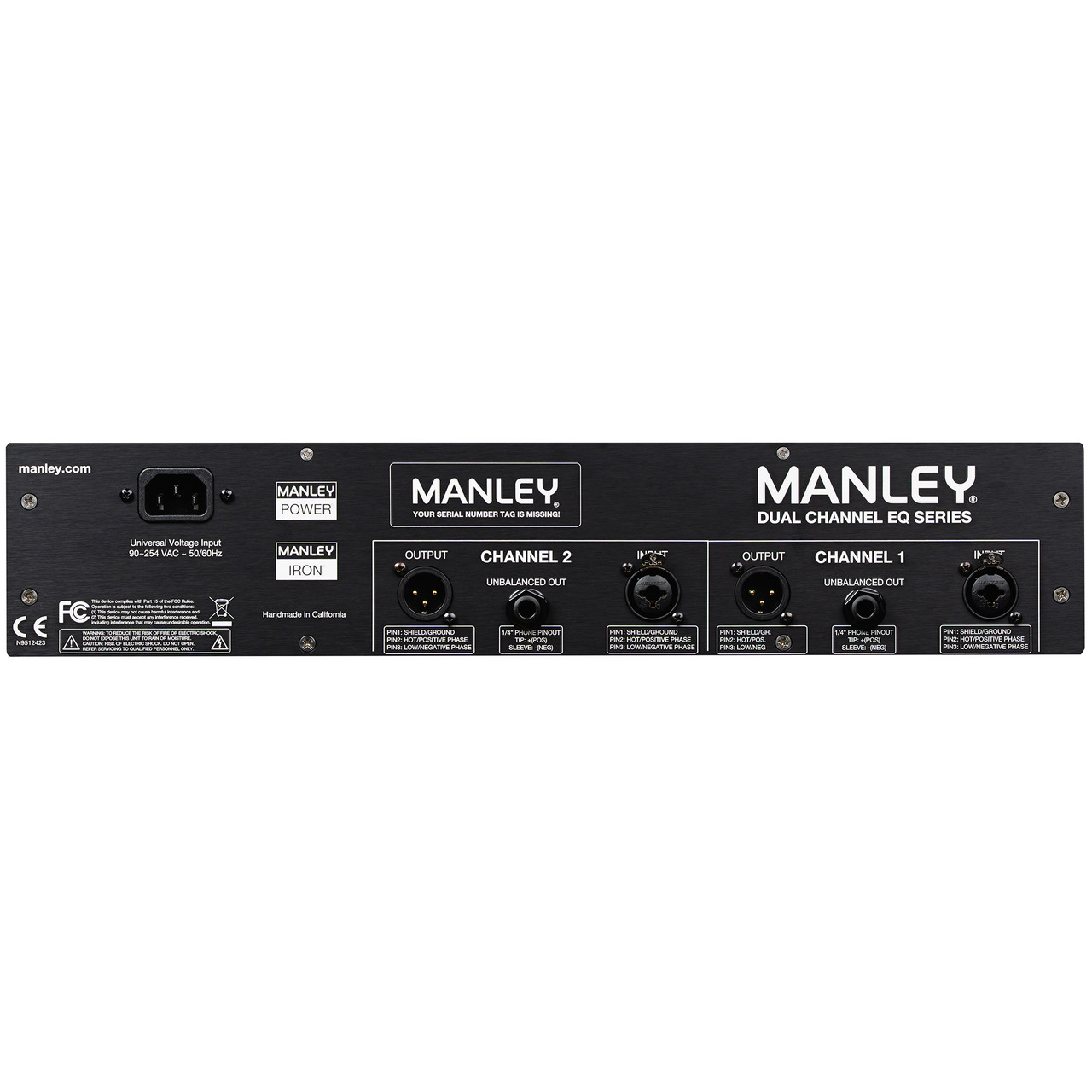

- Inputs: Balanced XLR, transformer-coupled
- Outputs: XLR balanced transformer-coupled; 1/4-inch unbalanced direct-coupled
- Transformers: Manley Iron input and output
- Bypass: All-tube signal path (not hardwire bypass)
- Controls: Conductive plastic potentiometers
- Power Supply: Universal switchmode
- Rack Space: 2U
- Dimensions: 3.5" × 19" × 7"
- Unit Weight: 11 lbs
- Shipping Weight: 17 lbs
Manley Dual Mid Band EQ Includes
- Manley Dual Mid Band EQ
- Power Cable
- Documentation
- Manufacturer Warranty
