Fluid Audio Image 1 Studio Monitor

The Fluid Audio Image 1 Studio Monitor brings true 3-way reference monitoring, powerful DSP, and remarkably controlled low-frequency performance to studios where every mix decision matters.

Designed for engineers, producers, mastering facilities, post-production rooms, and immersive audio systems, the Image 1 combines dual-opposed 6.5-inch woofers, a dedicated 4-inch aluminum midrange driver, and an AMT high-frequency driver in a compact sealed enclosure. With 475 watts of total RMS amplification, onboard room correction capabilities, and professional analog and digital connectivity, it delivers the precision, imaging, and translation you need without demanding a massive control room. By dividing the frequency spectrum among three dedicated driver sections, the Image 1 allows each component to concentrate on the range it handles best. The dedicated aluminum midrange provides the definition needed for judging vocals, guitars, snare drums, reverbs, and other mix-critical elements, while the AMT Air Motion Transformer delivers fast transient response and extended high-frequency detail. Down low, a pair of active 6.5-inch paper-cone woofers operate in an opposed configuration that helps reduce cabinet reaction forces. Combined with the monitor's sealed enclosure and mechanically coupled woofer system, the design delivers tight, predictable bass behavior that makes it easier to judge low-frequency balance and translation. The Image 1 is equally well suited to modern calibration and immersive monitoring workflows. Its onboard 24-bit/192 kHz DSP supports room-correction profile uploads and can store up to four SoundID Reference calibration profiles directly in the monitoring system. Profiles are transferred through the RJ45 network connection using DCT software, so calibration can remain inside the monitor rather than requiring a correction plug-in to stay active in your DAW. Balanced analog XLR, AES digital input and thru connections, rear-panel acoustic adjustment, and CubeMix functionality provide additional flexibility for stereo, mastering, post-production, Dolby Atmos, and other multi-channel monitoring environments.

Fluid Audio Image 1 Studio Monitor Features

• True 3-way active reference monitor designed for critical mixing, mastering, post-production, and immersive audio
• Dual-opposed 6.5-inch active woofers provide controlled low-frequency reproduction from a compact cabinet
• Dedicated 4-inch aluminum midrange driver improves definition through critical vocal and instrument frequencies
• AMT Air Motion Transformer delivers fast transient response and detailed high-frequency reproduction
• Sealed woofer and midrange enclosures support controlled transient and decay behavior
• 475 watts RMS of total amplification per monitor
• Onboard 24-bit/192 kHz DSP for signal processing and monitor optimization
• Supports room-correction profile uploads
• Stores up to four SoundID Reference calibration profiles
• RJ45 network connection provides communication with DCT software and calibration profile uploading
• CubeMix mode provides an additional translation-checking tool through DCT software
• Balanced analog XLR input accommodates professional studio monitoring systems
• AES digital input and thru support integration with digital monitoring workflows

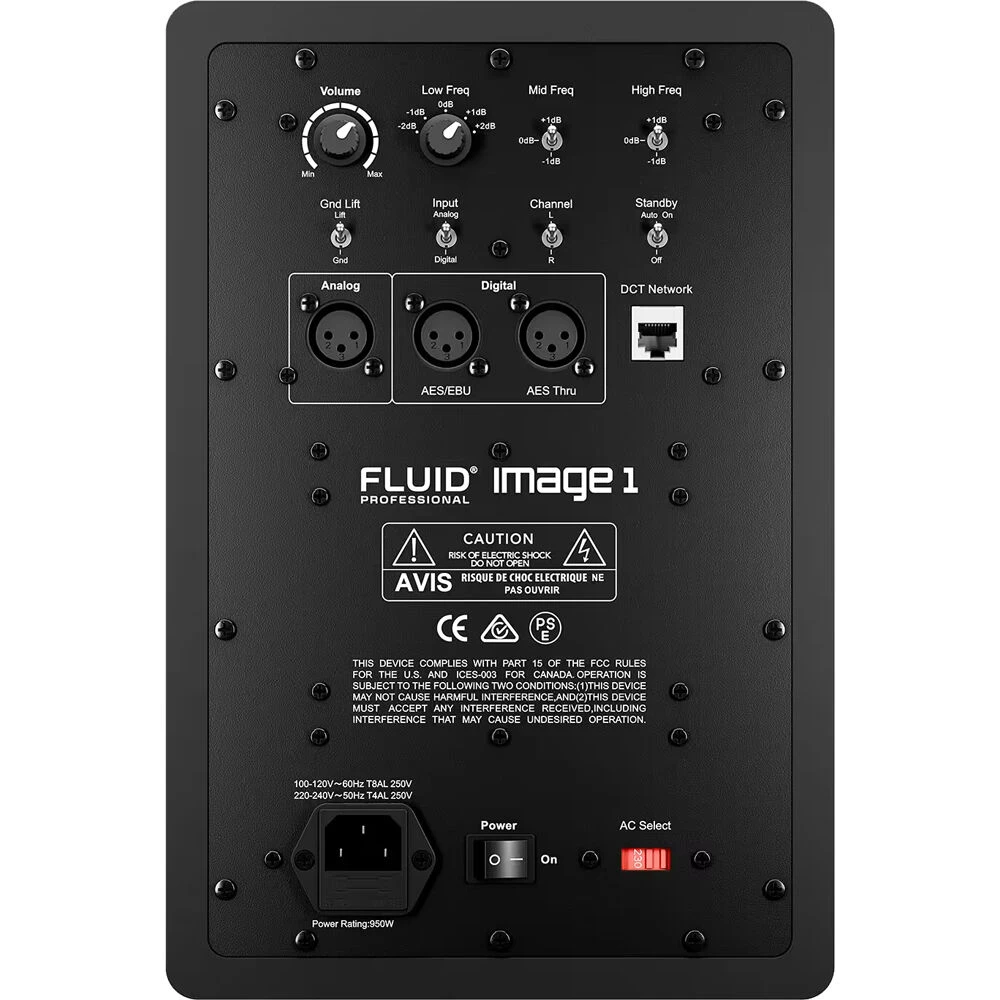

• Rear-panel acoustic controls provide adjustment for room and boundary placement
• Compact format is well suited to nearfield monitoring and multi-speaker immersive installations

Fluid Audio Image 1 Studio Monitor Specifications

• Maximum SPL: 108 dB
• Sensitivity: 87 dB @ 1 meter with -15 dBV input signal; level control set to 0 dB
• Frequency Response: ±4.6 dB, 40 Hz – 20 kHz; ±2.0 dB, 80 Hz – 20 kHz
• Bass Response: -3 dB @ 45 Hz; Q = 0.707; 24 dB/octave slope
• Crossover Frequencies: Bass / Mid: 190 Hz; Mid / Treble: 3000 Hz; controlled by onboard DSP
• Cabinet: 14.5 liters total internal volume; sealed woofer and midrange enclosures
• Low-Frequency Drivers: Dual 6.5-inch paper-cone woofers; ±5.0 mm linear excursion
• Midrange Driver: 4-inch aluminum cone; low-distortion motor with shorting ring
• High-Frequency Driver: AMT Air Motion Transformer; 66 × 66 × 27 mm
• Low-Frequency Amplifier Power: 150 W × 2 RMS
• Midrange Amplifier Power: 100 W RMS
• High-Frequency Amplifier Power: 75 W RMS
• Total Amplifier Power: 475 W RMS per monitor
• Controls: Input-level stepped attenuator
• Input Impedance: Balanced XLR: 20 kΩ
• Signal Processing: 24-bit / 192 kHz signal processing; onboard DSP; room-correction profile upload; SoundID Reference profile support; up to four stored calibration profiles; CubeMix mode via DCT software
• Audio Connections: Analog balanced XLR input; AES digital input; AES digital thru
• Network / Control: RJ45 network connection for DCT communication and profile upload
• Rear Panel Acoustic Controls: Rear-panel EQ adjustments for room and boundary placement
• AC Power Input: 100–120 VAC or 220–240 VAC; voltage configuration set at factory
• Power Consumption: Idle: 3 W; Maximum: 650 W
• Net Weight: 21.8 lbs each / 9.9 kg
• Product Dimensions: 8.11 × 12.13 × 12.13 inches / 206 × 308 × 308 mm

Fluid Audio Image 1 Studio Monitor Includes

• Fluid Audio Image 1 Studio Monitor
• Power Cable
• Manufacturer Warranty
