The Flock Audio PATCH SE Patchbay System delivers the power, flexibility, and workflow of a digitally controlled analog patchbay - without the cost or complexity of traditional studio rewiring.
Designed as “The Pro PATCH, Without the Pro Price,” PATCH SE allows you to instantly route, store, and recall analog signal paths using intuitive software control, while keeping your entire signal chain 100% analog and completely transparent. It’s an ideal solution for modern studios that want speed, recall, and creative freedom without sacrificing sound quality. Featuring Flock Audio’s multi-patented Matrix Technology, PATCH SE eliminates the need for physical patch cables and manual reconfiguration. Complex routing, parallel mults, and signal chains can be created in seconds—without impedance issues or signal degradation. With 48 total analog connections via DB-25 (Tascam pinout), front-panel combo I/O for quick access, and seamless integration with the PATCH App and PATCH App DX software for macOS and Windows, PATCH SE transforms how studios manage outboard gear, interfaces, and processors. Expandable with additional PATCH units and built in a rugged 1U rack format, PATCH SE is a future-proof centerpiece for hybrid and analog studios alike.
Flock Audio Patch SE Patchbay System Features
- Digitally controlled analog patchbay with zero AD/DA conversion
- 48-point connectivity (24 inputs / 24 outputs) via DB-25 (Tascam standard)
- Multi-patented Flock Audio Matrix Technology for instant routing and recall
- Create, store, and recall complex signal routings in seconds
- Perform advanced multing and parallel routing with no impedance issues
- Front-panel combo TRS/XLR input and XLR output for fast, convenient access
- Compatible with PATCH App & PATCH App DX software (macOS & Windows)
- Expandable system — link multiple PATCH units together
- Perfect for hybrid studios, outboard-heavy setups, and modern production workflows
- 100% transparent analog signal path — no coloration, no signal loss
Flock Audio Patch SE Patchbay System Specifications
- Total Connections: 48 (24 inputs / 24 outputs)

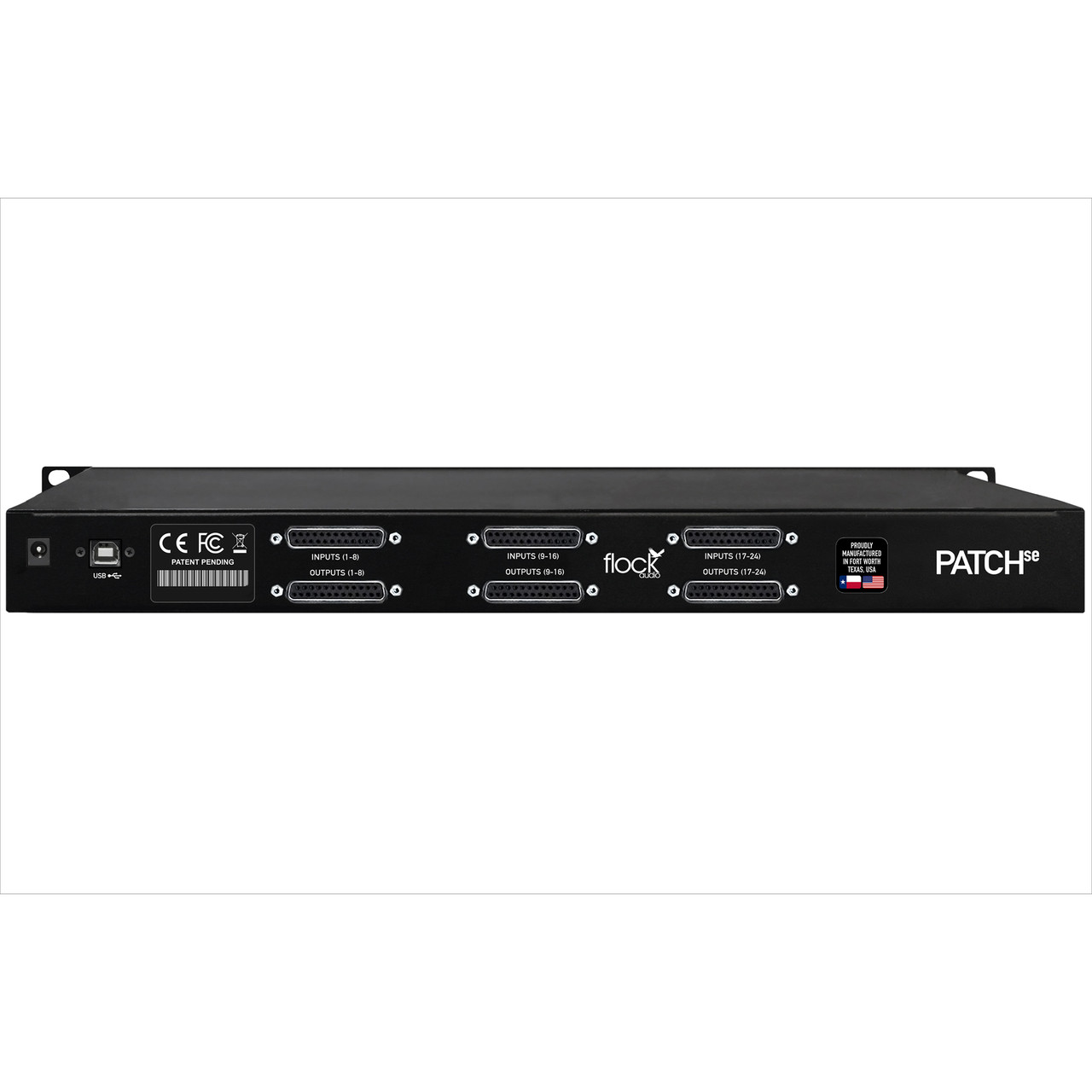

- Rear Panel I/O: DB-25 / D-Sub (Tascam standard pinout)

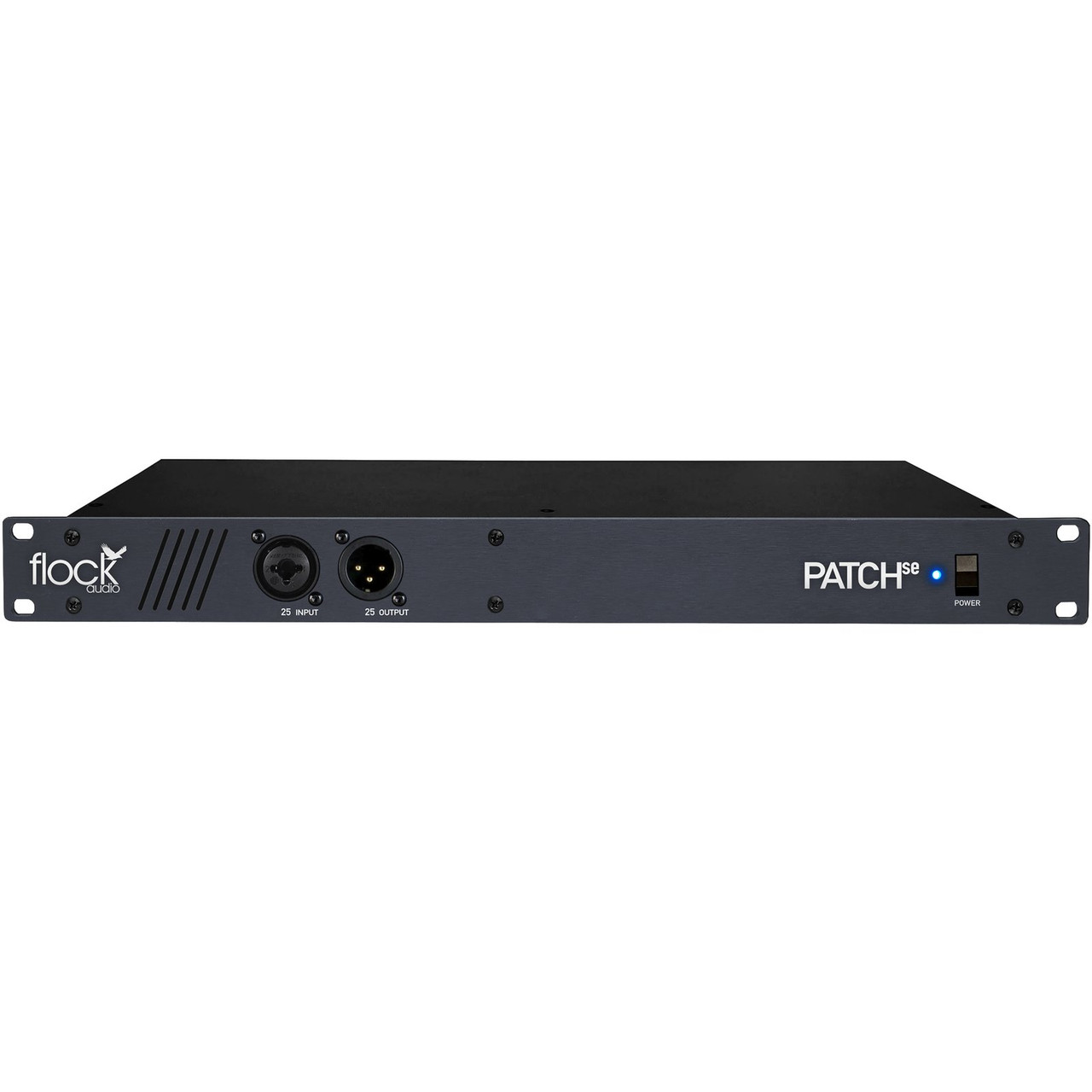

- Front Panel I/O: 1 × Combo TRS/XLR input, 1 × XLR output
- Signal Path: Fully analog, no AD/DA conversion
- Control Interface: USB 2.0 (USB-A to USB-B cable included)
- Software: PATCH App & PATCH App DX (macOS & Windows)
- Power Supply: External power supply with IEC cable
- Rack Size: 1U
- Dimensions: 1.75" (H) × 19" (W) × 8" (D)
- Weight: 10 lbs
Flock Audio Patch SE Patchbay System Includes
- Flock Audio Patch SE Patchbay System
- External Power Supply
- USB Cable
- Manufacturer Warranty
