The dbx 131s Graphic Equalizer is a single 31-band graphic equalizer designed to offer exceptional sound and rugged reliability. Featuring a single 31-band channel of 1/3-octave equalization, ±12 dB input gain and more, the dbx 131s meets the needs of the most demanding sound reinforcement environments.
The dbx 131s Graphic Equalizer is the professional's choice in signal processing. With a proven track record that spans four decades, the dbx 131s Graphic Equalizer the industry standard for touring, studios, and audio installations. With the dbx heritage of revered pro EQs, the dbx 131s Graphic Equalizer meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.
The dbx dbx 131s Graphic Equalizer includes a single 31-band channel of 1/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. From its extended 10Hz to 50kHz frequency response and 110 dB dynamic range to the quality componentry and meticulous attention to detail, the dbx 131s Graphic Equalizer offers exceptional sound and rugged reliability that guarantees you will always sound your best.
Sure to find a home in the studio, on tour and with installed sound venues, the dbx 131s Graphic Equalizer is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.
dbx 131s Graphic Equalizer Features
- Single 31-band, 1/3-octave Constant Q frequency bands
- Switchable boost/cut ranges of ±6 or ±12dB
- 12dB per octave, 3dB down @ 50Hz low-cut filter
- Front panel bypass switch
- ±12 dB input gain range
- 4-segment LED ladders for monitoring output levels

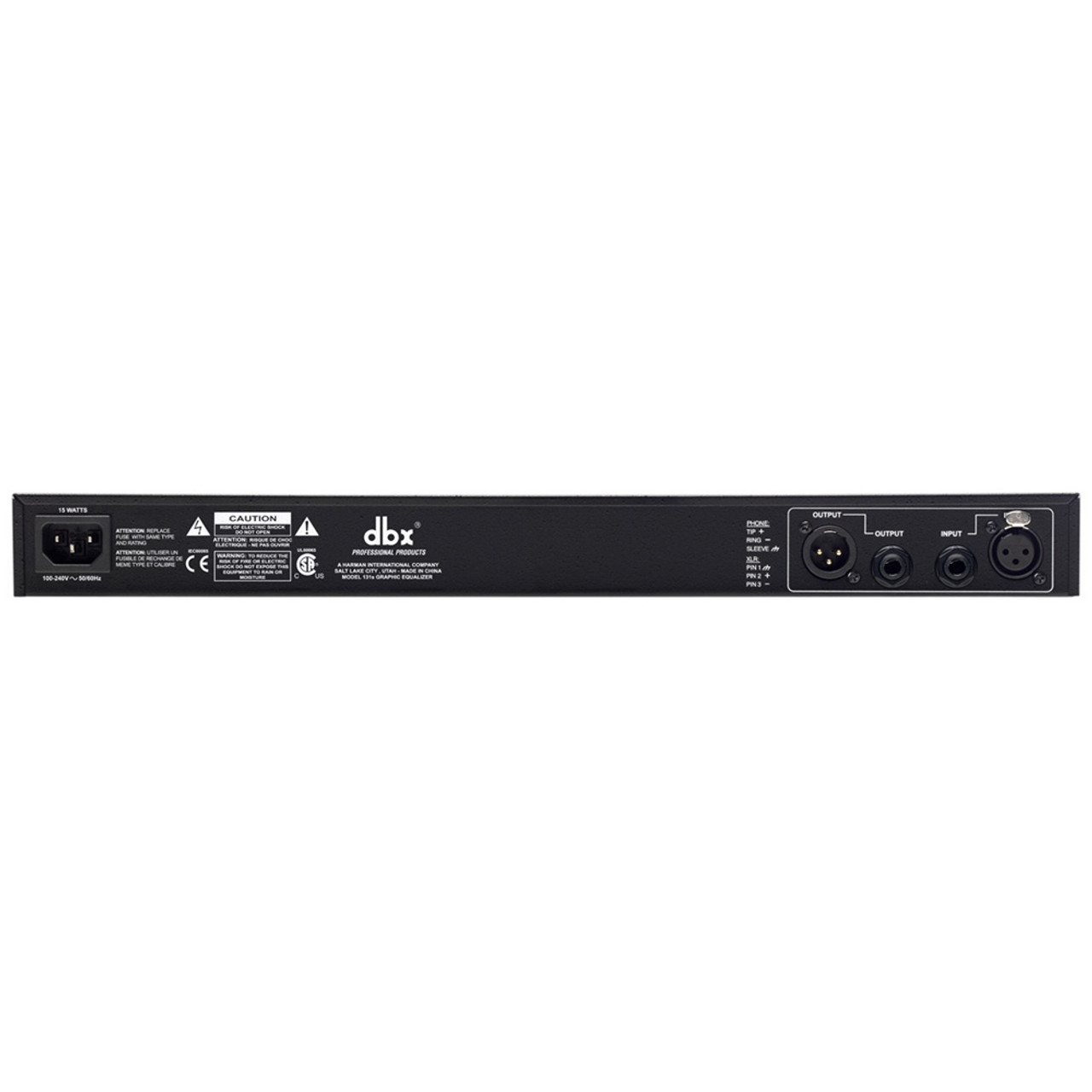

- XLR and TRS Inputs and Outputs
- Frequency Response of <10Hz to >50kHz
- Dynamic range of greater than 108dB
dbx 131s Graphic Equalizer Specifications
- Input Connectors: 1/4" TRS, female XLR (pin 2 hot)
- Input Type: Electronically balanced/unbalanced, RF filtered
- Input Impedance: Balanced 40k ohm, unbalanced 20k ohm
- Max Input: >+21dBu balanced or unbalanced
- CMRR: >40dB, typically >55dB at 1kHz
- Output Connectors: 1/4" TRS, male XLR (pin 2 hot)
- Output Type: Impedance-balanced/unbalanced, RF filtered
- Output Impedance: Balanced 100 ohm, unbalanced 50 ohm
- Max Output: >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
- Bandwidth: 20Hz to 20kHz, +0.5/-1dB
- Frequency Response: <10Hz to >50kHz, +0.5/-3dB
- Dynamic Range: Typically >112dB
- Signal to Noise Ratio: Typically >95dB
- THD+Noise: <0.003%
- Interchannel Crosstalk: <-90dB, 20Hz to 20kHz
- Bypass Switch: Bypasses the graphic equalizer section in the signal path
- Low cut Switch: Activates the 50Hz 12dB/octave high-pass filter
- Range Switch: Selects either +/- 6dB or +/-12dB slider boost/cut range
- Operating Voltage: 100-240VAC 50/60Hz
- Power Consumption: 15W
- Power Connector: IEC receptacle
- Net Weight: 4.8 lbs.(2.2 kg)
- Shipping Weight: 6.2 lbs.(2.8kg)
- Dimensions: 1.75" (4.4cm) H x 6"(15.24cm) D x 19" (48.26cm) W
dbx 131s Graphic Equalizer Includes
- dbx 131s Graphic Equalizer
- AC Power Cord
- Operation Manual
- Warranty Registration Card
- Four Rack Mount Screws And Washer
