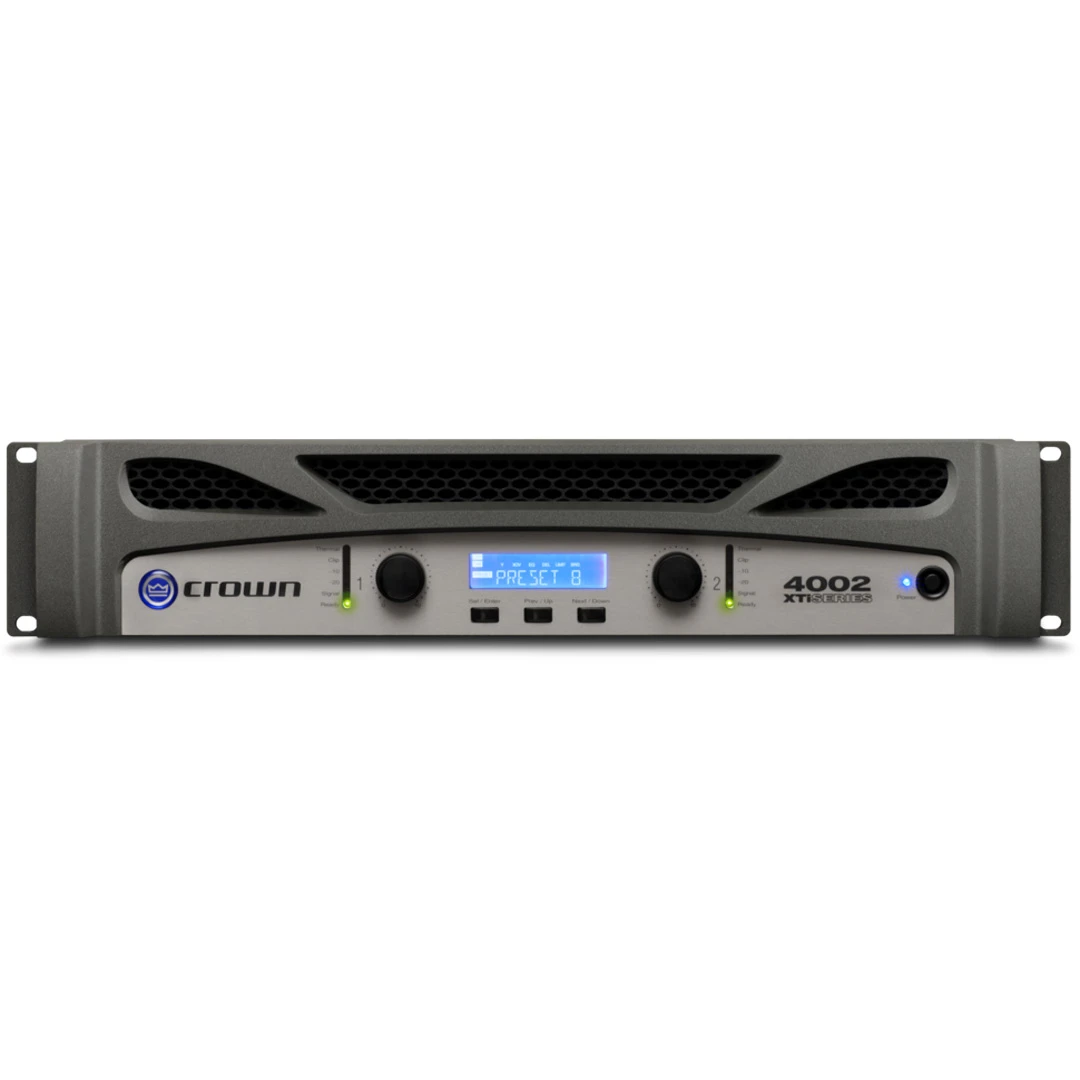

The Crown XTi 4002 Power Amplifier combines serious output power, flexible onboard DSP, and road-ready Crown reliability in a compact 2U design built for demanding portable PA and installed sound systems.
Delivering up to 1600 watts per channel at 2 ohms, the XTi 4002 gives live sound professionals the muscle needed to drive high-performance loudspeaker systems while providing sophisticated processing and protection tools right inside the amplifier. Designed to simplify system configuration without sacrificing control, the XTi 4002 features Crown's Peakx Plus limiters for precise management of threshold, attack, and release parameters. An enhanced Subharmonic Synth section provides adjustable frequency, gain, and filter type, making it easy to tailor low-frequency enhancement to the system and application. With 50 onboard presets, including 49 user-definable locations, the amplifier can quickly adapt to different speaker configurations, venues, and system requirements. The XTi 4002 also provides useful system monitoring and operational controls for professional environments. Three selectable fan modes let users balance cooling performance with application requirements, while compatible HiQnet software provides visibility into parameters including AC line voltage and power supply temperature. Integrated cast-aluminum handles, a locking power cord clip, and a manageable 18.5-pound chassis help make the Crown XTi 4002 a capable choice for touring racks, mobile PA systems, houses of worship, performance venues, and other professional sound reinforcement applications.
Crown XTi 4002 Power Amplifier Features
- Two-channel professional power amplifier designed for portable PA and sound reinforcement applications
- Peakx Plus limiters provide adjustable threshold, attack, and release control for system protection
- Enhanced Subharmonic Synth provides user control over frequency, gain, and filter type
- Three user-selectable fan modes include Normal, Early, and Fullspeed operation
- System monitoring provides software visibility of AC line voltage and power supply temperature
- 50 onboard presets with 49 user-definable preset locations
- HiQnet-compatible control software provides expanded system configuration and monitoring
- Integrated cast-aluminum handles improve durability and ease of handling
- Locking power cord clip helps maintain a secure AC connection
- Compact 2U rackmount design is well suited for portable and installed systems
Crown XTi 4002 Power Amplifier Specifications
- Channels: 2
- Sensitivity: 1.4V
- Rated Power Output (Per Channel): 1600W 2O, 1200W 4O, 650W 8O
- Signal to Noise Ratio (Below Rated 1 kHz Power at 8 ohms): 100 dB (A-weighted)
- Total Harmonic Distortion: < 0.5%
- Frequency Response (at 1W, 20 Hz - 20 kHz): + 0 dB, -1 dB
- Crosstalk (Below Rated Power) 20 Hz to 1 kHz: >70 dB
- Dimensions: 3.5" x 19" x 12.25"
- Weight: 18.5 lbs (8.4 kg)
- Shipping Weight: 21.5 lbs (9.8 kg)
- IEC Power Connector: 15A
Crown XTi 4002 Power Amplifier Includes
- Crown XTi 4002 Power Amplifier
- Power Cable
- User Manual
- Manufacturer Warranty
