The Crane Song Trakker Compressor is a high quality Single Channel Discrete Class A Compressor-Limiter. Functioning either as a musically transparent compressor or as a vintage compressor-limiter, the Trakker can create distinct new sounds or maximize existing ones.
The Crane Song Trakker Compressor has adjustable threshold, attack, release, knee shape, and makeup gain controls. In addition to these controls, a function switch allows the selection of transparent operation or vintage operations such as optical, air optical, soft knee, and hard knee - each with four different amplifier/gain control sounds. The amplifier/gain control sounds are Transparent, Vintage (tube or old style class A), Transparent with VCA artifacts and Vintage with VCA artifacts.

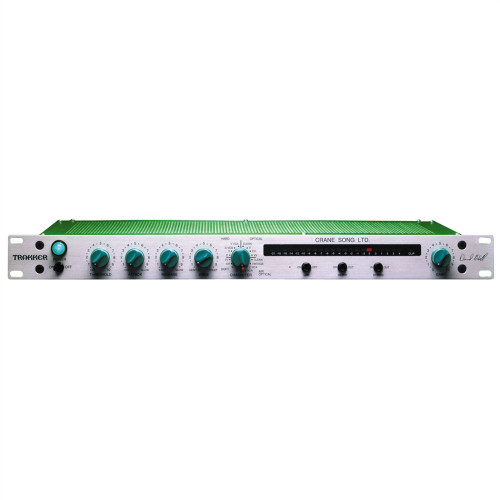

The front panel contains a 22 element VU meter with over load indicator to show gain reduction and allow accurate monitoring of output levels. In the link mode the master unit controls all functions of the slave units except for make-up gain. An additional feature of the Crane Song TRAKKER is the ability to link up to 8 units for surround mixing.
The Crane Song TRAKKER is a maximum-versatility toolkit for solving real-world recording, broadcast, and sound reinforcement problems with the utmost attention to signal quality. From single channel operation to bus compression, the Crane Song TRAKKER can provide an artistic choice of sounds at the flip of a switch.
Crane Song Trakker Compressor Features
- High quality Single Channel Discrete Class A Compressor-Limiter
- Functions either as a musically transparent compressor or as a vintage compressor-limiter with selectable hard or soft knee
- Maximum-versatility toolkit for solving real-world recording, broadcast, and sound reinforcement problems with the utmost attention to signal quality
- Adjustable threshold, attack, release, knee shape, and makeup gain controls
- Function switch allows the selection of transparent operation or vintage operations
- Amplifier/gain control sounds are Transparent, Vintage (tube or old style class A), Transparent with VCA artifacts and Vintage with VCA artifacts
- Front panel contains a 22 element VU meter with over load indicator
- Ability to link up to 8 units for surround mixing
Crane Song Trakker Compressor Specifications

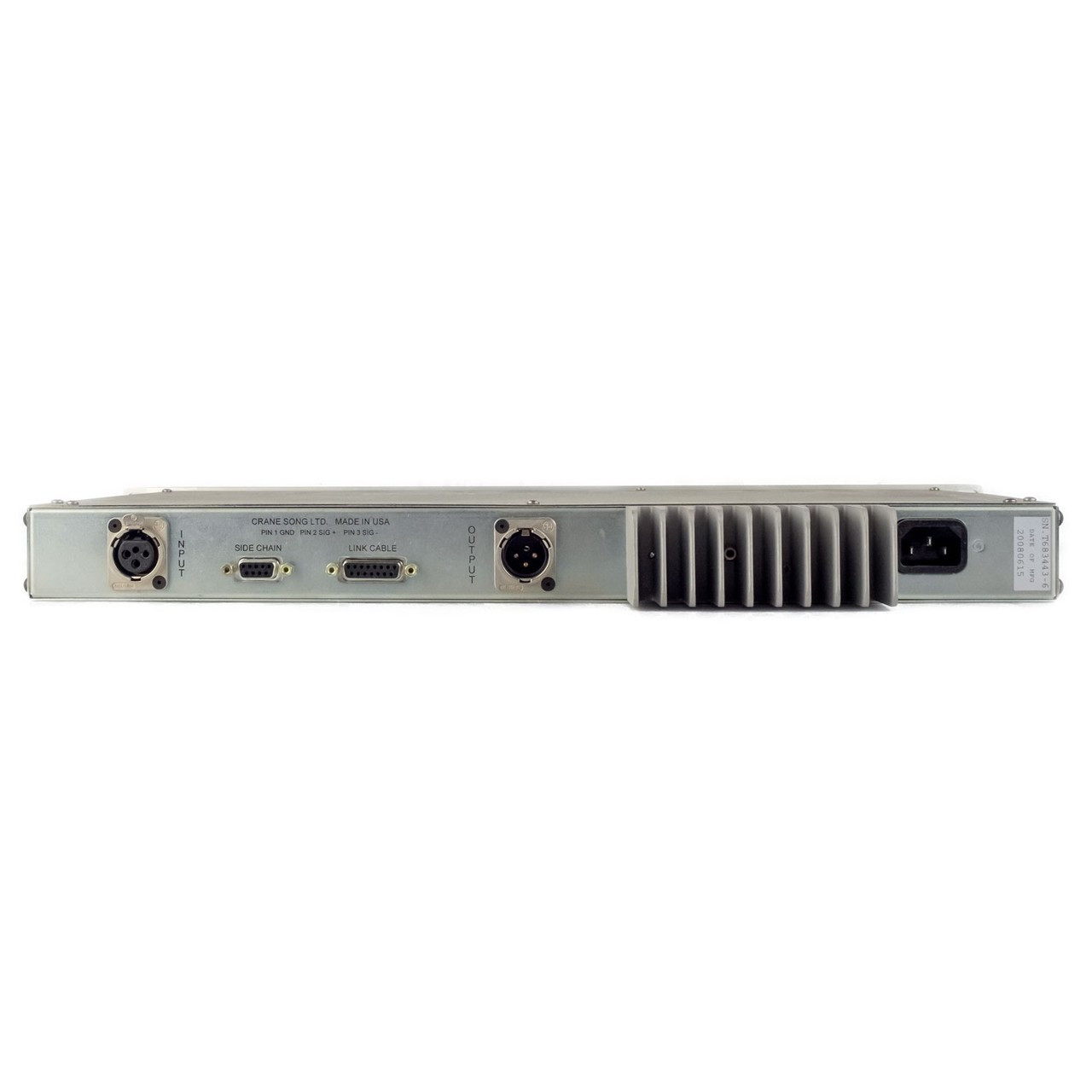

- Input:
- Type: Floating, Balanced
- Maximum Input Level: +25 dBm
- Connectors: XLR; Pin 2 is Sig + , Pin 3 is Sig. , Pin 1 is GND
- Output:
- Type: Floating, Balanced
- Maximum Output Level: +25 dBm
- Connectors: XLR; Pin 2 is Sig + , Pin 3 is Sig. , Pin 1 is GND
- Side Chain Connections:
- Type: Floating, Balanced
- Balanced Connections: Made by Using a DB-9 Male Connector (Loop Insert, Must be Normaled Back to TRAKKER
- Unbalanced Connections: Made by Tying the SIG Pin to the GND Pin
- Connection as Input: Tie at the Signal Source
- Connection as Output: Tie at the TRAKKER XLR Connector
- Power: 100, 120, 230,240 volt; 50/60 Hz; 45 watts
- Fuse Types: MDL .4A Fuse for 100V & 120V, MDL .2A Fuse for 230V & 240V
- Pilot Lamp: # 7335
- Shipping Weight: 19 lbs. (8.6 kg)
- Depth Behind Panel: 10 Inches Plus Cabling
- Panel Height: 1 Rack Space
Crane Song Trakker Compressor Includes
- Crane Song Trakker Compressor
