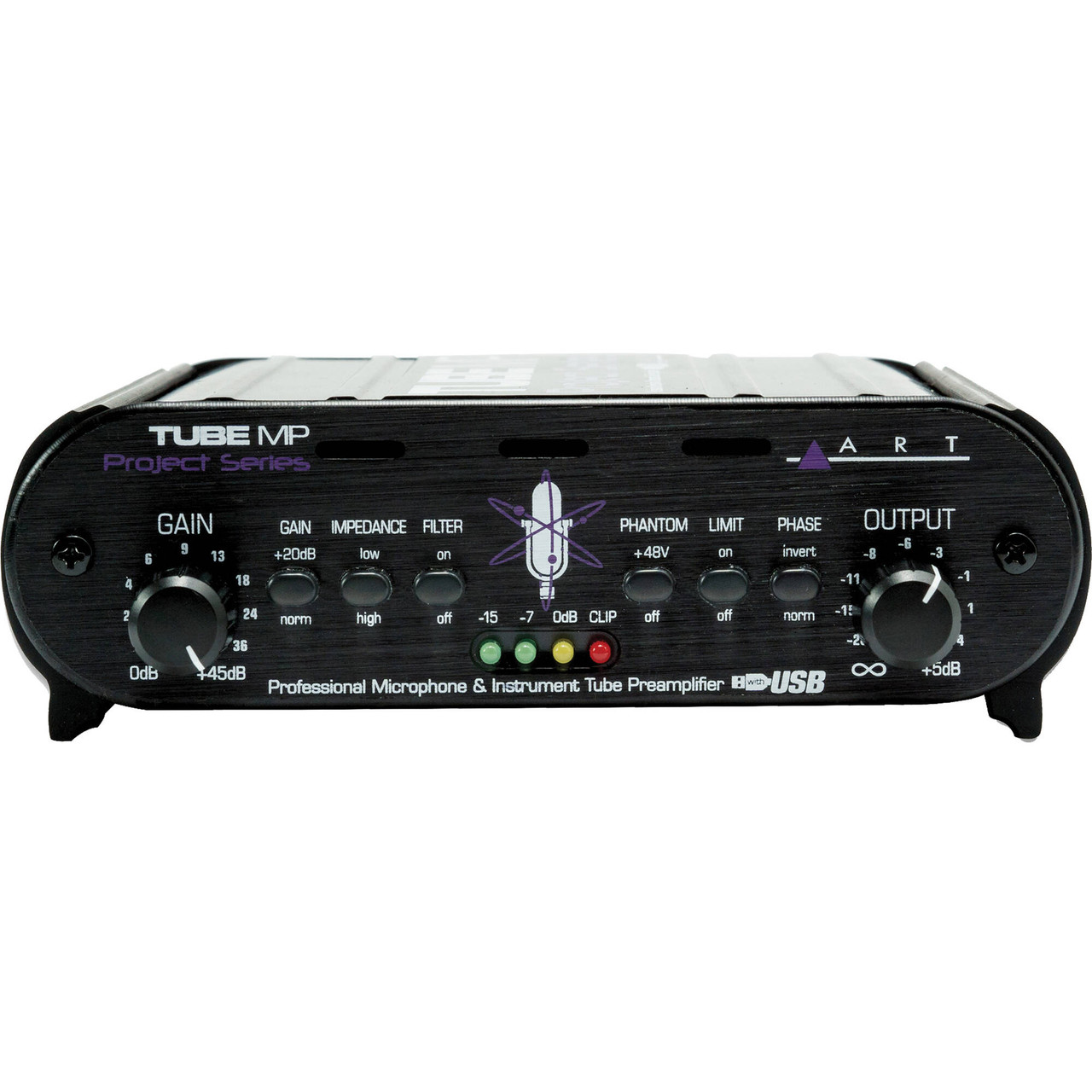

ART Tube MP Project Series USB Tube Preamp

The ART Tube MP Project Series USB Tube Preamp is a professional quality audio interface that lets you connect microphone, instrument, and line level signals to audio inputs to digital audio workstations as well as standard analog devices.

The ART Tube MP Project Series USB Tube Preamp is a compact, reliable, and cost effective product. From the all-aluminum stackable chassis to the precision LED level metering circuitry, the ART has improved virtually every aspect of their already successful Tube MP series and added USB connectivity.

USB (Universal Serial Bus) is a common hardware interface used for quick and easy connection of peripherals like the ART USB Tube MP.

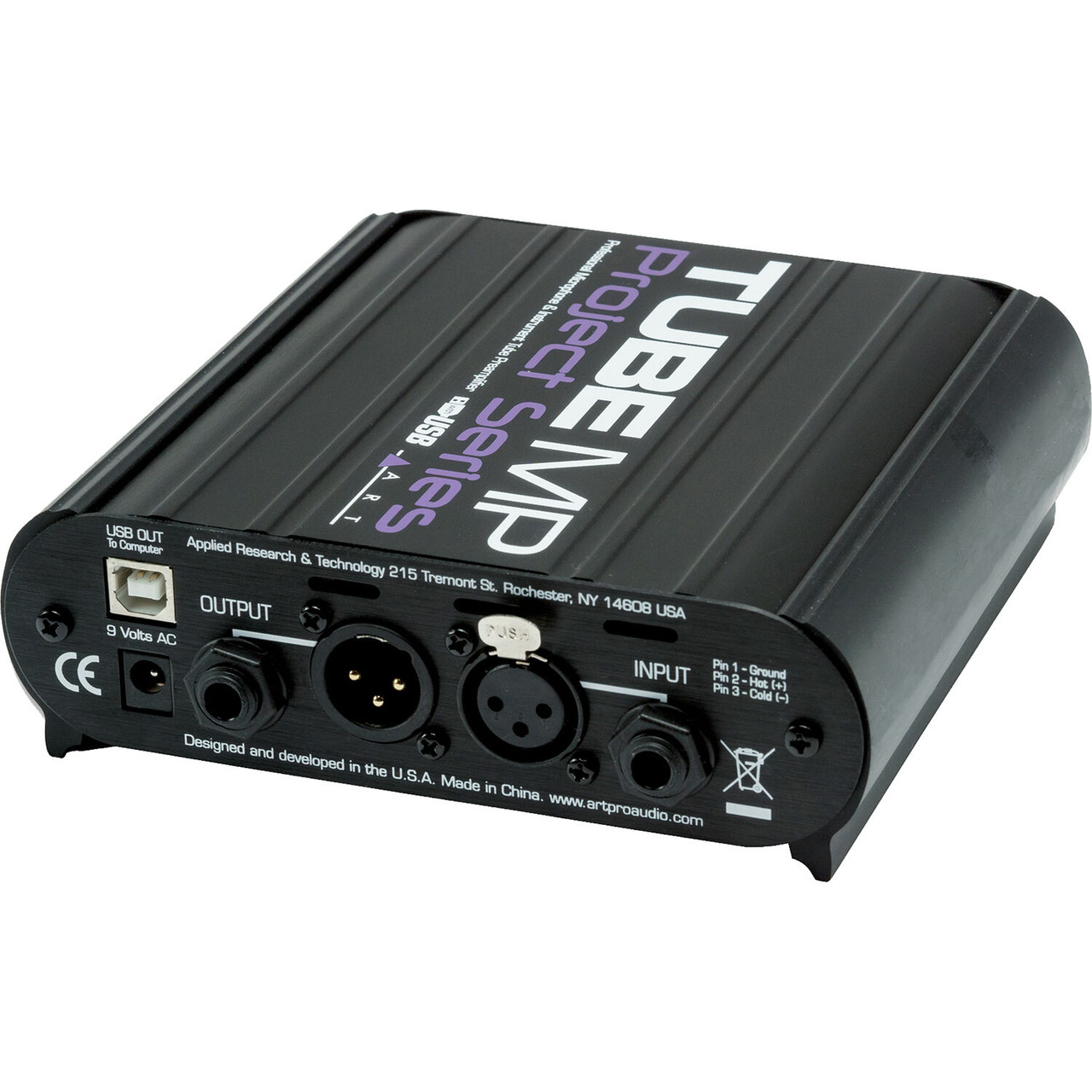

The ART Tube MP features a single Type B USB peripheral connector on the rear panel for outputting audio over USB to your computer. One of the nice features of USB is its Hot Swapping capability, allowing the ART Tube MP to be connected and disconnected without turning your computer off. The ART USB Tube MP is fully USB 1.1 compliant, operating under Windows 98SE/ME/2000/XP/Vista, as well as Mac OS 9.1 or newer.

The new ultra low noise discrete microphone preamp front end has an extremely flat and wide frequency response and handles a wide range of input signal levels with a minimum of coloration.

ART Tube MP Project Series USB Tube Preamp Features

  • USB interface output
  • Extremely low noise discrete front end
  • Up to 70dB of clean, "musical" gain
  • High output signal drive capability
  • Fast FET limiter to prevent overload
  • Switch selectable input impedance
  • Precision LED metering
  • Built-in low noise phantom power supply
  • Compact, stackable all aluminum chassis
  • XLR and 1/4" inputs and outputs
  • Phase invert switch
  • High cut filter switch
  • Variable input and output controls
  • Windows 98SE/ME/2000/XP/Vista compatible
  • Compatible with Mac OS 9.1 and newer

ART Tube MP Project Series USB Tube Preamp Specifications

  • Frequency Response: 10Hz – 40KHz, +/-1 dB (typical)
  • Dynamic Range: >100dB (20Hz to 20KHz)
  • THD: <0.05% (typical)
  • CMRR: >60dB (typical)
  • EIN:
  • Max. Input Level: +17dBu (1/4”), +16dBu (XLR)
  • Max. Output Level: +20dBu (1/4”), +26dBu (XLR)
  • Input Connections: 1/4” TRS unbalanced (1meg Ohm), XLR female balanced
  • Output Connection: 1/4” TRS unbalanced (600 Ohm), XLR male balanced, (
  • Max. Gain: 0dB (XLR - XLR), +50dB (1/4”- XLR)
  • Input Gain Pad: Switchable, 20dB
  • XLR Input Impedance: Switchable, 4.7k Ohms / 600 Ohms
  • Low Cut Filter: Switchable, -3dB @ 40Hz
  • Output Phase: Switchable, Normal/Invert
  • Output Limiter Type: Switchable, Fast & Musical FET limiter, >20dB limit range
  • Phantom Power: Switchable, +48V DC, filtered, current limited
  • Signal Metering: Precise LED array with a fast attack and moderate release
  • Tube Type: 12AX7A hand selected
  • Chassis Type: Aluminum Anodized with integral/stackable rubber sides
  • Power Requirements: 10Volts AC @ 700mA (typical)
  • Dimensions: 1.75”H x 5.9”W x 6.5”D (44.5mm x 150mm x 165mm)
  • Weight: 2.5 lbs. (1.14 kg)

ART Tube MP Project Series USB Tube Preamp Includes

  • Tube MP Project Series USB Tube Preamp
  • Owners Manual
  • 1 Year Warranty
