Allen & Heath AB-168 Stage Box

(1 review) Write a Review
Product Code: 9999-16696
Allen & Heath AB-168
We Need A Few Days

This item must be ordered in from the manufacturer. Give us a few days to get it here and heading your way. Go ahead and place your order and we will let you know as soon as it ships. If you have a deadline then please contact us before placing the order so we can meet your expectations.

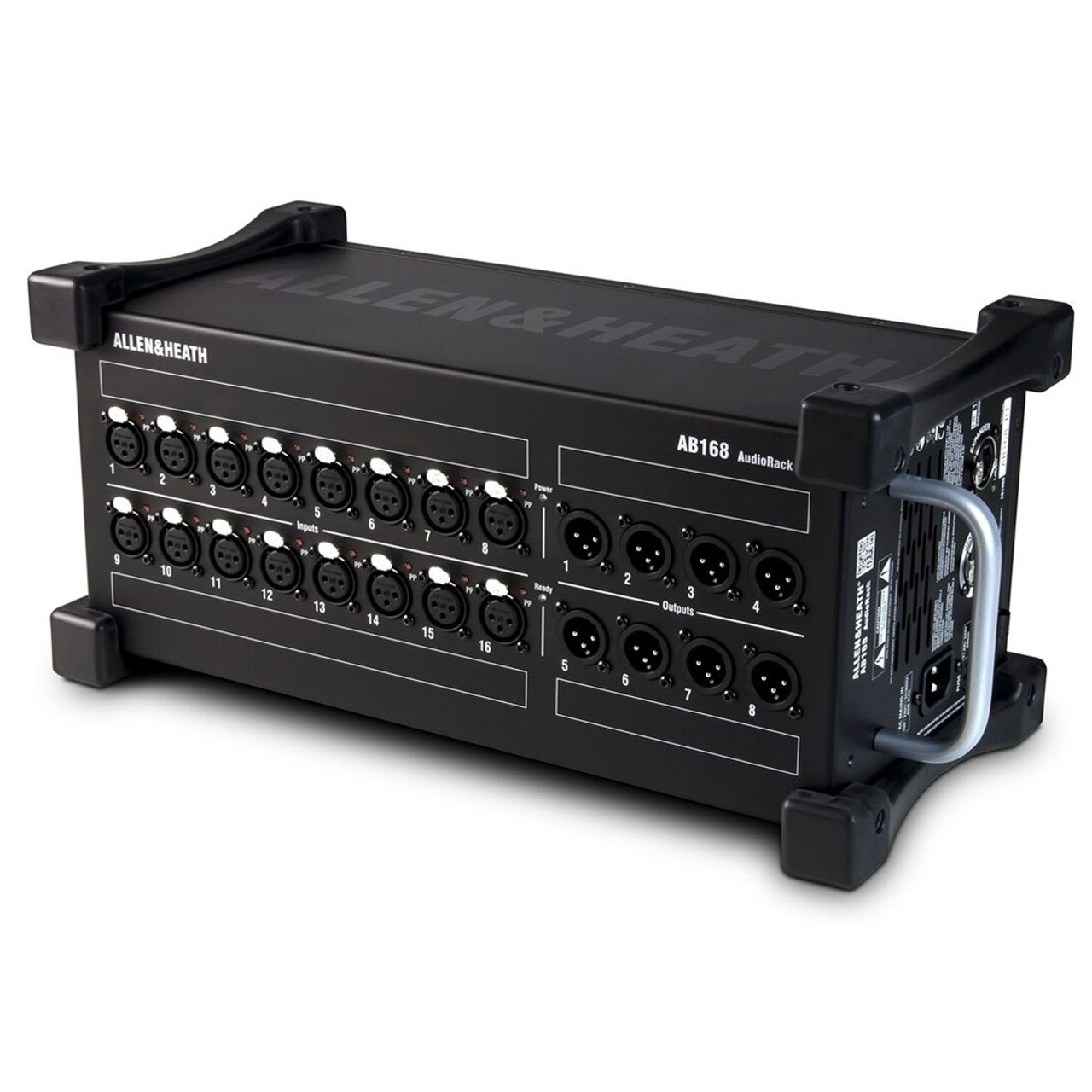

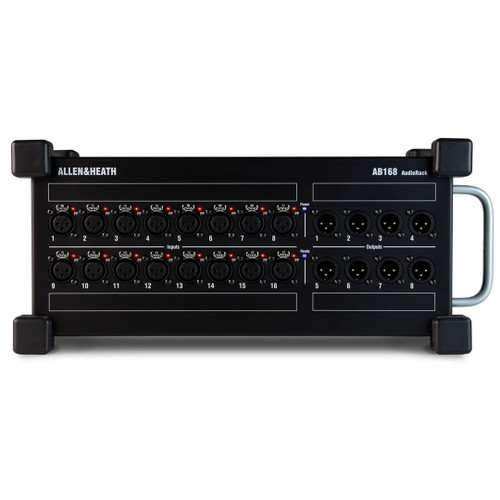

Allen & Heath AB-168 Stage Box

The Allen & Heath AB-168 Stage Box is a 48kHz portable remote AudioRack for use with the GLD, Qu and SQ mixers. Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB-168 runs on Allen & Heath’s proprietary dSNAKE protocol and is compatible with both the Qu and GLD ranges.

The Allen & Heath AB-168 Stage Box is a portable remote audio rack for a digital mixing system. Adding the Allen & Heath AB-168 Stage Box to a compatible system allows some or all I/O to be positioned up to 100m from the mixer. The unit connects over a single Cat5 cable to the Qu/GLD mixer or AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another Allen & Heath AB-168 box or connection of a ME personal mixing system. The Allen & Heath AB-168 auto updates its firmware to synchronise with the system.

The rack’s rugged design, including rubber bumpers, renders it highly roadworthy and allows it to be placed on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, Allen & Heath AB-168 is also designed for maximum convenience and portability. An optional rack mounting kit (AB-168RK-10) is also available.

Allen & Heath AB-168 Stage Box Features

  • 48kHz
  • 16 Mic Preamps
  • 8 XLR Line Outs
  • Expander port for daisy-chaining of 2 AB168 Expanders or connection ME personal mixers
  • Optional 19-inch rack mount kit available (Allen & Heath AB-168RK-10 Rack Mount Kit)
  • Compatible with CAT5e (or higher) cables of up to 100m
  • Rubber bumpers
  • Carry handle

Allen & Heath AB-168 Stage Box Specifications

  • Inputs:
    • XLR Mic/Line Inputs: Balanced
    • Mic/Line Preamp: Fully Recallable
    • Input Sensitivity: -60 to +15dBu
    • Analogue Gain: +5 to +60dB, 1dB Steps
    • Pad: -20dB
    • Maximum Input Level: +32dBu
    • Input Impedance: >4kil (Pad Out), >10kohm (Pad In)
    • Mic/Line Channel Noise: 20-20kHz, Direct Out @ Unbalanced Out
    • Mic EIN: -127dB with 150? Source
    • Unity Gain (Pad In): -90dBu
    • Low Gain (5dB, Pad Out): -93dBu
    • Mid Gain (30dB, Pad Out): 89dBu
    • Mic/Line Channel THD+N: 20-20kHz, Direct Out @ Unbalanced Out
    • Unity Gain (Pad In): 0.005% -86dBu c 1kHz, 0dBu Output
    • Low Gain (5dB, Pad Out): 0.003% -89dBu @ 1kHz, 0dBu Output
    • Mid Gain (30dB, Pad Out): 0.004% -88dBu @ 1kHz, 0dBu Output
  • Outputs:
    • XLR Outputs: Balanced, Relay Protected
    • Output Impedance: <750
    • Nominal Output: +4dBu = 0dB Meter Reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -91dBu (Muted, 20-20kHz)
    • Operating Temperature: 0 deg C to 35 deg C / 32 deg F to 95 deg F
    • Mains Power: 100-240V, 50/60 Hz, 20W Max
    • Weight: 4.80Kg

Allen & Heath AB-168 Stage Box Includes

  • Allen & Heath AB-168 Stage Box
  • Power Cord
  • User Guide
  • 1 Year Warranty

Allen & Heath AB-168 Stage Box Downloads

Click here to view all Allen & Heath products

1 Review Hide Reviews Show Reviews

  • 5
    Super quick and small footprint

    Posted by Debzdoodles on Aug 24th 2017

    I use this with either my QU PAC to expand to 32 channels or my QU16 as stage box. I love not having to mess with 16 xlr channel inputs - I can just connect cat5 cable and I&#039;m done. Physical size is perfect - I just place in front of or behind drums. Also extends number of mixes which is helpful if more than 3 stereo mixes are required for iem or wedges. Great buy.
