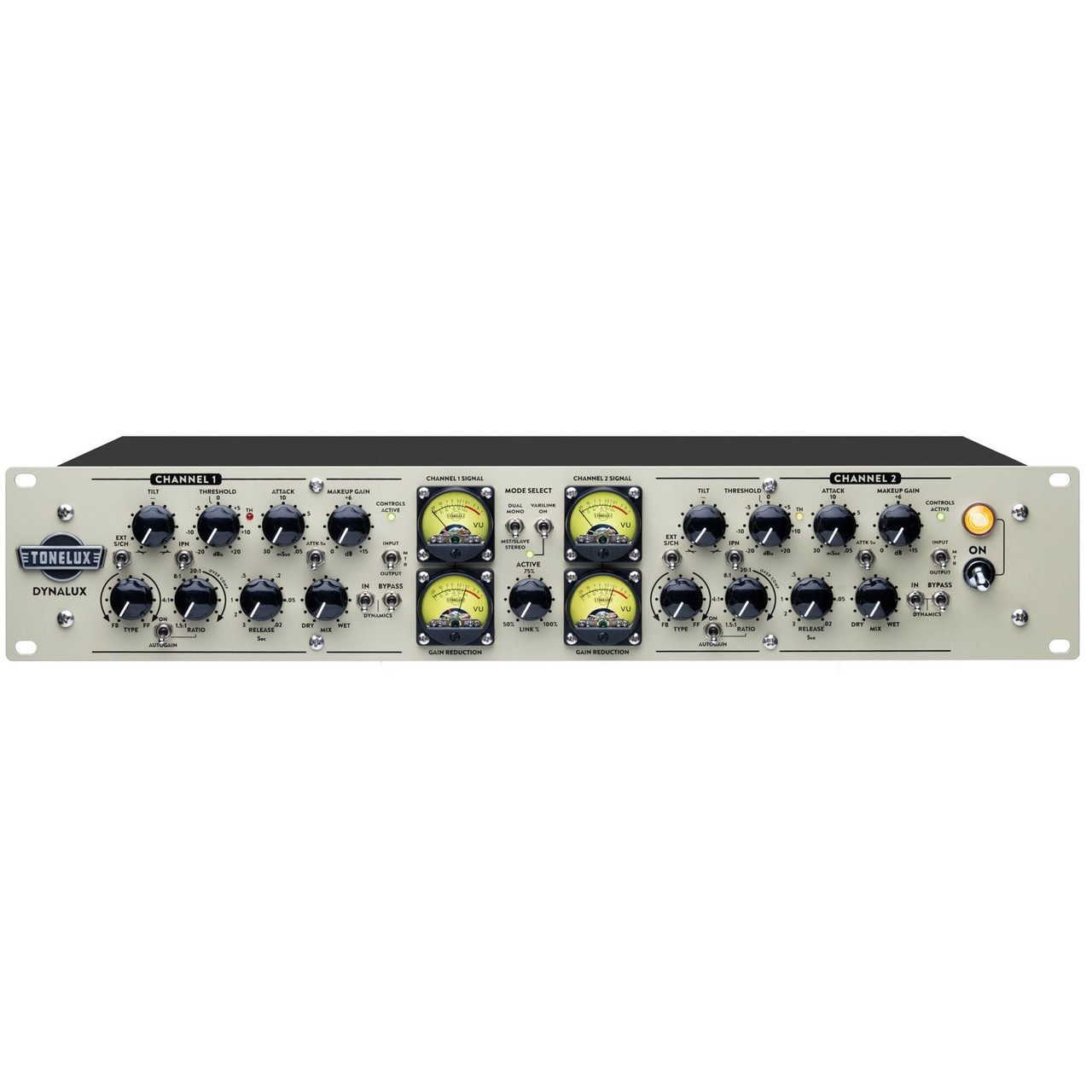

Tonelux Dynalux Compressor

The Tonelux Dynalux Compressor is a high-performance, dual-channel analog rackmount compressor designed in part by Paul Wolff and perfected by the Tonelux design team engineers.

The Tonelux Dynalux is a high-performance, dual-channel analog rackmount compressor designed in part by Paul Wolff and perfected by Tonelux engineers. Built with Tonelux’s proprietary all-discrete circuitry, the Dynalux combines precision dynamics control with flexible tonal shaping, making it an indispensable tool for both tracking and mixing. At its core, the Dynalux features the TX-240 discrete op-amps, TX-260output stage, and TX-100 transfromers, combiniing to delivery the signature Tonelux clarity and punch. Its unique TYPE control blends classic feedback and modern feed-forward compression styles, while the onboard Wet/Dry mix knob provides true in-module parallel compression. A dedicated Tilt™ side-chain EQ lets you tame low-frequency pumping and add high-frequency presence without compromising dynamics.

Complex issues with compression
The Dyanlux is the stereo channel that addresses the complex issues with compression. With the ability to do in-module parallel mixing of the dry signal and the compressed signal, the engineer can now enjoy the parallel or “side chaining” of an instrument with itself and come up with the perfect blend of the original and compressed signal without the problems associated with in-the-box latency.

Feedback/feed-forward Type control
In addition to the MIX knob, the Dynalux has many other unique features not found on any compressor made today. The ability of being able to switch between feedback and feed-forward compression is something that is not new to Tonelux. However, we decided to take it one step further by providing the ability to fade between feedback compression and feed-forward compression with the TYPE control. This feature gives the engineer the freedom to combine the smooth nature of the Feed Back type of compression with the aggressive effect of Feed Forward compression.

RATIO control
In addition to the feedback/feed-forward Type control, the Dynalux can over compress with the RATIO control, which allows compression ratios from 1.5:1 to 20:1, and then beyond, with the “OVER:” ratio setting. Taking the ratio into the “OVER:” area of the RATIO control, will cause the compressor to reduce the gain at a higher ratio than the gain that is going into it. This means that the ratio control allows the compressor to compress an increase in signal of 10dB with a gain reduction of up to -8dB. Meaning if the signal goes up 10dB, the output will go down 8dB. To compensate for over compression there is a switchable Auto Makeup gain system that keeps the gain at unity regardless of the amount of compression. Manual MAKE UP gain is also available to compensate with overall output level adjustments. This becomes useful when taking a pre compressed snare for instance, and by adjusting the Attack control and setting the Ratio control in the "OVER":area, you can recover the initial impact peak of the snare. This, with the MIX control, can then be blended with the original “flat” snare and you now have a dynamic snare sound once again, but with a very controlled peak.

Inverse Power Noise
The Dynalux also inserts the now famous “TILT” and new IPN (Inverse Power Noise) control into the side chain of the RMS detector, so you can increase the highs and decrease the lows going into the RMS detector, virtually eliminating the effects of pumping because the detector is seeing a more uniform distribution of energy across the spectrum instead of a bass heavy signal like most compressors and with the IPN filter equalizing the signal to the RMS detector, so it "hears" lik the human ear.

Tonelux Dynalux Compressor Features

• Signature Tonelux Sound: Proprietary Tonelux TX-240 op-amp, TX-260 output, and TX-100 transformer for rich, detailed tone.
• Hybrid Compression Styles: TYPE control blends feedback warmth with feed-forward precision.
• Parallel Power: Built-in Wet/Dry MIX knob for instant in-module parallel compression.
• Smart Side-Chain EQ: Tonelux Tilt™ filter keeps bass tight and highs open. An IPN filter to have the detector "hear" like a human ear.
• From Gentle to Extreme: Ratios from 1.5:1 to 20:1, plus “Over” mode for explosive transient shaping.
• Dial In Your Dynamics: Ultra-fast to slow attack/release options with automatic makeup gain.
• Stereo Linkable: Linkable for 2-channel use with adjustable link control.
• Extensive Metering: 4 VU meters onboard for monitoring gain reduction, and selectable input or output levels.

Tonelux Dynalux Compressor Specifications

• Two separate channels of compression housed in 2U Rack unit
• Completely discreet design with special Tonelux op amps
• Transformer Output: Not in BYPASS mode
• External Sidechain inputs for each channel
• Sidechain TILT and IPN Filters
• Variable Threshold from -20VU to +20VU
• Variable Ratio levels from 1.5:1 to 20:1 to Over Compress with Autogain selectable
• Variable Attack and Release
• Transition of feed-forward and feed-back compression
• Wet/Dry Mix Control and Gain Make-Up control for Parallel Compression
• Dual Mono: Stereo Mode Compression
• Variable Link (VARILINK) compression control between Channel 1 and 2
• Dual Analog VU Meters per channel: Input/Output (Selectable) and Gain Reduction
• Bypass switch: allows Input to Output direct connection, default on power outage
• Quiescent Noise <-95dBu (Dynamics OUT and not Bypassed)
• Self -Noise in compression <-92dBu (Dynamics IN and not Bypassed)
• Frequency Response @-3dBu: <5 Hz to 70 KHz

Tonelux Dynalux Compressor Includes

• Tonelux Dynalux Compressor
• Power Cable
• Manufacturer Warranty
