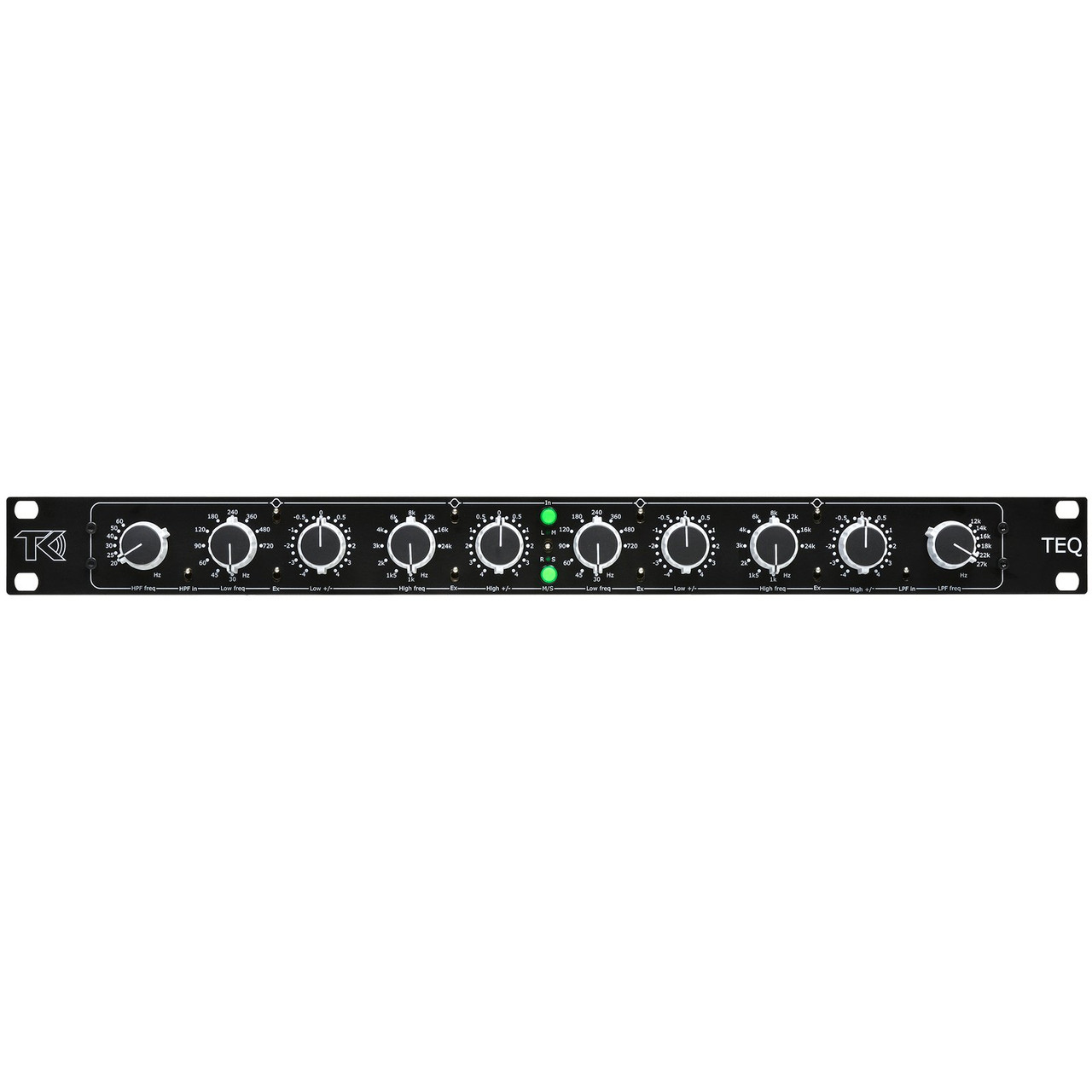

The TK Audio TEQ Dual Mono Baxandall Equalizer is a precision-crafted, musical EQ inspired by the classic Baxandall designs of the 1950s - favored by engineers for their smooth, natural, and highly transparent sound.
Designed for critical mixing and mastering applications, the TEQ combines extended frequency control, ultra-fine gain resolution, and modern workflow enhancements to deliver exceptionally refined tonal shaping without sacrificing clarity or headroom. Whether used on individual tracks, buses, or full mixes, the TEQ excels at subtle enhancement and elegant correction. Each channel features two fully independent bands with 10 selectable frequencies per band, switchable between peak and shelving modes. With 21-position rotary switches offering gain steps as fine as 0.25 dB, the TEQ allows incredibly precise adjustments—perfect for mastering-grade work. An extended range switch increases the maximum cut/boost to ±8 dB when more dramatic shaping is required. Additional high-pass and low-pass filters, Mid/Side processing, and a cue function for monitoring Left/Right or Mid/Side channels make the TEQ a versatile and powerful centerpiece for high-end analog workflows. Built with gold-contact switches, relay-selected frequencies, super-low noise circuitry, and no electrolytic capacitors in the audio path, the TEQ delivers exceptional transparency and reliability.
TK Audio TEQ Dual Mono Baxandall Equalizer Features
- Two bands with 10 frequencies each
- Peak/ Shelving select on each band
- Cut/boost with up to 0.25dB resolution
- Selectable extended cut/boost range up to +/-8dB
- HPF and LPF with 6 frequencies each
- M/S function
- Cue switch for monitoring of left/right or mid/side channels
TK Audio TEQ Dual Mono Baxandall Equalizer Specifications
- Input impedance: 20kohm
- Max input level: +27dBu
- Output impedance: 68 ohm
- Max output level: +27dBu
- Frequency response with cut/boost at 0dB: 20Hz-80kHz
- THD+N at 0dBu with cut/boost at 0dB: 0,0005%
- THD+N at +20dBu with cut/boost at +20dBu: 0,0005%
- S/N: 95dB
- Dynamic range: 122dB
- Power consumption: 11VA
- Voltage: 115v or 230v selected via an internal voltage selector.
TK Audio TEQ Dual Mono Baxandall Equalizer Includes
- TK Audio TEQ Dual Mono Baxandall Equalizer
- Power Cable
- Manufacturer Warranty
